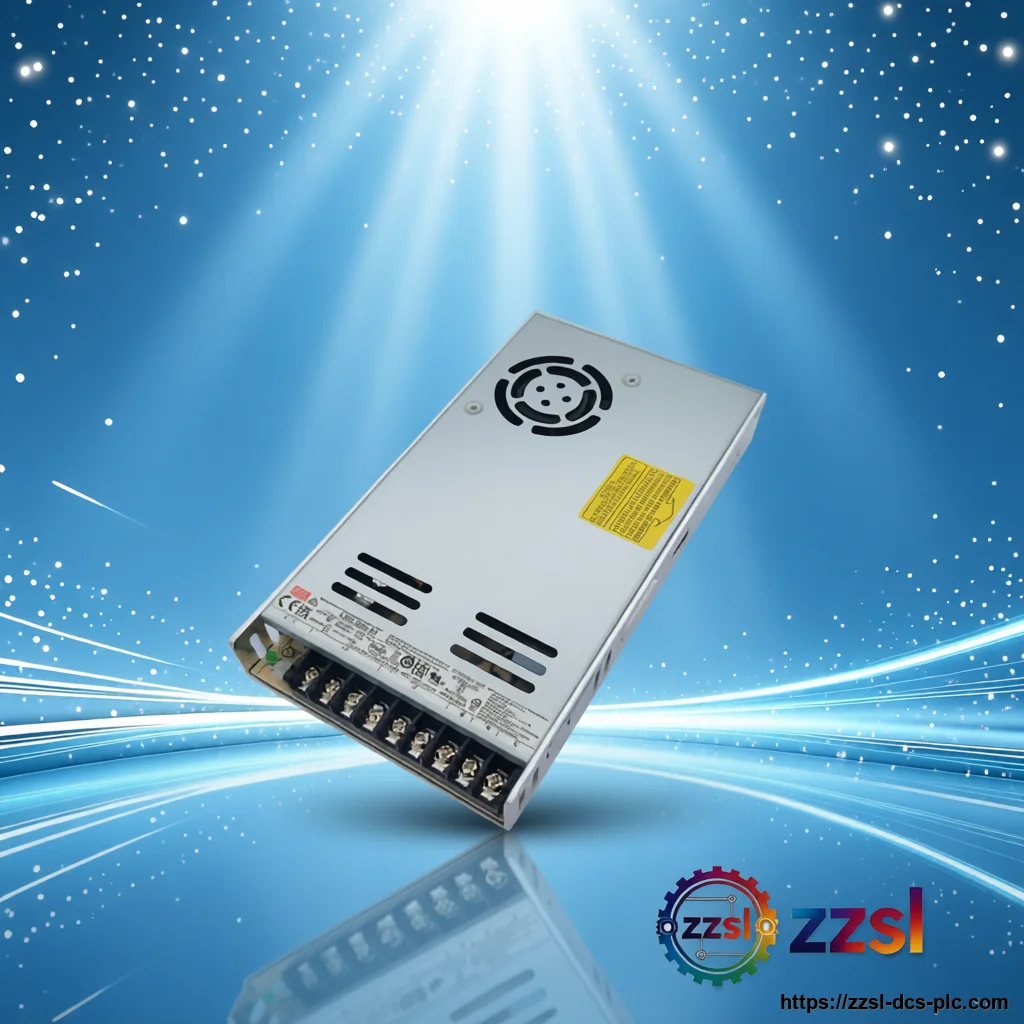

LRS-350-24

Product Description

It is part of the LRS-350 series, which is renowned for its compact size, high efficiency (up to 89%), and low power consumption. The unit accepts a universal AC input from 90 to 132VAC or 180 to 264VAC (selectable by switch) and provides a nominal output of 24V with a rated current of 14.6A. Its built-in active PFC function ensures compliance with harmonic current regulations, making it suitable for a wide range of industrial and commercial applications. The LRS-350-24 features a rugged metal case with a built-in cooling fan, ensuring reliable operation in ambient temperatures from -30°C to +70°C (with derating above 50°C). It offers comprehensive protection functions including short circuit, overload, over voltage, and over temperature protection. The power supply is designed with a no-load power consumption of less than 0.5W, contributing to energy savings in standby mode. Its compact dimensions (215 x 115 x 50mm) and lightweight design (1.06kg) make it easy to integrate into various equipment. This power supply is ideal for industrial automation systems, LED signage, electronic equipment, and other applications requiring a robust and efficient 24V DC power source. With its high reliability and long-life electrolytic capacitors (rated for 105°C), the LRS-350-24 ensures long-term stable performance. It is certified to UL, CUL, TUV, CB, CE, and EAC standards, guaranteeing compliance with international safety and electromagnetic compatibility requirements. The Mean Well LRS-350-24 is a 350W single output enclosed switching power supply that delivers a stable 24V DC output.

Basic Product Information

• Universal AC input 90-132VAC / 180-264VAC (selectable)
• Built-in active PFC function, PF>0.95
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection (no fan required)
• Compact size: 215 x 115 x 50mm (L x W x H)
• No-load power consumption < 0.5W
• LED indicator for power on
• 100% full load burn-in test
• Suitable for various applications with high reliability
• High efficiency up to 89% reduces energy loss

Technical Specifications

Version & Model Difference

The LRS-350 series includes models with different output voltages (e.g., 12V, 24V, 36V, 48V). The LRS-350-24 is the 24V version. Compared to older Mean Well power supplies like the S-350 series, the LRS series offers higher efficiency, lower no-load power consumption, and a more compact design. The LRS-350-24 also features a built-in active PFC, which the S-350 series lacks. Additionally, the LRS series uses a fanless design for models up to 150W, but the 350W model includes a built-in fan for cooling. The LRS-350-24 is a newer generation with improved performance and compliance with the latest energy efficiency standards.
