EDR-120-24

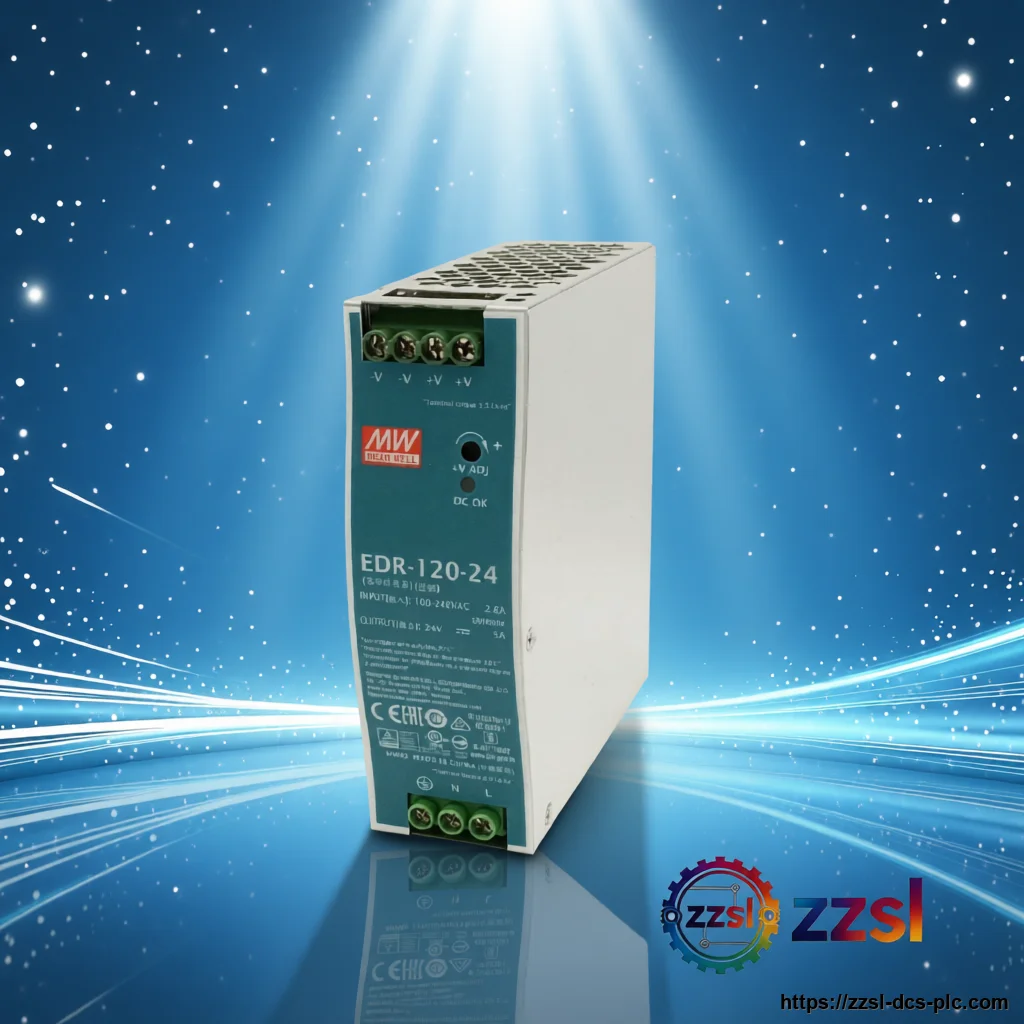

Mean Well AC-DC DIN rail power supply EDR-120-24
Mean Well
Mean Well AC-DC DIN rail power supply EDR-120-24
['Home', 'Power Supplies', 'MEAN WELL DIN Rail', 'EDR-120', 'EDR-120-24'] Need Mean Well EDR-120-24? AC-DC DI…
Specifications
| Brand | MEAN WELL |
|---|---|
| Model Number | EDR-120-24 |
| Official Product Name | Slim DIN Rail Power Supply |
| Applicable System | Industrial control / Factory automation |
| Product Type | AC-DC DIN rail power supply |
| Equivalent Standard | UL 508 / EN 62368-1 |
| Product Status | Active |
| Output current | 5 A |
| Output power | 120 W |
| Output adjust range | 24 to 28 V |
| Input voltage | 90-264 V AC (127-370 V DC) |
| Efficiency | 87.5 % |
| Ripple and noise | 120 mVp-p (max) |
| Operating temperature | -20 to +60 degC (derating) |
| Dimensions (W x H x D) | 40 x 125.2 x 113.5 mm |
| Weight | 0.6 kg (typical) |
| Output voltage | 24 V DC |
Product Description
Basic Product Information
- Slim 40 mm width for space-saving panels
- Universal 90-264 V AC input
- Protections: short circuit, overload, over voltage, over temperature
- 2-year warranty, UL 508 approved, DC-OK LED
- 120 W output, 24 V DC at 5 A
Technical Specifications
Version & Model Difference
- ['EDR-120-24 (24 V) vs EDR-120-12 / EDR-120-48: same slim frame, different output voltage.', 'EDR is the economy slim line vs the wider NDR series; verify load current before substitution.']
Application Scenarios
- Control panels and PLC power
- Packaging and conveyor lines
- Building automation and instruments
