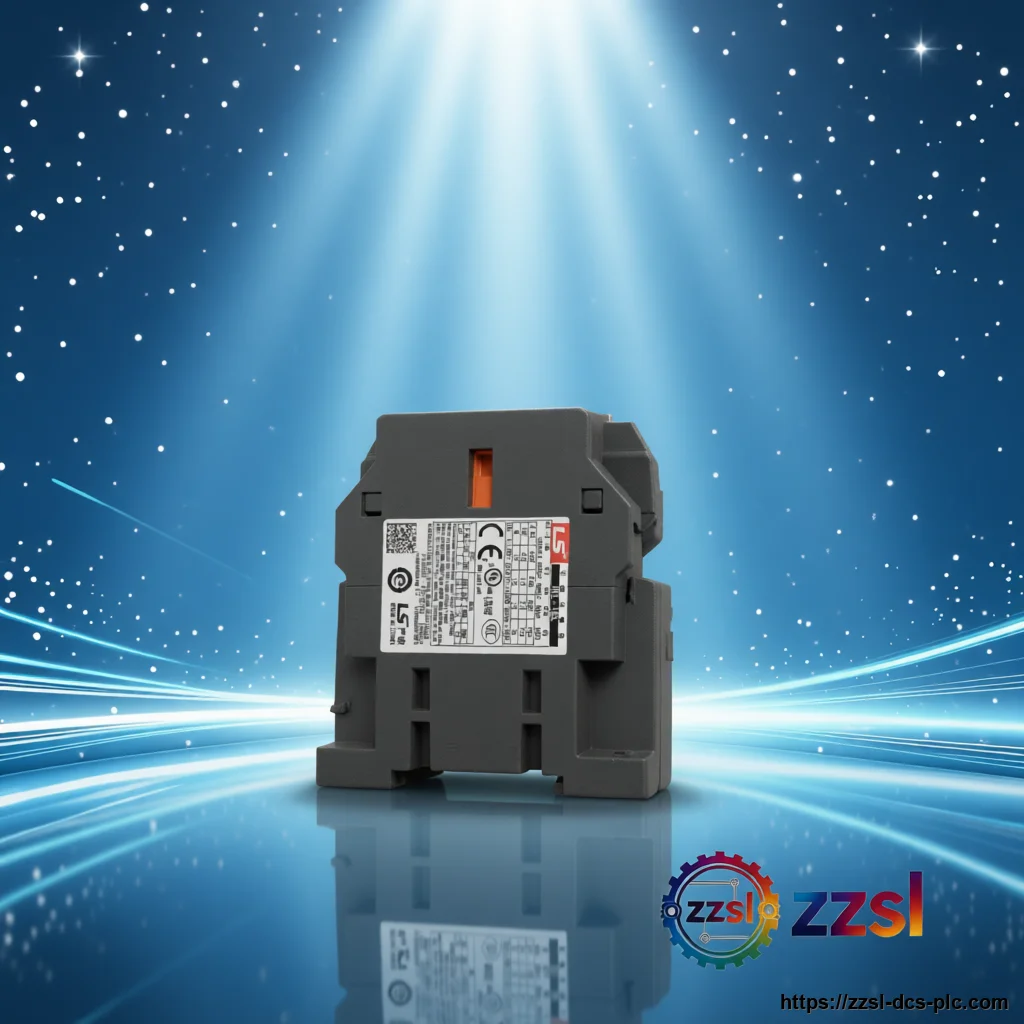

LS Contactor Coil MC-9b-AC220V
Home > Products > LS > MC Coil Need LS MC-9b-AC220V? Contactor Coil for LS MC-9b series magnetic contactors. Supplied with full traceability and docum…
Contact us for current availability and best price of MC-9b-AC220V.
Specifications
| Brand | LS (LS Industrial Systems / formerly LG Industrial Systems) |
|---|---|
| Model Number | MC-9b-AC220V |
| Official Product Name | Operating Coil for Magnetic Contactor |
| Applicable System | LS MC-9b series magnetic contactors |
| Product Type | Contactor Coil / Spare Part |
| Equivalent Standard | IEC 60947-4-1 |
| Product Status | In Stock |
| Frequency | 50/60 Hz |
| Applicable Contactor | MC-9b series (e.g., MC-9b, MC-9b-AC220V) |
| Insulation Class | Class E (typical) |
| Power Consumption | Approx. 7.2 VA (inrush) / 7.2 VA (holding) – typical for MC-9b |
| Coil Resistance | Approx. 180 ohms (at 20°C) – typical for 220V AC coil |
| Operating Temperature | -5°C to +40°C (ambient) |
| Mounting | Direct replacement on MC-9b contactor |
| Certifications | CE, UL (typical for LS components) |
| Coil Voltage | 220V AC |
Product Description
This coil operates at 220V AC, providing the electromagnetic force necessary to actuate the contactor's main contacts. It is a critical replacement part for maintaining the functionality of motor control circuits, lighting control, and other industrial switching applications where LS contactors are employed. Manufactured to meet original equipment specifications, the MC-9b-AC220V coil ensures reliable performance and long service life. The coil is designed for continuous duty and is insulated to withstand the electrical stresses encountered in typical industrial environments. Its compact design allows for easy installation into the contactor's coil assembly, ensuring a secure fit and proper alignment with the magnetic circuit. This genuine LS replacement coil is ideal for preventive maintenance programs and emergency repairs. When the original coil in an MC-9b contactor fails due to burnout or mechanical wear, replacing it with the MC-9b-AC220V restores the contactor to full operational status, avoiding the cost of a complete contactor replacement. The coil is a new, original part, ensuring compatibility and performance that meets LS's quality standards. The LS MC-9b-AC220V is an operating coil specifically designed for use with LS (formerly LG Industrial Systems) magnetic contactors of the MC-9b series.
Basic Product Information
- Rated for 220V AC operation
- Designed for continuous duty
- High-quality insulation for reliable performance
- Easy to install, ensures proper contactor operation
- Cost-effective alternative to full contactor replacement
- Genuine LS replacement coil for MC-9b series contactors
Technical Specifications
Version & Model Difference
The MC-9b-AC220V is a specific coil variant for the MC-9b contactor series. LS offers coils in various voltage ratings (e.g., 110V, 220V, 380V) to match different control circuits. The 'AC220V' designation indicates the coil is designed for 220V AC control supply. Other versions may have different coil resistances and power consumption, but the mechanical mounting and electrical interface are identical across the MC-9b series. Ensure you select the correct coil voltage for your application to avoid malfunction.
