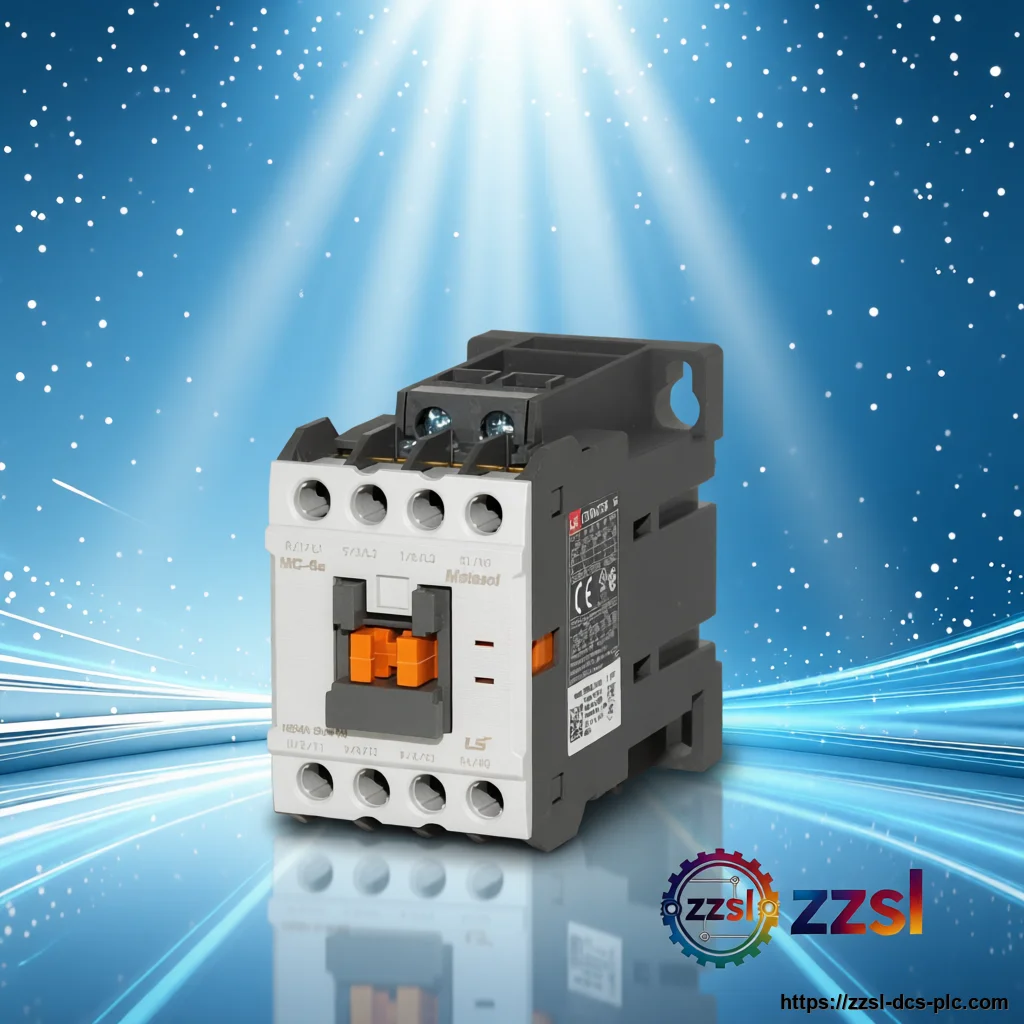

LS Relay Module MC-6A 24VDC
Home > Products > LS > Relay Modules Need LS MC-6A 24VDC? Relay Module for Industrial Control Systems, PLCs, Automation Panels. Supplied with full tra…
Contact us for current availability and best price of MC-6A-24VDC.
Specifications
| Brand | LS |
|---|---|
| Model Number | MC-6A 24VDC |
| Official Product Name | Relay Module MC-6A 24VDC |
| Applicable System | Industrial Control Systems, PLCs, Automation Panels |
| Product Type | Relay Module |
| Equivalent Standard | IEC 60947, UL 508 |
| Product Status | In Stock |
| Coil Voltage | 24VDC |
| Contact Configuration | SPDT (1NO + 1NC) |
| Contact Rating | 5A @ 250VAC / 5A @ 30VDC |
| Switching Capacity | 1250VA / 150W |
| Coil Power Consumption | Approx. 0.9W per relay |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Dielectric Strength | 2000VAC for 1 minute (between coil and contacts) |
| Insulation Resistance | 100MΩ min (at 500VDC) |
| Mounting Type | DIN-rail (35mm) |
| Dimensions (W x H x D) | 90mm x 75mm x 60mm (approx.) |
| Number of Channels | 6 |
Product Description
It features 6 independent relay channels, each with a 24VDC coil and SPDT (Single Pole Double Throw) contacts rated at 5A/250VAC. This module is commonly used in PLC output expansion, signal isolation, and power switching applications. Its robust construction ensures reliable operation in harsh industrial environments, with LED indicators for each channel to facilitate troubleshooting. The MC-6A operates on a 24VDC control voltage, making it compatible with standard industrial power supplies. Each relay channel provides both NO (Normally Open) and NC (Normally Closed) contacts, offering flexibility in circuit design. The module is designed for DIN-rail mounting, simplifying installation and maintenance. With a mechanical life of over 10 million operations, it ensures long-term durability. LS (LS Electric) is a well-known manufacturer of industrial automation components, and the MC-6A is part of their relay module series. This module is widely used in control panels, machinery, and process automation systems. It is a genuine OEM product, ensuring compatibility and performance. Whether for new installations or replacements, the MC-6A 24VDC is a reliable choice for engineers and technicians. The LS MC-6A 24VDC is a compact relay module designed for industrial automation and control systems.
Basic Product Information
- Contact rating: 5A @ 250VAC / 30VDC
- LED status indication per channel
- Screw terminal connections
- High mechanical life (10 million operations)
- 6 independent relay channels
Technical Specifications
Version & Model Difference
The MC-6A 24VDC is part of LS's MC series relay modules. Variations include different coil voltages (e.g., 12VDC, 110VAC, 220VAC) and channel counts (e.g., MC-4A for 4 channels, MC-8A for 8 channels). The 24VDC version is the most common for PLC and electronic control systems. Some versions may have different contact ratings or include flyback diodes for DC coil suppression. Always verify the specific model number and coil voltage to ensure compatibility.
