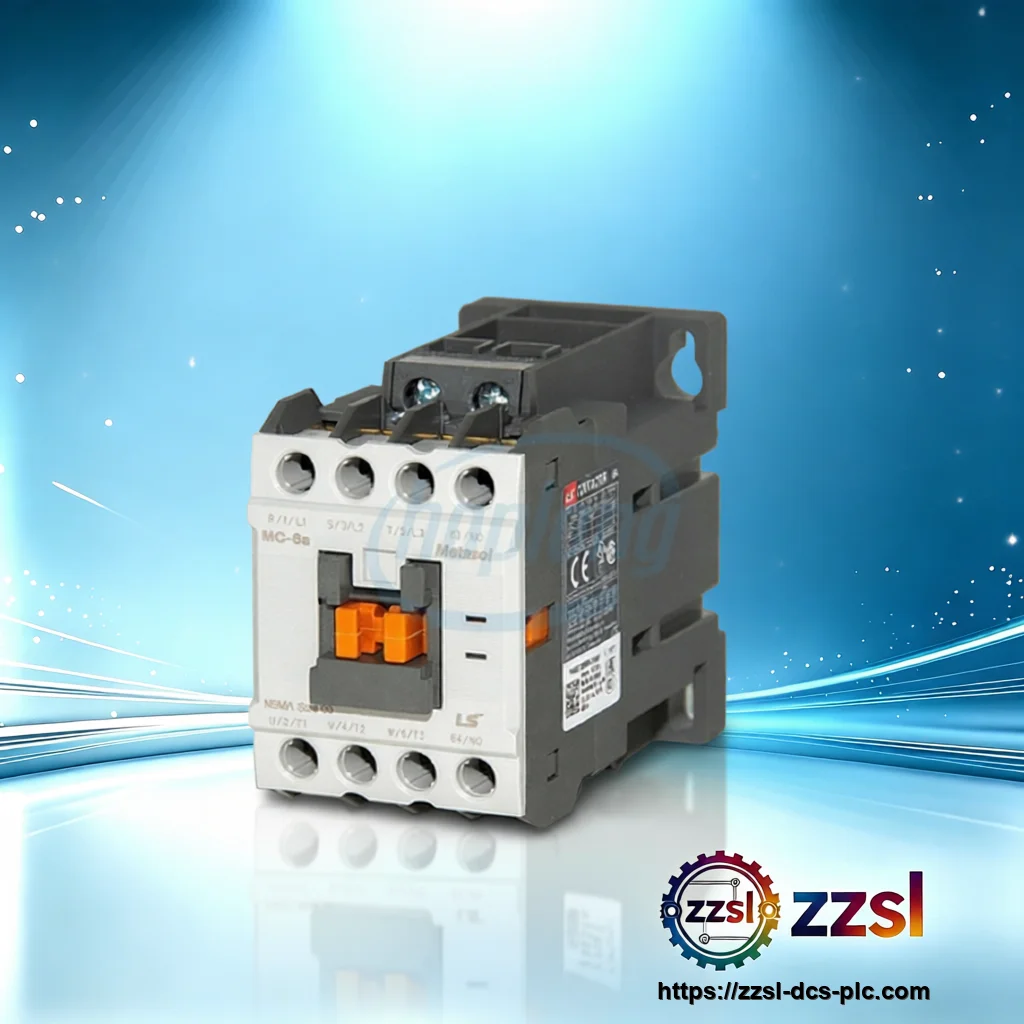

CONTACTORMC-6A-220VACLS
LS Component CONTACTOR,MC-6A 220VAC,LS
LS Electric
LS Component CONTACTOR,MC-6A 220VAC,LS
Home > Products > Contactors > LS > MC-6A 220VAC Need LS CONTACTOR,MC-6A 220VAC,LS? Component for Industrial motor control systems, automation pane…
Specifications
| Brand | LS |
|---|---|
| Model Number | MC-6A 220VAC |
| Official Product Name | CONTACTOR,MC-6A 220VAC,LS |
| Applicable System | Industrial motor control systems, automation panels, HVAC systems |
| Product Type | Component (Contactor) |
| Equivalent Standard | LS MC-6a, MC-6a 220V, MC-6a 110V (voltage variant) |
| Product Status | Active |
| Lifecycle note | Active, in production |
| Rated Operational Voltage (Ue) | 220VAC |
| Rated Operational Current (Ie) | 6-9 A depending on voltage (frame 18AF) |
| Coil Voltage | 220VAC |
| Coil Frequency | 50/60Hz |
| Number of Poles | 3 |
| Auxiliary Contacts | 1NO + 1NC (optional) |
| Mechanical Endurance | 10 million operations |
| Electrical Endurance | 1 million operations |
| Mounting Type | DIN rail or screw mounting |
| Operating Temperature | -25 degC to +55 degC |
| Degree of Protection | IP20 |
| Standards | IEC 60947-4-1 |
| Rated Impulse Withstand (Uimp) | 6 kV |
| Mechanical Life | 15 million operations |
| Electrical Life (AC-3) | 2.5 million operations |
| Weight | approx. 0.33 kg |
| Dimensions | 45 x 73.5 x 80.4 mm (WxHxD) |
| Country of Origin | Korea (LS Electric) |
| Rated Insulation Voltage (Ui) | 690 V |
Product Description
21.38 USD （参考价 / est. market price）
Basic Product Information
- Coil voltage of 220VAC for direct control from standard power supplies
- Compact design for space-saving installation in control panels
- High durability with mechanical and electrical endurance for long service life
- Complies with international standards (IEC, UL) for safety and performance
- Suitable for a wide range of applications including motor starting, lighting control, and power distribution
- Rated operational current of 6A for reliable switching of AC loads
Technical Specifications
Version & Model Difference
The MC-6A 220VAC is part of the LS MC series contactors. This model is specifically designed for 220VAC coil voltage, while other versions may have different coil voltages (e.g., 110VAC, 24VDC) or different current ratings (e.g., MC-9A, MC-12A). The 220VAC version is the most common for industrial applications in regions with 220V control circuits. There are no significant differences in physical dimensions or mounting options among the voltage variants.
Application Scenarios
- Motor starting and stopping in conveyor systems
- Control of lighting circuits in commercial buildings
- Switching of heating elements in industrial furnaces
- Automation of pumps and fans in HVAC systems
- Replacement of worn-out contactors in existing panels
- Integration into new control panels for machinery
