CONTACTORMC-18A-220VACLS

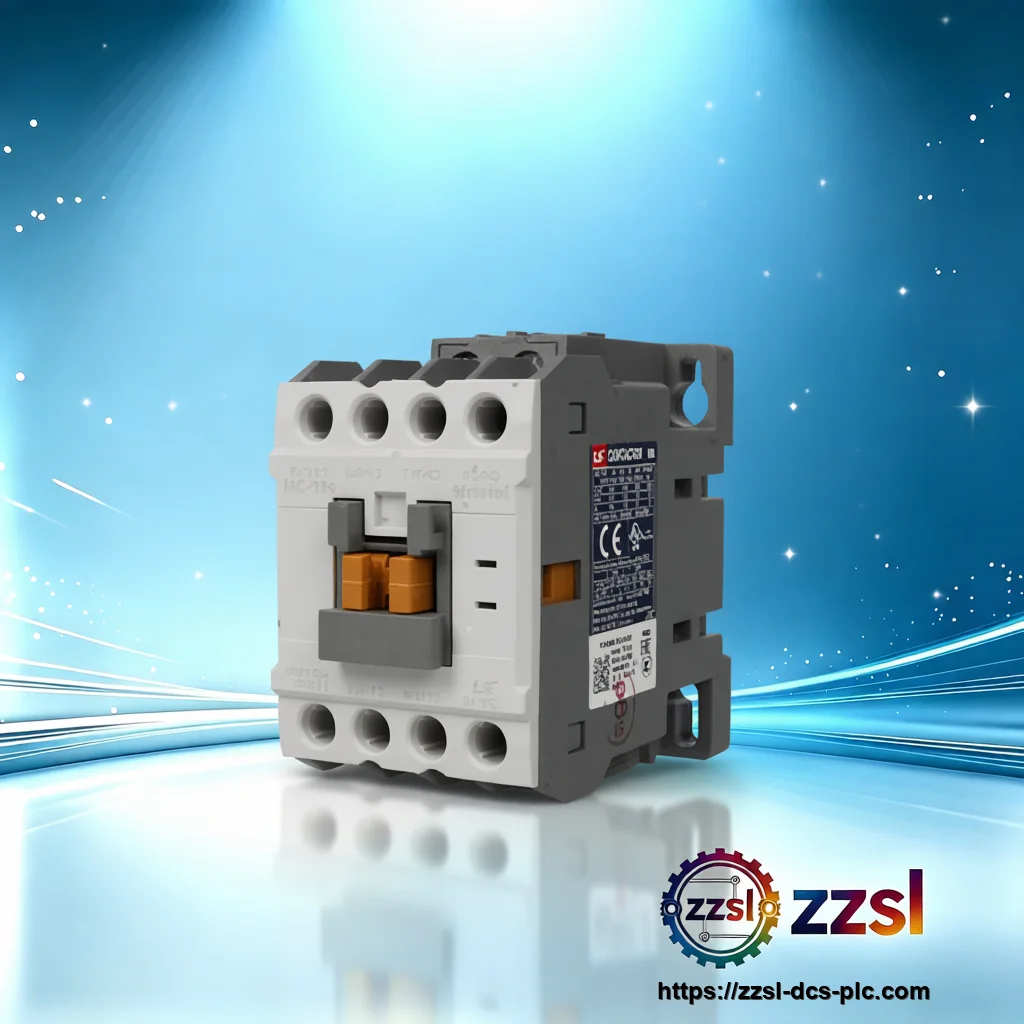

LS Component CONTACTOR,MC-18A 220VAC,LS
LS Electric
LS Component CONTACTOR,MC-18A 220VAC,LS
Home > Products > Contactors > LS > LS CONTACTOR MC-18A 220VAC Need LS CONTACTOR,MC-18A 220VAC,LS? Component for Motor control systems, industrial …
Specifications
| Brand | LS |
|---|---|
| Model Number | MC-18A 220VAC |
| Official Product Name | CONTACTOR,MC-18A 220VAC,LS |
| Applicable System | Motor control systems, industrial automation, HVAC |
| Product Type | Component (Contactor) |
| Equivalent Standard | MC-18A (other coil voltages), LS MC-18A series |
| Product Status | Active |
| Coil Voltage | 220 V AC |
| Number of Poles | 3 |
| Auxiliary Contacts | 1NO + 1NC (standard) |
| Rated Insulation Voltage | 690V |
| Rated Operational Voltage | Up to 690V |
| Mechanical Endurance | 10 million operations |
| Electrical Endurance | 1 million operations |
| Mounting Type | DIN rail or screw mounting |
| Terminal Type | Screw terminals |
| Operating Temperature | -25 degC to +55 degC |
| Standards | IEC 60947-4-1 |
| Rated Impulse Withstand (Uimp) | 6 kV |
| Mechanical Life | 15 million operations |
| Electrical Life (AC-3) | 2.5 million operations |
| Weight | approx. 1.5 kg |
| Country of Origin | Korea (LS Electric) |
| Rated Current (AC-3) | 18 A at 380/440V (frame 18AF) |
Product Description
30.76 USD （参考价 / est. market price）
Basic Product Information
- 220VAC coil voltage for standard control circuits
- Compact design for easy installation in control panels
- High electrical and mechanical endurance for long service life
- Complies with international standards for safety and performance
- Rated current 18A suitable for motor loads up to 7.5kW (depending on voltage)
Technical Specifications
Version & Model Difference
The MC-18A series is available with different coil voltages (e.g., 24VAC, 110VAC, 220VAC, 380VAC). The 220VAC version is commonly used in regions with 220V control circuits. Other versions may have different coil power consumption but similar performance characteristics. Ensure the correct coil voltage is selected for the control circuit.
Application Scenarios
- Motor control in industrial machinery (pumps, fans, compressors)
- HVAC systems for air handling units and chillers
- Automation panels for conveyor systems
- Replacement for existing contactors in maintenance and retrofit projects
- Original equipment manufacturer (OEM) applications
