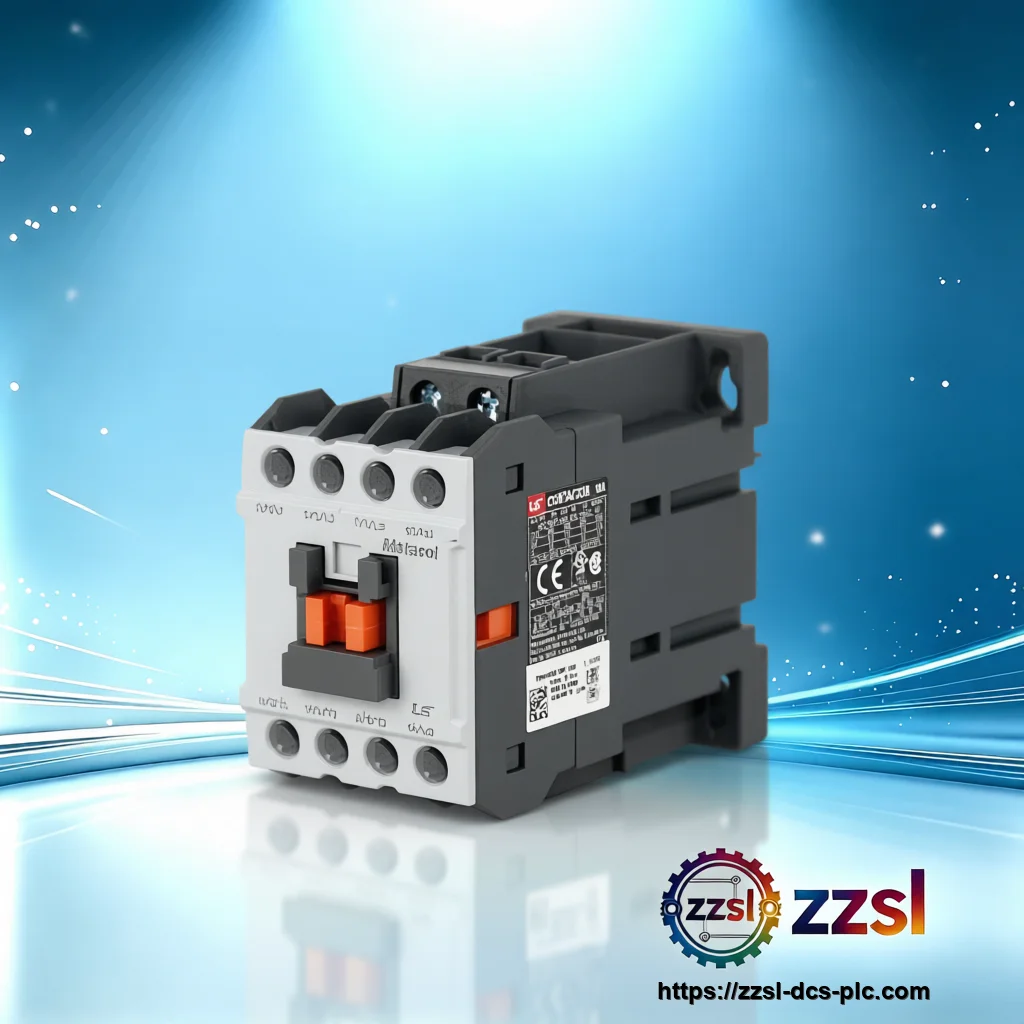

LS Component CONTACTOR,MC-12A 220VAC,LS
CONTACTOR,MC-12A
LS Electric
LS Component CONTACTOR,MC-12A 220VAC,LS
Need LS CONTACTOR,MC-12A 220VAC,LS? Component for Motor control, lighting, heating circuits. Price & Availability 30.00 USD (est. market price) It is int…
Specifications
| Brand | LS |
|---|---|
| Model Number | MC-12A 220VAC |
| Official Product Name | CONTACTOR,MC-12A 220VAC,LS |
| Applicable System | Motor control, lighting, heating circuits |
| Product Type | Component (contactor) |
| Equivalent Standard | LS MC-12A, LS MC-12B, similar 12A contactors |
| Product Status | Active |
| Lifecycle note | Active, in production |
| Rated Operational Voltage (Ue) | Up to 690V |
| Rated Operational Current (Ie) | 12 A at 380/440V (frame 18AF) |
| Coil Voltage | 220VAC 50/60Hz |
| Number of Poles | 3 |
| Auxiliary Contacts | 1 NO + 1 NC (optional) |
| Mechanical Life | 15 million operations |
| Electrical Life | 1 million operations |
| Mounting Type | 35mm DIN rail or screw mounting |
| Operating Temperature | -25 degC to +55 degC |
| Degree of Protection | IP20 |
| Standards | IEC 60947-4-1 |
| Rated Impulse Withstand (Uimp) | 6 kV |
| Electrical Life (AC-3) | 2.5 million operations |
| Weight | approx. 0.5 kg |
| Country of Origin | Korea (LS Electric) |
| Rated Insulation Voltage (Ui) | 690 V |
Product Description
30.00 USD (est. market price)
Basic Product Information
- Coil voltage of 220VAC for standard industrial control circuits
- Compact design for space-saving panel installation
- Durable construction for long service life
- Complies with IEC/EN standards
- Suitable for AC-3 utilization category
- Rated operational current of 12A for reliable switching
Technical Specifications
Version & Model Difference
The MC-12A 220VAC is part of LS's MC series. Variations include different coil voltages (24VAC, 110VAC, 220VAC, 380VAC) and auxiliary contact configurations. The 220VAC version is common in European and Asian markets. There is no significant difference between the MC-12A and MC-12B except for minor mechanical adjustments; both are interchangeable in most applications.
Application Scenarios
- Motor starting and stopping in conveyors, pumps, fans
- Lighting control in commercial and industrial buildings
- Heating element switching in HVAC systems
- Replacement for failed contactors in existing panels
- OEM integration into control cabinets
