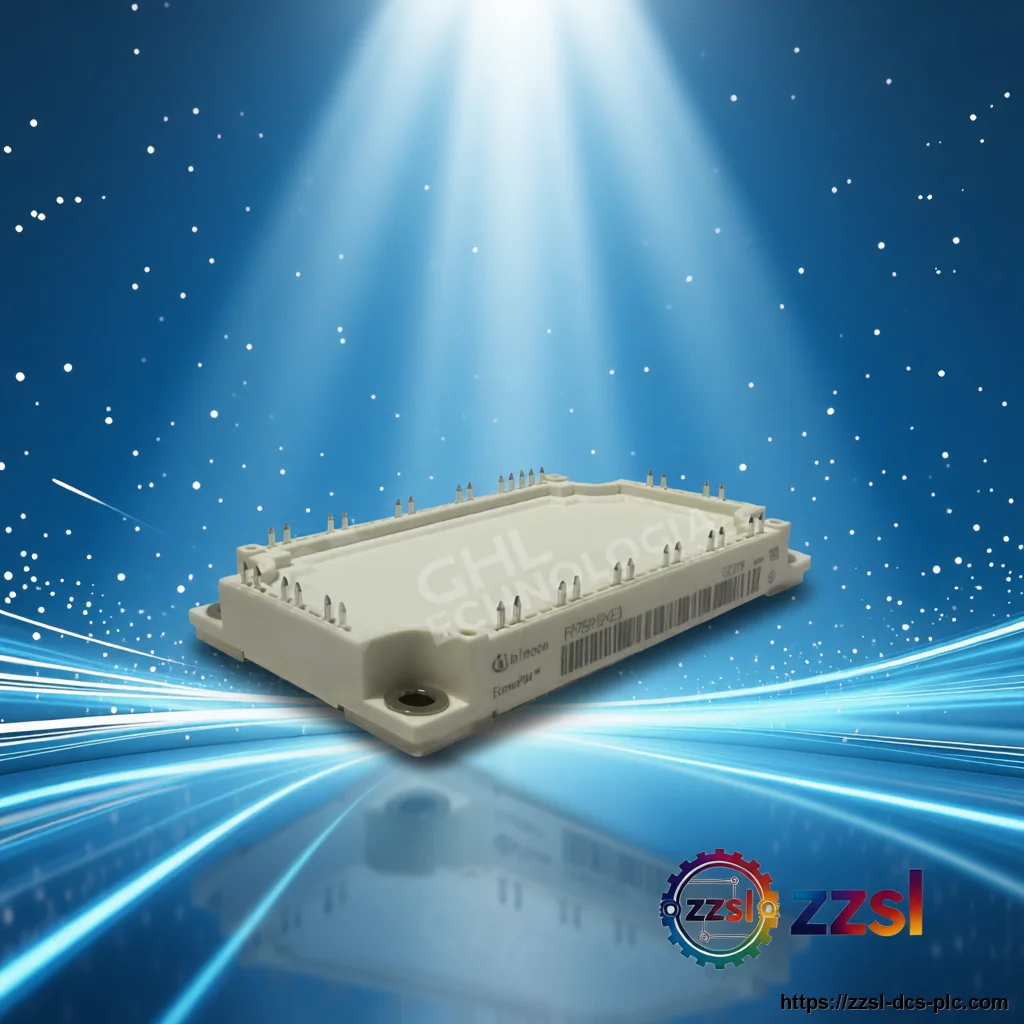

Infineon IGBT module FP75R12KE3
['Home', 'Power Semiconductors', 'IGBT Modules', 'FP75R12KE3'] Need Infineon FP75R12KE3? IGBT module for Power electron…
Specifications
| Brand | Infineon (Eupec) |
|---|---|
| Model Number | FP75R12KE3 |
| Official Product Name | IGBT Power Module |
| Applicable System | Power electronics / Inverter |
| Product Type | IGBT module (3-phase + brake + NTC) |
| Equivalent Standard | RoHS compliant |
| Product Status | Active |
| Collector current Ic | approx 75 A (up to 105 A per some listings) |
| Gate-Emitter threshold Vge(th) | 2.2 V (at 15 V, 75 A per listing) |
| Input capacitance Cies | 5.3 nF (at 25 V per listing) |
| Dissipation power Pd | 355 W (per listing) |
| Operating temperature | -40 to +125 degC (Tj) |
| Diode forward current (inverter) | 75 A continuous, 150 A peak |
| Weight | approx 300 g (per datasheet) |
| Collector-Emitter voltage Vces | 1200 V |
Product Description
Basic Product Information
- 3-phase inverter bridge with brake chopper
- Integrated NTC thermistor for temperature sensing
- Module-type package with internal insulation (Al2O3)
- Low inductance, low saturation voltage design
- 1200 V collector-emitter voltage
Technical Specifications
Version & Model Difference
- ['FP75R12KE3 (75 A, KE3) vs higher-current KE3 siblings: same voltage class, different current rating.', 'The -KE3 suffix denotes the Infineon/Eupec 3rd-generation 1200 V IGBT family.']
Application Scenarios
- 3-phase motor-drive inverters
- Power conversion and UPS
- Industrial servo and traction applications
- The datasheet is Infineon/Eupec (KE3 family); the source list did not specify a brand prefix.
