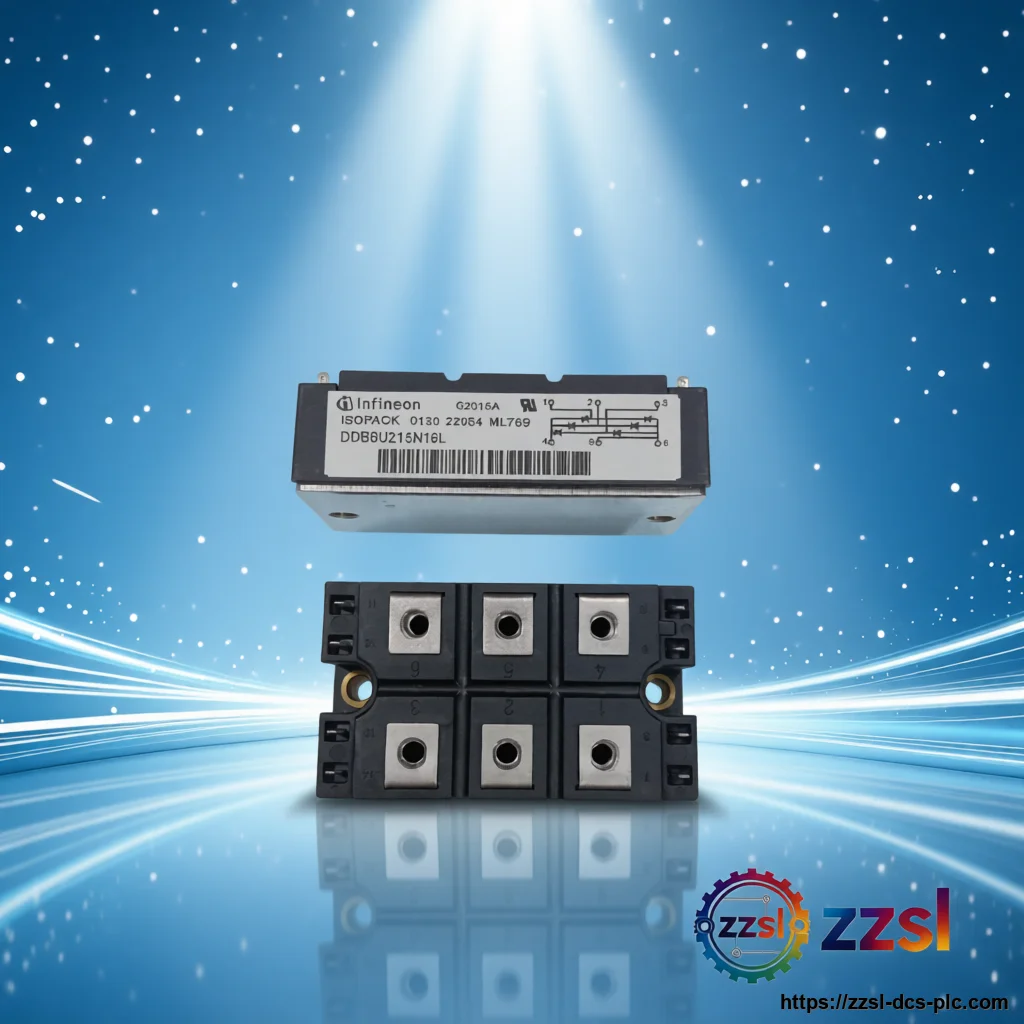

Infineon IGBT Module DDB6U215N16L
Home > Products > Infineon > IGBT Modules Need Infineon DDB6U215N16L? IGBT Module for Industrial Drives, Power Converters, Inverters. Supplied with fu…
Specifications
| Brand | Infineon |
|---|---|
| Model Number | DDB6U215N16L |
| Official Product Name | IGBT Module |
| Applicable System | Industrial Drives, Power Converters, Inverters |
| Product Type | IGBT Module |
| Equivalent Standard | IEC 60747 |
| Product Status | In Stock |
| Continuous DC Collector Current (Ic) | 215A at Tc=80°C |
| Pulsed Collector Current (Icp) | 430A |
| Collector-Emitter Saturation Voltage (Vce(sat)) | 2.45V typical at Ic=215A, Tj=25°C |
| Gate-Emitter Voltage (Vges) | ±20V |
| Total Power Dissipation (Ptot) | 1250W at Tc=25°C |
| Operating Junction Temperature (Tj) | -40°C to 150°C |
| Storage Temperature (Tstg) | -40°C to 125°C |
| Isolation Voltage (Visol) | 2500V AC (RMS) for 1 minute |
| Mounting Type | Screw mounting with isolated base plate |
| Collector-Emitter Voltage (Vces) | 1600V |
Product Description
It belongs to Infineon's robust IGBT family, offering a collector-emitter voltage of 1600V and a continuous DC collector current of 215A at a case temperature of 80°C. This module is engineered for high efficiency and reliability, making it suitable for motor drives, power supplies, and renewable energy inverters. Featuring a low-inductance design and advanced IGBT technology, the DDB6U215N16L ensures minimal switching losses and excellent thermal performance. The module incorporates a fast, soft-recovery anti-parallel diode, which enhances its switching behavior and reduces electromagnetic interference. Its isolated base plate allows for simple and effective heat sinking, ensuring stable operation even under high thermal stress. This module is a direct replacement for original equipment and is widely used in industrial automation systems. It is designed to meet international standards and is available as a new, original Infineon product. With its robust construction and proven technology, the DDB6U215N16L offers a long service life and dependable performance in harsh environments. The Infineon DDB6U215N16L is a high-performance IGBT module designed for demanding industrial applications.
Basic Product Information
- High current rating: 215A
- Low switching losses
- Fast, soft-recovery anti-parallel diode
- Isolated base plate for easy mounting
- Low-inductance design
- High voltage capability: 1600V
Technical Specifications
Version & Model Difference
The DDB6U215N16L is part of Infineon's IGBT module series. There are no major version differences for this specific model, but it is important to note that Infineon may offer similar modules with different current ratings (e.g., DDB6U150N16L) or voltage classes. Always verify the exact part number to ensure compatibility with your application.
