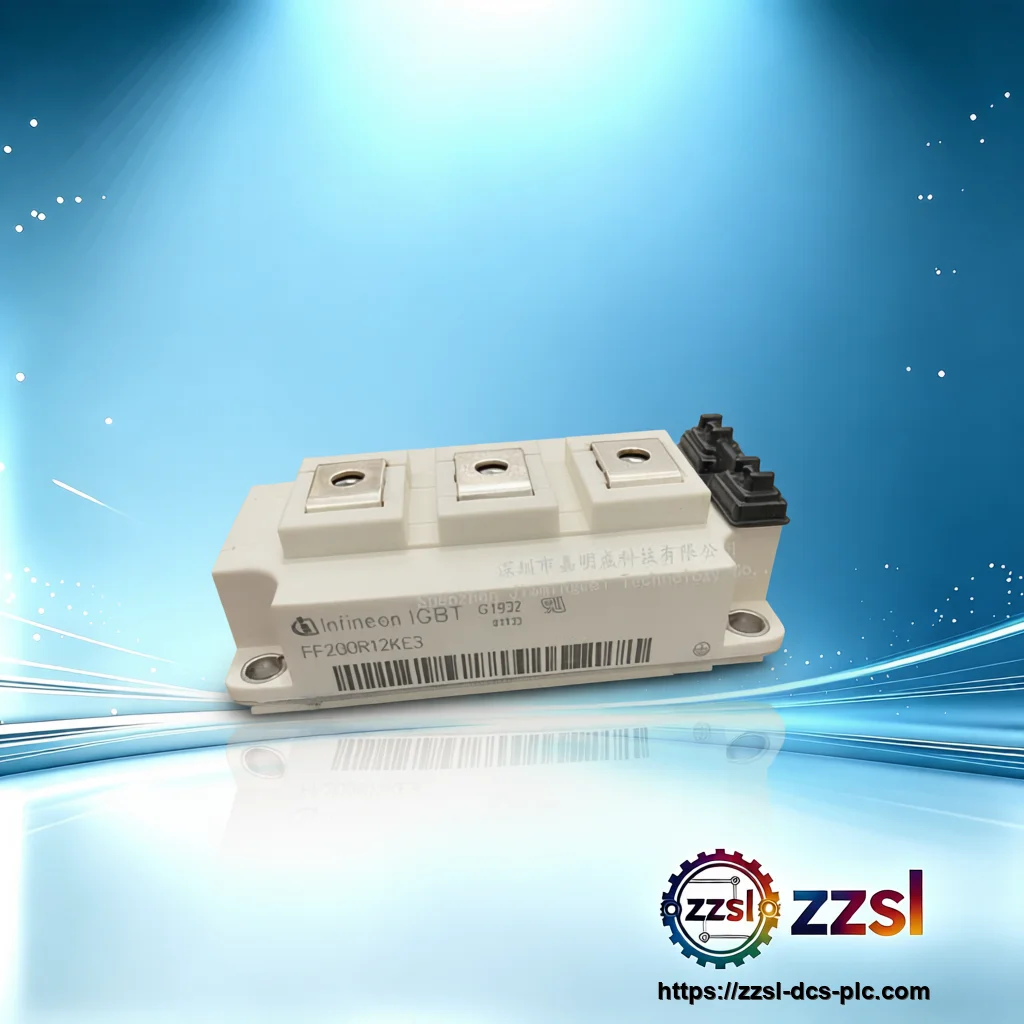

BLOCK,IGBT

Product Description

It belongs to the 62mm C-series family and features a 1200V collector-emitter voltage with a 200A continuous collector current (at Tc=80°C). The module integrates two IGBTs in a half-bridge configuration with freewheeling diodes, offering low switching losses and high short-circuit capability. Its robust design ensures reliable operation in demanding environments. This module utilizes Infineon's advanced trench gate field-stop IGBT technology, which provides a positive temperature coefficient for easy paralleling and excellent current sharing. The internal NTC temperature sensor enables precise thermal monitoring, enhancing system protection and longevity. With a maximum junction temperature of 150°C and isolation voltage of 4000V AC (1 minute), the FF200R12KE3 is suitable for high-voltage applications. Typical applications include motor drives, wind power converters, UPS systems, and industrial heating. The module's compact 62mm package allows for easy mounting and low inductance busbar connection. Infineon's commitment to quality ensures long-term reliability, making the FF200R12KE3 a preferred choice for engineers worldwide. The Infineon FF200R12KE3 is a high-performance dual IGBT module designed for industrial power conversion applications.

Basic Product Information

• Low switching losses due to trench gate field-stop technology
• Integrated NTC temperature sensor for thermal monitoring
• Positive temperature coefficient for easy paralleling
• RoHS compliant and lead-free soldering
• High short-circuit capability (10µs)
• High power density with 1200V/200A rating

Technical Specifications

Version & Model Difference

The FF200R12KE3 is part of Infineon's 62mm C-series IGBT modules. It is a mature product with a standard trench gate field-stop technology. Compared to newer modules like the FF200R12KE4 (which uses the same package but improved chip technology), the KE3 offers slightly higher switching losses but is still widely used in existing designs. The KE3 version is known for its robustness and has been a workhorse in industrial applications for years. There is also a variant FF200R12KE3_B2 with a different baseplate material (AlSiC) for improved thermal cycling capability.
