1MBI600V-120-50

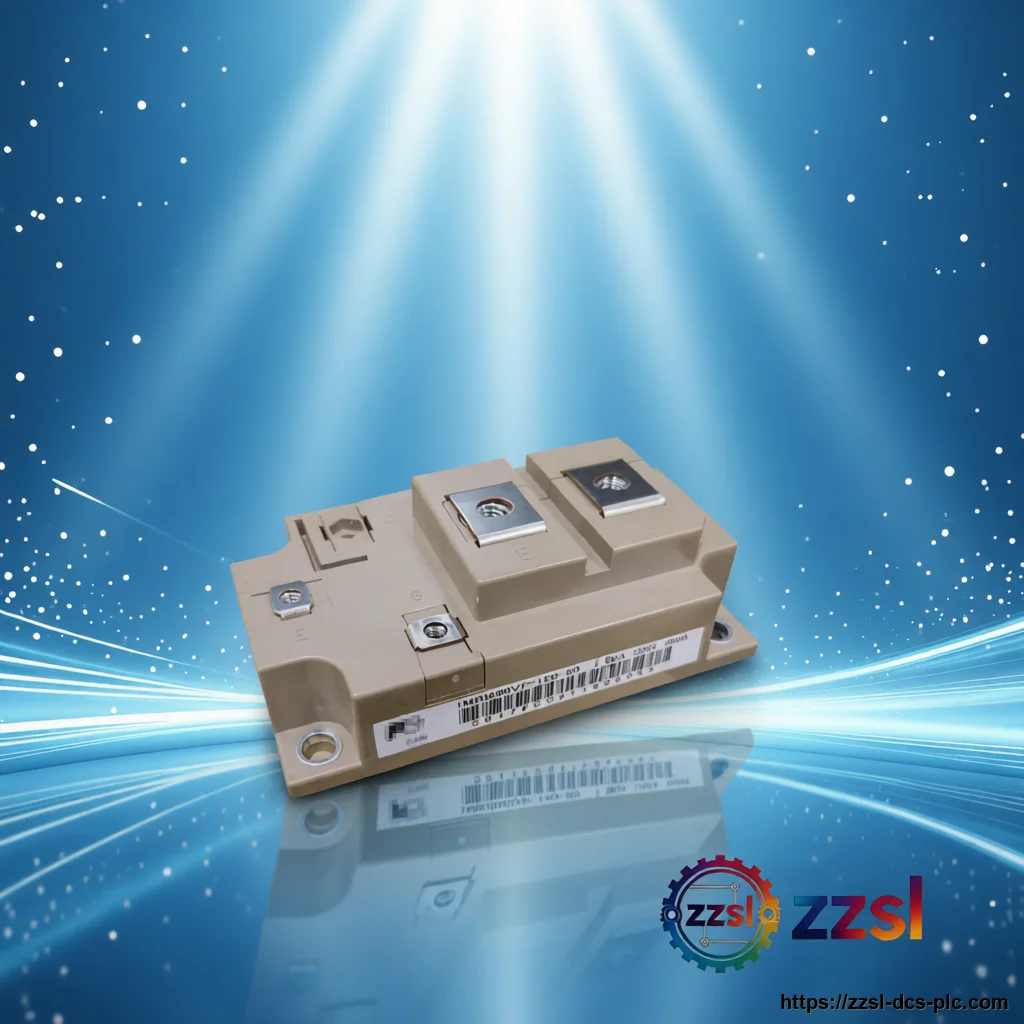

Infineon IGBT module 1MBI600V-120-50
Infineon
Infineon IGBT module 1MBI600V-120-50
['Home', 'Power Semiconductors', 'IGBT Modules', '1MBI600V-120-50'] Need Infineon 1MBI600V-120-50? IGBT module for Powe…
Specifications
| Brand | Infineon / Fuji Electric |
|---|---|
| Model Number | 1MBI600V-120-50 |
| Official Product Name | IGBT Power Module (V-series) |
| Applicable System | Power electronics / Inverter |
| Product Type | IGBT module (1-pack) |
| Equivalent Standard | RoHS compliant |
| Product Status | Active |
| Lifecycle note | In production |
| Collector current Ic (continuous) | 600 A at Tc=100 degC (720 A at 25 degC) |
| Gate-Emitter voltage Vges | +/-20 V |
| Collector power dissipation | 3000 W (1 device) |
| Junction temperature | max 175 degC (Tj), 150 degC operating |
| Collector-Emitter saturation Vce(sat) | typ 2.05 V at Ic=600 A, 25 degC |
| Isolation voltage | 2500 V AC (terminal to base) |
| Case temperature | max 125 degC |
| Storage temperature | -40 to +125 degC |
| Collector-Emitter voltage Vces | 1200 V |
Product Description
Basic Product Information
- 600 A continuous collector current (at Tc=100 degC)
- Single (1-pack) low-inductance module structure
- High-speed switching, voltage driven
- Built-in free-wheel diode
- 1200 V collector-emitter voltage
Technical Specifications
Version & Model Difference
['1MBI600V (V-series, 6th gen) vs other IMBI families: verify generation and pinout before substitution.', 'The 1MBI600V-120-50 is a single IGBT; dual/brake variants share the same voltage/current class.']
