ifm electronic · PLC Module
SBG32KMOFRKG

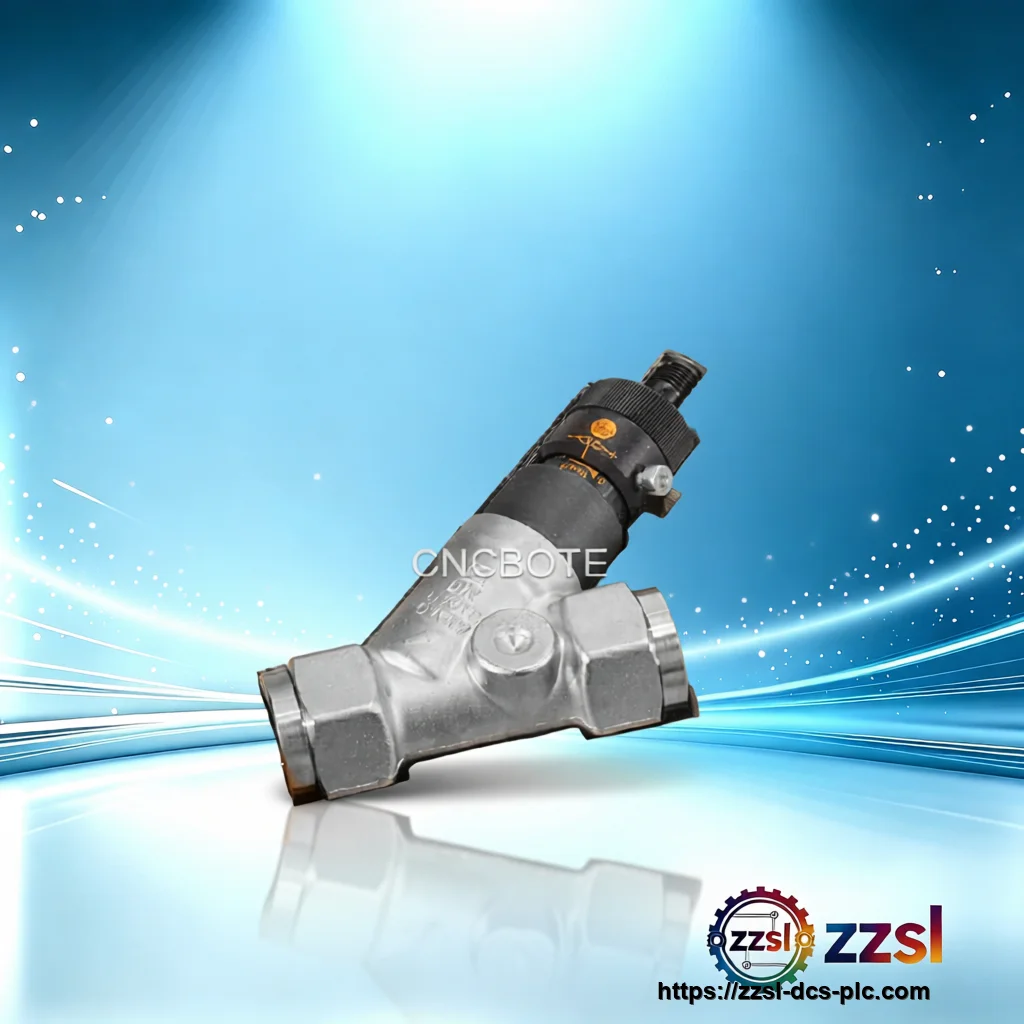

ifm electronic Flow Sensor SBG32KMOFRKG
ifm electronic
ifm electronic Flow Sensor SBG32KMOFRKG
['Home', 'Automation Spare Parts', 'ifm', 'Flow Sensors', 'SBG32KMOFRKG'] Need ifm electronic SBG32KMOFRKG? F…
Specifications
| Brand | ifm electronic |
|---|---|
| Model Number | SBG32KMOFRKG (SBG32KM0FRKG family) |
| Official Product Name | Flow Meter with Integrated Backflow Prevention and Display |
| Applicable System | Industrial fluid / oil monitoring |
| Product Type | Flow Sensor (MEMS / piston with valve) |
| Equivalent Standard | IEC 61131-9 (IO-Link), IP65/IP67 |
| Product Status | Active |
| Lifecycle note | Available (standard product) |
| Process connection | G 1 1/2 internal thread |
| Medium | Liquids, oils (viscosity 68 mm2/s at 40 deg C) |
| Medium temperature | -10 to +100 deg C |
| Pressure rating | 63 bar (50 bar above 70 deg C) |
| Operating voltage | 18 - 30 V DC (SELV/PELV) |
| Communication | IO-Link + 2 programmable outputs; 4-20 mA analog |
| Protection | IP65 / IP67 |
| Materials | Stainless steel 316L, PBT+PC-GF30, brass nickel-plated |
| Weight | Approx. 2.8 kg |
| Country of origin | Germany (ifm) |
| Measuring range | 4 - 200 l/min (0.24 - 12 m3/h) |
Product Description
Basic Product Information
- Integrated backflow prevention valve and display
- Two programmable outputs + 4-20 mA analog option
- Measuring range 4-200 l/min for oils
Technical Specifications
Version & Model Difference
- Queue lists 'SBG32KMOFRKG'; the ifm catalogue part is SBG32KM0FRKG (the 'O' likely a typographical '0'). Same product family. Confirm exact suffix with supplier.
Application Scenarios
- Oil flow and lubrication monitoring
- Hydraulic system flow control
- Industrial process fluid measurement
