ifm electronic Optical distance sensor O1D100
ifm electronic

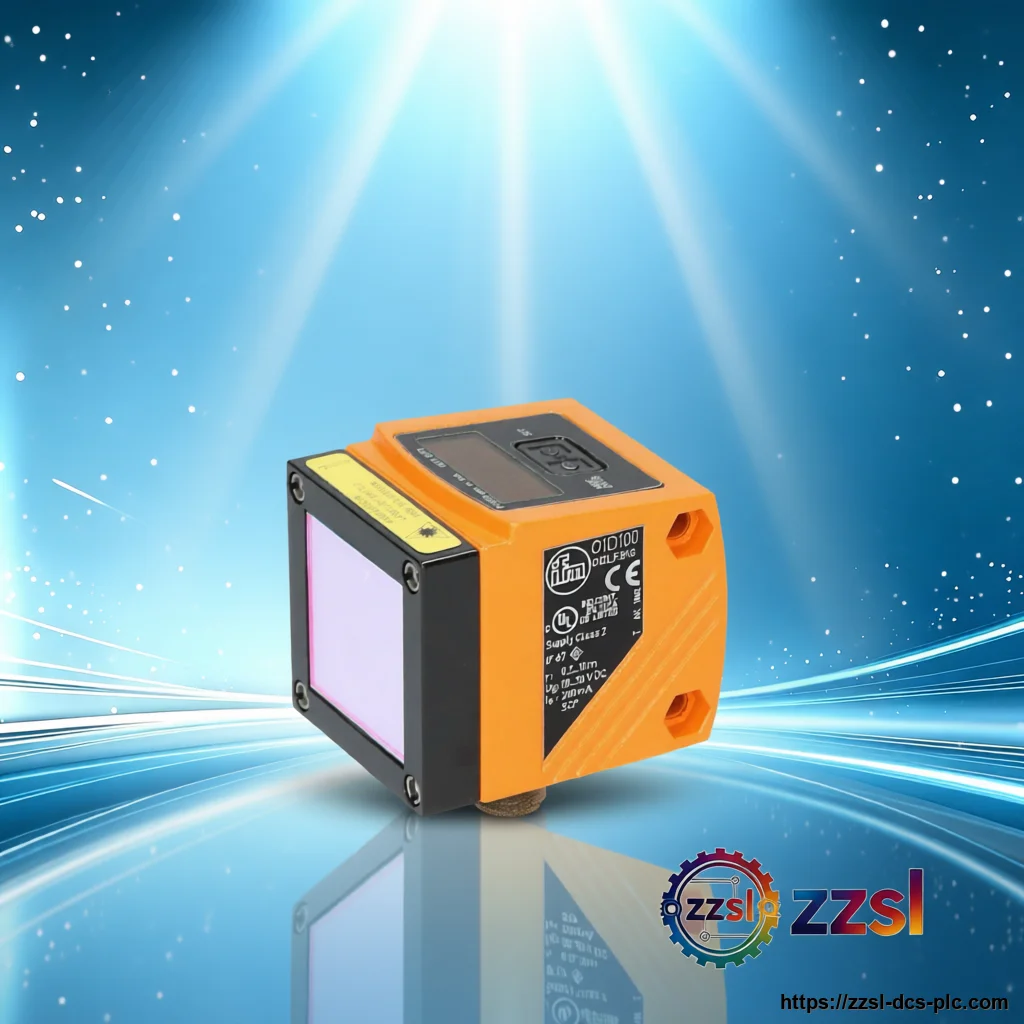

ifm electronic Optical distance sensor O1D100
Home > ifm electronic > Photoelectric Sensors > O1D100 Need ifm electronic O1D100? Optical distance sensor for Factory automation / IO-Link measuremen…
Specifications
| Brand | ifm electronic |
|---|---|
| Model Number | O1D100 |
| Official Product Name | Photoelectric distance sensor O1DLF3KG/IO-Link |
| Applicable System | Factory automation / IO-Link measurement |
| Product Type | Optical (laser) distance sensor |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Background suppression | 0 to 19 m |
| Operating voltage | 18 to 30 V DC |
| Current consumption | < 150 mA |
| Outputs | 2 PNP digital (NO/NC selectable) + 1 analogue (4–20 mA or 0–10 V) |
| Max. current load per output | 200 mA |
| Sampling rate | 1 to 50 Hz |
| Light spot size | Approx. 15 x 15 mm at 10 m |
| Communication | IO-Link COM2 (38.4 kBaud), revision 1.1 |
| Degree of protection | IP67 |
| Ambient temperature | -10 to 60 °C |
| Housing material | Diecast zinc, glass front pane |
| Dimensions | 59 x 42 x 52 mm |
| Connection | M12 connector |
| Weight | 243.5 g |
| Measuring range | 0.2 to 10 m (white paper 200 x 200 mm, 90 % remission) |
Product Description
It uses a class 2 laser with background suppression up to 19 m, so it can detect targets and ignore objects behind them. Two switching outputs are provided, one of which can be programmed as an analogue 4–20 mA or 0–10 V output, and the device is parameterised and diagnosed over IO-Link. A 4-digit display and an IP67 diecast zinc housing make it practical for factory automation. The ifm O1D100 is a photoelectric distance sensor for reliable optical measurement with ranges up to 10 m.
Basic Product Information
- Laser protection class 2 (650 nm) with background suppression up to 19 m
- Two switching outputs, one programmable as an analogue output
- Scalable measuring range and window function
- IO-Link COM2 parameterisation and diagnostics
- 4-digit alphanumeric display for distance values
- Reliable optical distance measurement with ranges up to 10 m
Technical Specifications
Version & Model Difference
The O1D100 (order code O1DLF3KG/IO-Link) belongs to the ifm O1D distance sensor family. Similar models share its 59 x 42 x 52 mm housing but differ in measuring range and laser class, for example O1D102 (0.2–3.5 m), O1D155 (0.3–6 m, class 1) and O1D106 (1–75 m). Verify the exact variant suffix when ordering.
Application Scenarios
- Distance and position measurement in factory automation
- Level and height monitoring with background suppression
- Object detection on conveyors and packaging lines
- Collision avoidance and gap measurement
- ifm IGT203 Inductive Proximity Sensor M18 8 mm PNP NO
- ifm SBG32KMOFRKG Flow Meter with Integrated Backflow Prevention
- Phoenix Contact RAD-DI4-IFS Radioline 4-Channel Digital Input Module (0–250V AC/DC)
- ifm II0011 IIA2010-ABOA Inductive Proximity Sensor
- ifm AC2024 AS-Interface AirBox
- ifm AC5205 AS-Interface ClassicLine Module
- ifm IA0032 (IAE2010-FBOA) Inductive Proximity Sensor
- ifm IIM202 (IIKC012BASKG/M/6M/ZH) Inductive Sensor
Frequently Asked Questions
What is the measuring range of the O1D100?
0.2 to 10 m, referenced to a 200 x 200 mm white paper target with 90 % remission.
Is the O1D100 IO-Link capable?
Yes, it communicates via IO-Link (COM2, 38.4 kBaud, revision 1.1) and can also operate in SIO mode.
What laser class is used?
Laser protection class 2 at 650 nm, max. 4 mW; avoid staring into the beam.
What outputs does it provide?
Two PNP digital outputs with NO/NC selection, one of which can be configured as an analogue 4–20 mA or 0–10 V output.
