ifm electronic

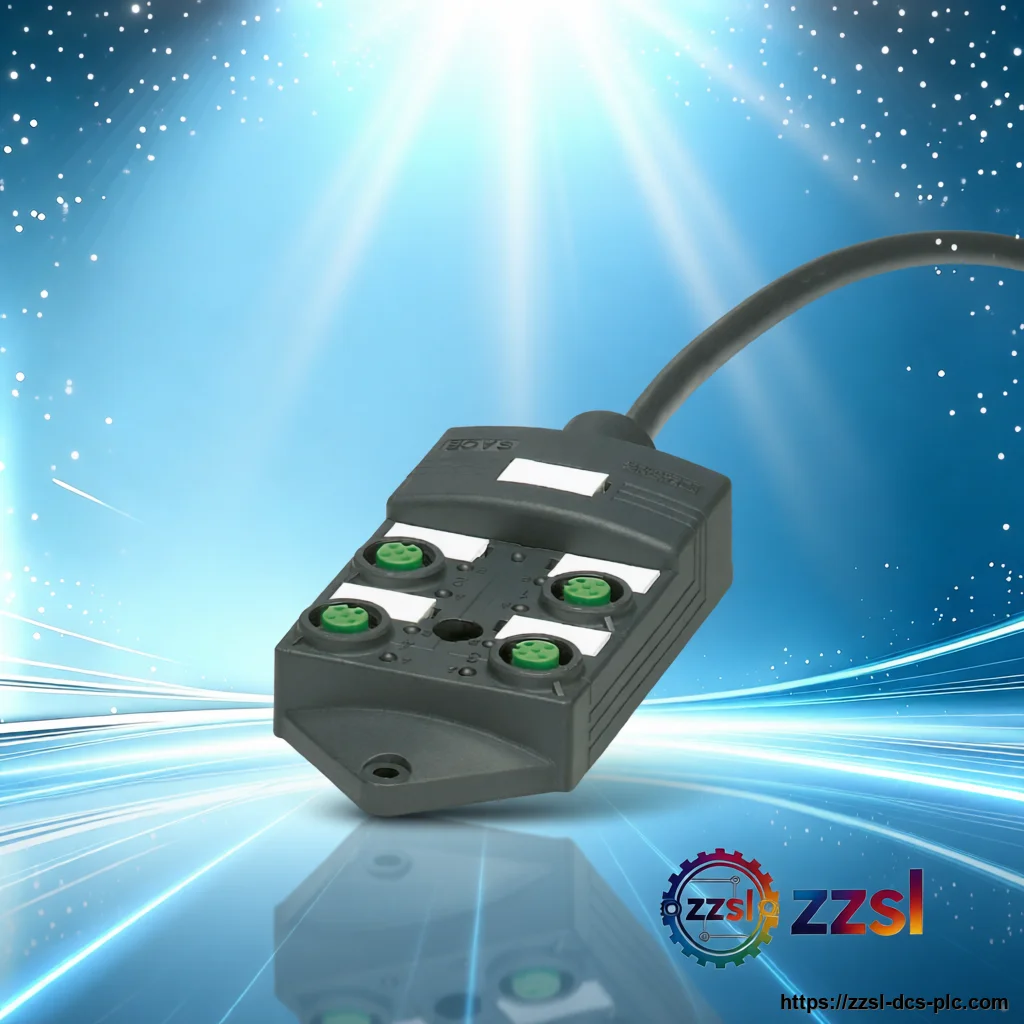

1452602-SACB-48-L-5
Home > Products > ifm electronic > Sensor/Actuator Boxes Need ifm electronic 1452602 SACB-4/8-L-5? Sensor for Industrial automation, PLC control syste…
Contact us for current availability and best price of 1452602-SACB-48-L-5.
Specifications
| Brand | ifm electronic |
|---|---|
| Model Number | 1452602 |
| Official Product Name | SACB-4/8-L-5 Sensor/Actuator Box |
| Applicable System | Industrial automation, PLC control systems |
| Product Type | Sensor/Actuator Box (I/O module) |
| Equivalent Standard | IEC 61076-2-101 (M12 connectors) |
| Product Status | In Stock |
| Connector type | M12 (A-coded) |
| Cable length | 5 m |
| Cable material | PUR (polyurethane) |
| Protection rating | IP67 |
| Supply voltage | 24 V DC (10-30 V DC) |
| Switching type | PNP |
| Current rating per port | 4 A (max total 8 A) |
| Operating temperature | -25°C to +80°C |
| Housing material | Zinc die-cast (with plastic cover) |
| LED indication | Yes (per port) |
| Dimensions | 60 mm x 60 mm x 30 mm (approx.) |
| Number of ports | 8 (4 inputs, 4 outputs) |
Product Description
It features 8 M12 ports (4 inputs and 4 outputs) and a 5-meter PUR cable for connection to a control system. The box is rated IP67, making it suitable for harsh environments where dust and water ingress are concerns. Its robust construction ensures reliable operation in demanding applications. This module consolidates sensor and actuator connections into a single point, reducing wiring complexity and installation time. The integrated LED indicators on each port provide quick visual status feedback for diagnostics, simplifying troubleshooting. The 24V DC power supply is standard for industrial systems, and the box supports PNP switching outputs, which are common in PLC-based control systems. The SACB-4/8-L-5 is part of ifm's SACB series, known for its modularity and ease of use. It is compatible with various M12 connectors and can be mounted directly on machines or in junction boxes. With its high protection rating and durable materials, this sensor/actuator box is ideal for use in automotive, material handling, and packaging applications where reliable signal transmission is critical. The ifm electronic 1452602 SACB-4/8-L-5 is a compact sensor/actuator box designed for efficient wiring in industrial automation.
Basic Product Information
- 5-meter PUR cable for direct connection to control system
- IP67 protection rating for harsh industrial environments
- LED indicators on each port for status and diagnostics
- 24V DC supply voltage with PNP switching outputs
- Robust metal and plastic housing for durability
- 8 M12 ports (4 inputs, 4 outputs) for sensor/actuator wiring
Technical Specifications
Version & Model Difference
The SACB-4/8-L-5 is part of ifm's SACB series. Variations include different cable lengths (e.g., -L-2 for 2m, -L-10 for 10m) and port configurations (e.g., SACB-4/4 for 4 ports). The -L-5 version specifically has a 5-meter cable. Other versions may have different connector types (e.g., 7/8" power connectors) or support for analog signals. This model is designed for digital PNP signals only.
Application Scenarios
- ifm O1D100 Photoelectric Distance Sensor 10 m
- ifm IGT203 Inductive Proximity Sensor M18 8 mm PNP NO
- ifm SBG32KMOFRKG Flow Meter with Display
- ifm electronic RAD-DI4-IFS I/O Module
- ifm II0011 IIA2010-ABOA Inductive Proximity Sensor
- ifm AC2024 AS-Interface AirBox
- ifm AC5205 AS-Interface ClassicLine Module
- ifm IA0032 (IAE2010-FBOA) Inductive Proximity Sensor
