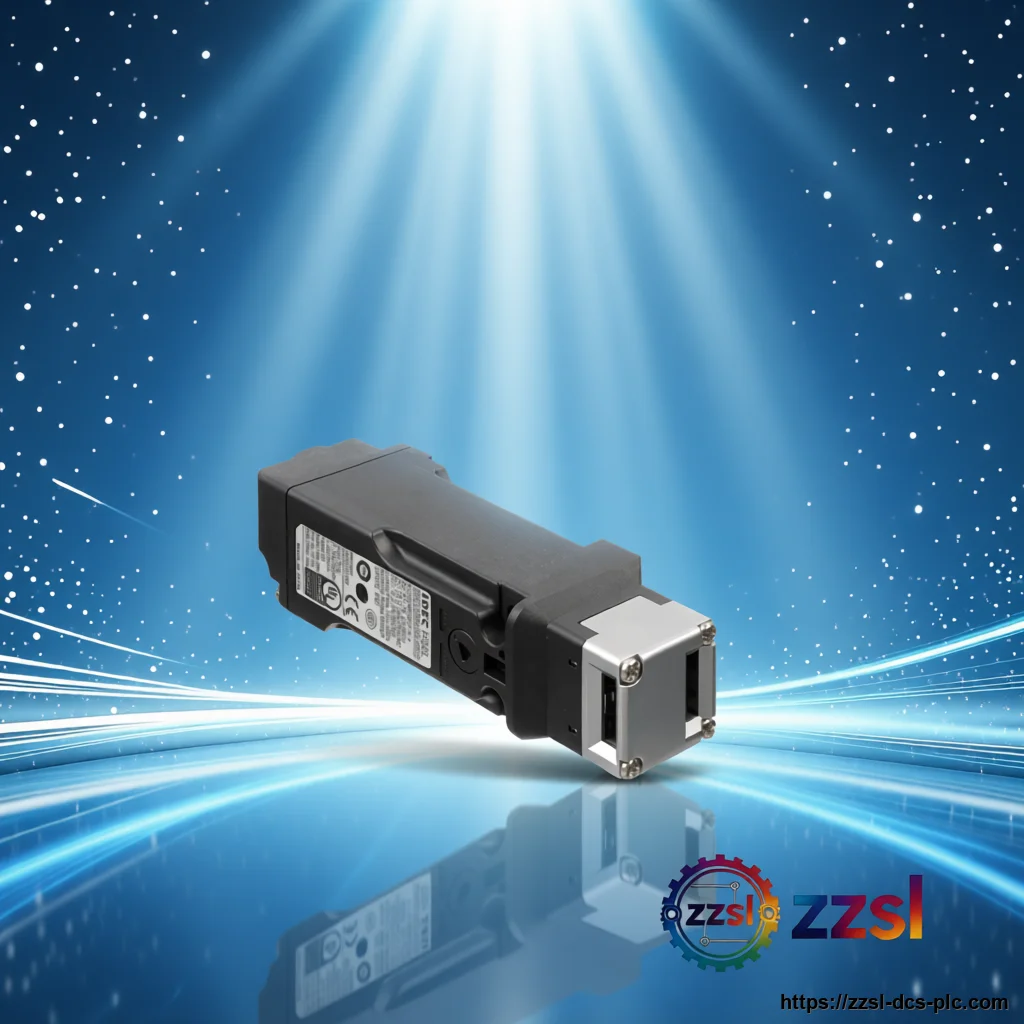

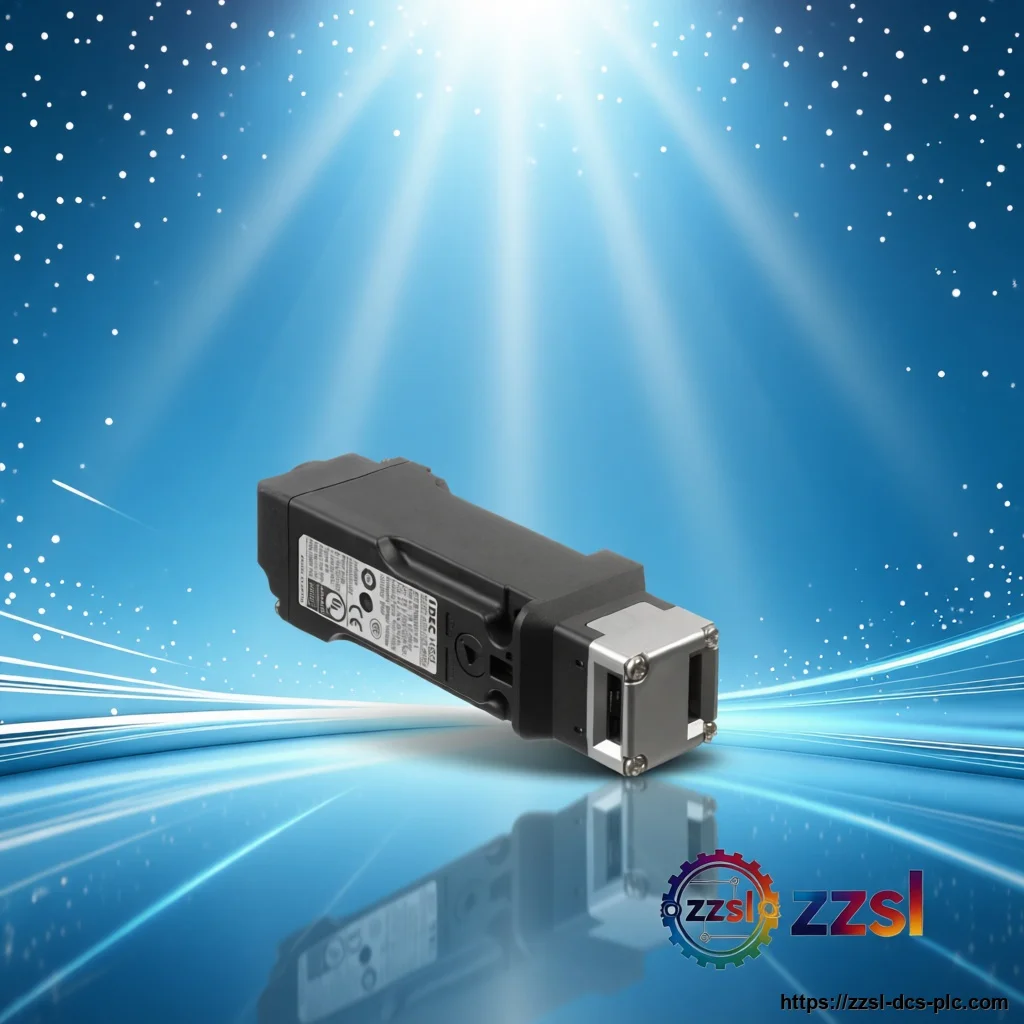

IDEC Safety Interlock Switch HS5L-XH7Y
Home > Products > IDEC > Safety Interlock Switch Need IDEC HS5L-XH7Y? Safety Interlock Switch for Safety circuits for industrial machinery. Supplied w…
Specifications
| Brand | IDEC |
|---|---|
| Model Number | HS5L-XH7Y |
| Official Product Name | HS5L Series Solenoid Lock Safety Interlock Switch |
| Applicable System | Safety circuits for industrial machinery |
| Product Type | Safety Interlock Switch |
| Equivalent Standard | ISO 14119, IEC 60947-5-1 |
| Product Status | In Stock |
| Solenoid Voltage | 24VDC |
| Contact Rating | 10A @ 250VAC (resistive load) |
| Degree of Protection | IP67 |
| Mechanical Life | 1,000,000 operations minimum |
| Electrical Life | 500,000 operations minimum |
| Operating Temperature | -30°C to +70°C |
| Housing Material | Die-cast aluminum |
| Actuator Head Material | Stainless steel |
| Cable Entry | 2 x M20 (for 6-12mm cable) |
| Standards | ISO 14119, IEC 60947-5-1, UL, CSA, CE |
| Contact Configuration | 2NC + 1NO |
Product Description
It is part of the HS5L series, known for its robust construction and high safety ratings. This model features a 2NC+1NO contact configuration, ensuring reliable circuit monitoring and control. The switch operates with a 24VDC solenoid, providing secure locking to prevent access to hazardous machinery until safe conditions are met. Engineered with a die-cast aluminum housing and a stainless steel actuator head, the HS5L-XH7Y offers exceptional durability in harsh environments. It is rated IP67, making it dust-tight and protected against temporary immersion in water. The switch is designed to meet international safety standards, including ISO 14119 and IEC 60947-5-1, ensuring compliance with global machinery safety regulations. This safety interlock switch is ideal for use on guards and doors of industrial machinery, such as presses, packaging equipment, and robotic cells. Its compact size and multiple mounting options allow for flexible installation. The HS5L-XH7Y is a genuine OEM part, ensuring original quality and performance. With a mechanical life of over 1 million operations, it provides long-term reliability in demanding applications. The IDEC HS5L-XH7Y is a solenoid-locked safety interlock switch designed for industrial safety applications.
Basic Product Information
- 2NC+1NO contact configuration for safety and auxiliary signals
- IP67 rated housing for dust and water resistance
- Die-cast aluminum body and stainless steel actuator head
- Complies with ISO 14119 and IEC 60947-5-1 safety standards
- Mechanical life of over 1 million operations
- Solenoid locking mechanism with 24VDC coil
Technical Specifications
Version & Model Difference
The HS5L series includes various models with different contact configurations and actuator types. The HS5L-XH7Y is a specific variant with 2NC+1NO contacts and a solenoid lock. Other versions may have different contact arrangements (e.g., 1NC+1NO) or manual lock override options. The XH7Y designation indicates the specific actuator head and locking mechanism design.
Application Scenarios
- IDEC HS5L-XH7Y Safety Switch
Frequently Asked Questions
What is the contact configuration of the IDEC HS5L-XH7Y?
The HS5L-XH7Y has 2NC (normally closed) and 1NO (normally open) contacts. The NC contacts are used in the safety circuit, and the NO contact can be used for status indication.
What is the solenoid voltage for this switch?
The solenoid operates on 24VDC. This voltage is commonly used in industrial control systems. Ensure your power supply matches this requirement.
Is the HS5L-XH7Y suitable for outdoor use?
Yes, with an IP67 rating, it is dust-tight and protected against temporary immersion in water. However, for prolonged outdoor exposure, additional protection against UV and extreme weather is recommended.
Does the HS5L-XH7Y comply with international safety standards?
Yes, it complies with ISO 14119 and IEC 60947-5-1, and it is UL, CSA, and CE certified. This ensures it meets global machinery safety requirements.
