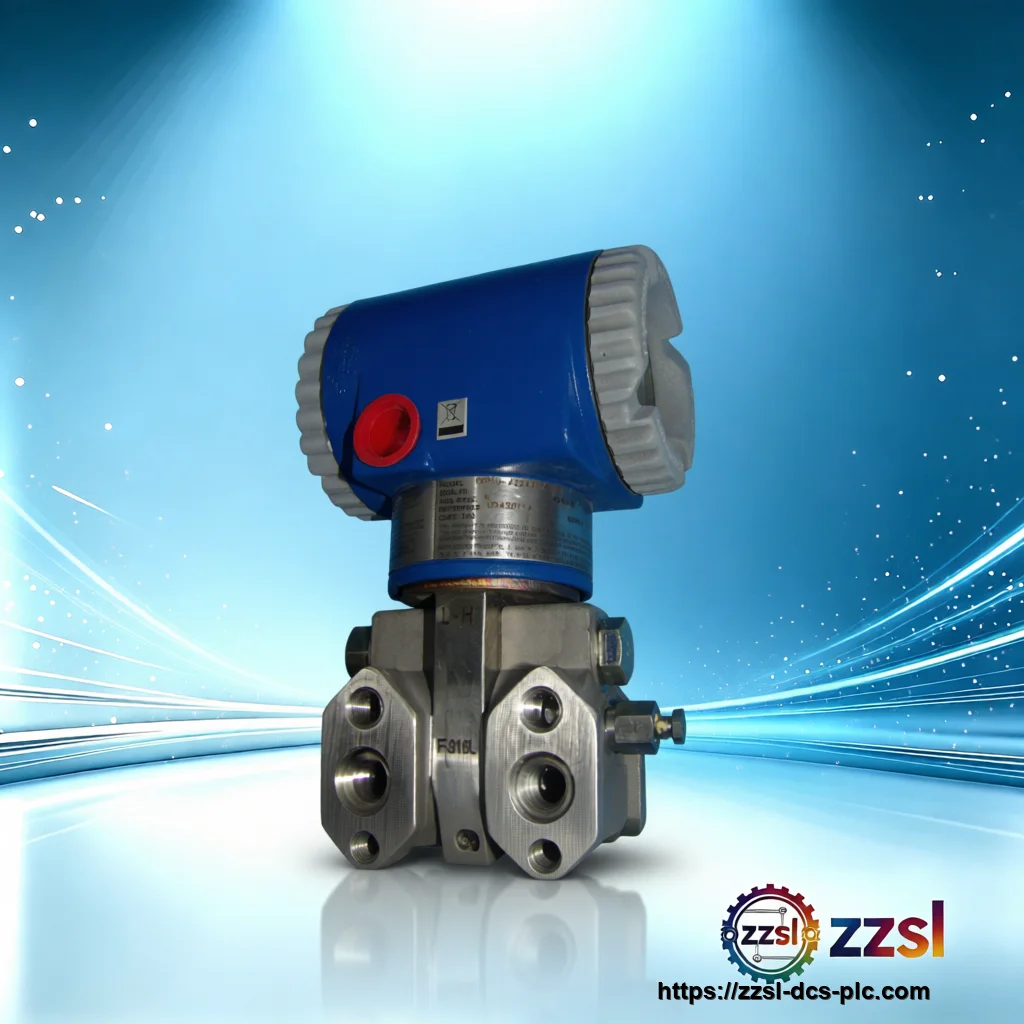

Foxboro Differential Pressure Transmitter IDP10-A22A21F
Honeywell
Foxboro Differential Pressure Transmitter IDP10-A22A21F
['Home', 'Industrial Automation Spare Parts', 'Foxboro', 'Pressure Transmitters'] Need Foxboro IDP10-A22A21F? Different…
Specifications
| Brand | FOXBORO |
|---|---|
| Model Number | IDP10-A22A21F |
| Official Product Name | Intelligent Differential Pressure Transmitter |
| Applicable System | Foxboro I/A Series process measurement |
| Product Type | Differential Pressure Transmitter |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Mature |
| Lifecycle note | Active / Mature |
| Sensor technology | Silicon strain gauge |
| Accuracy | plus/minus 0.075% (typical) |
| Protection rating | IP66 / NEMA 4X |
| SIL option | SIL2 capable (per I/A Series offering) |
| Warranty | 5-year (typical per I/A Series transmitter) |
| Series | Foxboro I/A Series |
| Output signal | 4-20 mA with HART |
Product Description
Basic Product Information
- 4-20 mA output with HART communication
- Silicon strain-gauge sensor technology
- NEMA 4X / IP66 rugged enclosure
- Intelligent differential pressure measurement
Technical Specifications
Version & Model Difference
The IDP10 is the intelligent differential pressure model in the Foxboro I/A Series transmitter family; the IGP10 (gauge) and IAP10 (absolute) cover other pressure types. Contact supplier for range and option code details of the -A22A21F suffix.
Application Scenarios
- Flow measurement with orifice or flow elements
- Liquid level and density measurement
- Process pressure monitoring in harsh environments
