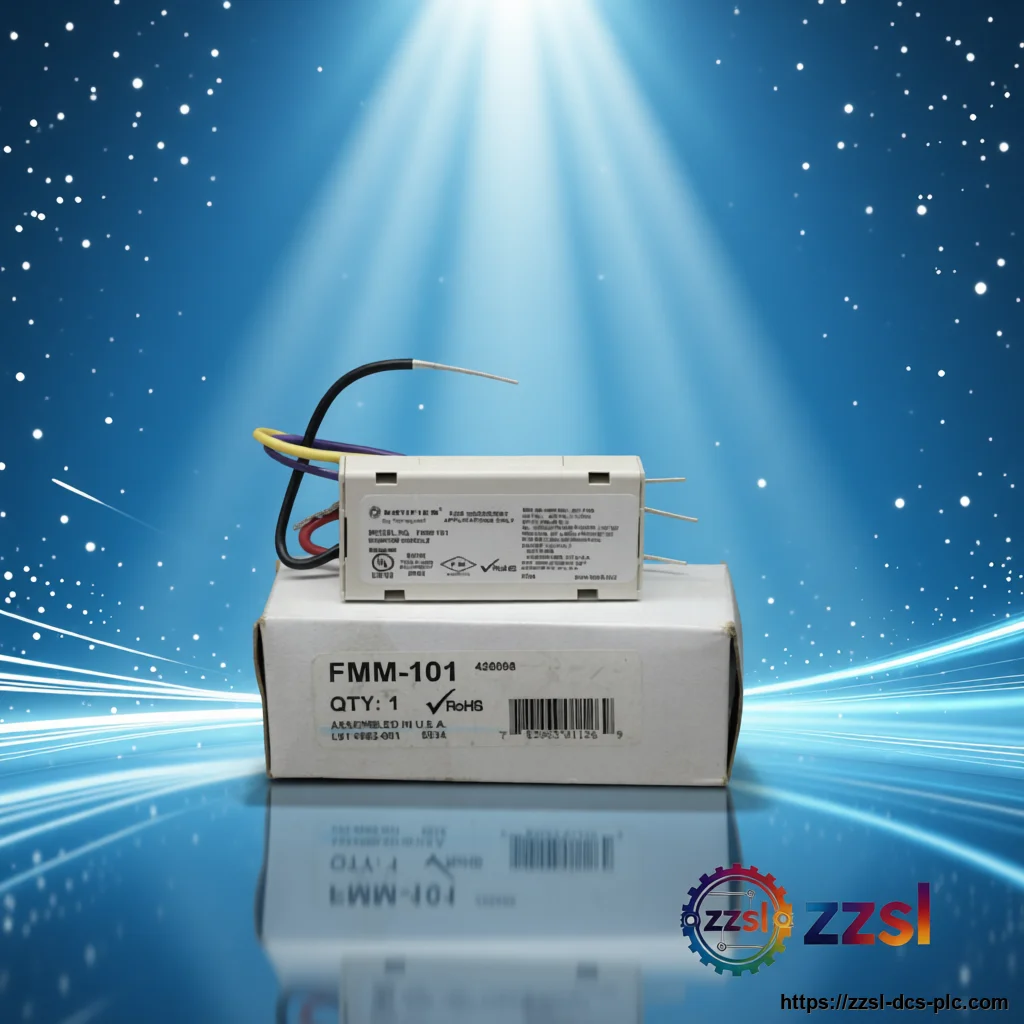

Honeywell+Notifier Addressable Monitor Module FMM-101
FMM-101
Honeywell
Honeywell+Notifier Addressable Monitor Module FMM-101
Home > Notifier > Addressable Modules > FMM-101 Need Honeywell+Notifier FMM-101? Addressable Monitor Module for Notifier ONYX / CLIP addressable fire …
Contact us for current availability and best price of FMM-101.
Specifications
| Brand | Notifier (Honeywell) |
|---|---|
| Model Number | FMM-101 |
| Official Product Name | Addressable Mini Monitor Module |
| Applicable System | Notifier ONYX / CLIP addressable fire alarm control panels (SLC loop) |
| Product Type | Addressable Monitor Module (Class B IDC) |
| Equivalent Standard | UL 864 / FM / NFPA 72 compliant |
| Product Status | In Stock |
| Standby Current | 350-375 uA (typical) |
| Alarm Current | 600 uA max |
| EOL Resistor | 47 kOhm (provided) |
| Max SLC Loop Resistance | 40 Ohm |
| Max IDC Resistance | 1,500 Ohm; Max IDC Voltage 11 VDC; Max IDC Current 450 uA |
| Dimensions | 1.3" H x 2.75" W x 0.65" D |
| Operating Temp | 32-120°F (0-49°C) |
| Humidity | 10-93% RH (non-condensing) |
| Wire Leads | 6 in minimum |
| Operating Voltage | 15-32 VDC (SLC loop-powered) |
Product Description
It supervises a single Class B initiating device circuit of normally-open dry-contact devices such as manual pull stations, waterflow switches, tamper switches and four-wire smoke detectors. Its compact footprint (1.3" x 2.75" x 0.65") lets it mount directly inside a standard single-gang box behind the monitored device, and a built-in bicolor LED shows normal (green flash) and alarm (red) status. Address is set via rotary switches, and it can replace the legacy MMX-101 module. The Notifier FMM-101 is an intelligent, addressable miniature monitor module for Notifier two-wire SLC loops (FlashScan and CLIP).
Basic Product Information
- Supervises one Class B (Style B) IDC of normally-open dry-contact initiating devices
- Compact size fits in a single-gang junction box directly behind the monitored device
- Rotary-switch addressing (01-159 FlashScan, 01-99 CLIP) with bicolor status LED
- Continuously supervises wiring integrity and device status; UL Listed, FM Approved, NFPA 72 compliant; replaces MMX-101
- Intelligent addressable mini monitor module for Notifier FlashScan and CLIP SLC loops
Technical Specifications
Version & Model Difference
The FMM-101 supersedes the MMX-101 in Notifier systems and supports both FlashScan (address 01-159) and older CLIP (01-99) SLC protocols. It is the monitor (input) counterpart; the FMM-102 is the mini control (output) module.
Application Scenarios
- Supervising manual pull stations and fire alarm initiating devices
- Monitoring waterflow and tamper switches on sprinkler systems
- Four-wire smoke detector and security contact supervision
- Space-constrained or discreet installations inside single-gang boxes
- Notifier AMPS-24/E Addressable Power Supply and Battery Charger
- Notifier HS-NCM-MF High-Speed Network Communications Module (Multimode Fiber)
Frequently Asked Questions
What does the Notifier FMM-101 monitor?
It supervises a single Class B initiating device circuit of normally-open dry-contact devices such as pull stations, waterflow/tamper switches and four-wire smoke detectors.
Which Notifier panels is it compatible with?
Any Notifier intelligent fire alarm control panel supporting FlashScan (address 01-159) or CLIP (01-99) SLC operation, including the ONYX series.
How is the module addressed?
Via two built-in rotary switches that set a unique SLC address; the bicolor LED flashes green in normal and latches red in alarm.
Can it replace an older module?
Yes. The FMM-101 can directly replace the legacy MMX-101 module in existing Notifier systems.
