Honeywell

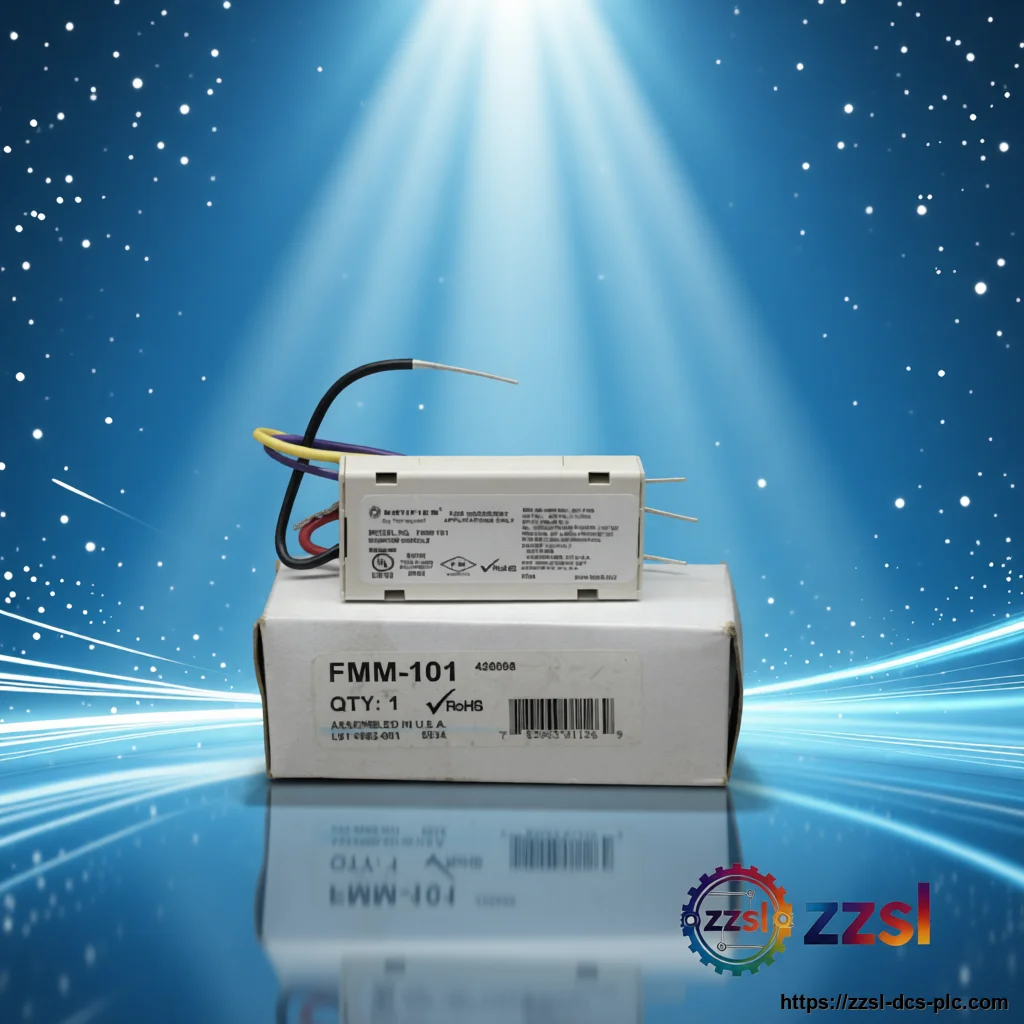

Honeywell+Notifier Module FMM-101
Home > Products > Fire Alarm Modules > Honeywell Notifier > FMM-101 Need Honeywell+Notifier FMM-101? Module for NOTIFIER intelligent fire alarm con…
Specifications
| Brand | Honeywell Notifier |
|---|---|
| Model Number | FMM-101 |
| Official Product Name | Addressable Mini Monitor Module |
| Applicable System | NOTIFIER intelligent fire alarm control panels (e.g., AFP-200, AFP-300, AFP-400, AM2020, AFP-1010) |
| Product Type | Module |
| Equivalent Standard | Contact us for details |
| Product Status | Active |
| Standby Current | 350-375 uA |
| LED Current | 6.5 mA @ 24 VDC |
| Maximum SLC Loop Length | 1.3 in H x 2.75 in W x 0.65 in D (manual states 0.5 in D) |
| Wire Gauge | 12-18 AWG |
| Operating Temperature | 0 to 49 degC (32 to 120 degF) |
| Relative Humidity | 10% to 93% non-condensing |
| Dimensions | 4.5" H x 2.75" W x 1.25" D (114 mm x 70 mm x 32 mm) |
| Weight | 0.13 lb |
| Listing | UL Listed, FM Approved, NFPA 72 Compliant |
| Humidity | 10-93% RH non-condensing |
| Operating Voltage | 15-32 VDC |
Product Description
52.00 USD （参考价 / est. market price）
Basic Product Information
- Compact design for space-saving installation
- Rotary decade switches for simple address setting (1-99)
- LED indicator for normal and alarm status
- Compatible with NOTIFIER SLC loops
- UL listed and FM approved
- Single addressable input for monitoring dry contact devices
Technical Specifications
Version & Model Difference
The FMM-101 is the standard version. There is also an FMM-101D with a built-in isolator, and an FMM-101A for high-temperature environments. The FMM-101 is compatible with all NOTIFIER panels that support the FlashScan protocol.
Application Scenarios
- Monitoring manual pull stations in commercial buildings
- Monitoring water flow switches in sprinkler systems
- Monitoring supervisory devices such as valve tamper switches
- Retrofit projects upgrading conventional fire alarm systems to addressable
- Maintenance and replacement of faulty monitor modules in existing installations
