Honeywell

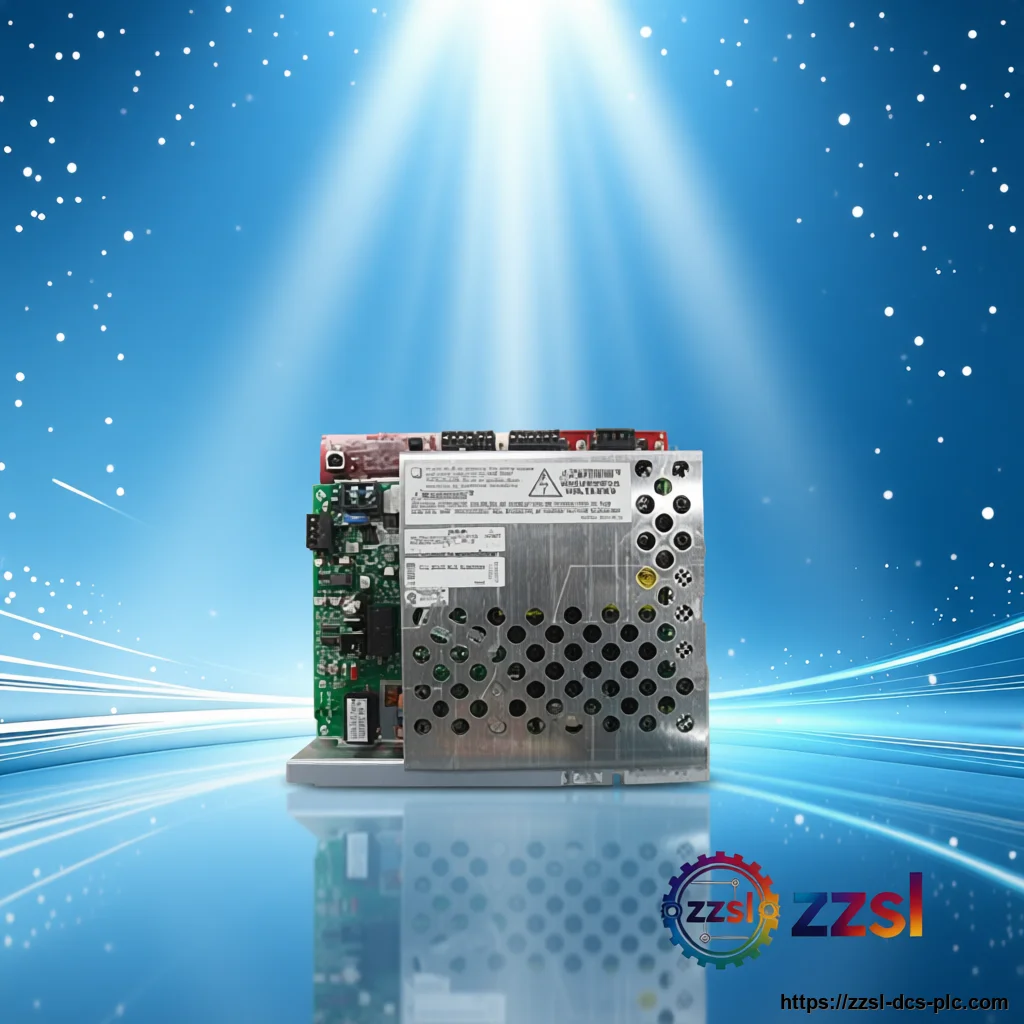

Honeywell+Notifier Module AMPS-24/E
Home > Products > Fire Alarm System Parts > Honeywell Notifier > AMPS-24/E Need Honeywell+Notifier AMPS-24/E? Module for Notifier intelligent fire …
Specifications
| Brand | Honeywell Notifier |
|---|---|
| Model Number | AMPS-24/E |
| Official Product Name | Addressable Power Supply |
| Applicable System | Notifier intelligent fire alarm control panels (e.g., NFS2-3030, NFS2-640, AFP-200, etc.) |
| Product Type | Module |
| Equivalent Standard | AMPS-24 (without EOL supervision), AMPS-24E (with EOL supervision) |
| Product Status | Active |
| Lifecycle note | Active, in production |
| Output Voltage | 24 VDC nominal |
| Output Current | 2.4 A continuous |
| Battery Charging Capacity | Up to 26 Ah (sealed lead-acid) |
| Operating Temperature | 0 degC to 49 degC (32 degF to 120 degF) |
| Humidity | 10% to 85% non-condensing |
| Dimensions (H x W x D) | 7.5" x 5.5" x 2.0" (190.5 mm x 139.7 mm x 50.8 mm) |
| Weight | 4.25 lb |
| Mounting | Chassis mount in Notifier panel |
| Certifications | UL (S635), ULC (CS118), CSFM, FM Approved, FDNY, City of Chicago, City of Denver, MEA |
| Warranty | 18 months from date of shipment |
| Output | 24 VDC (up to three 24 VDC outputs; Main 24V max 5 A) |
| Battery Charging | Sealed lead-acid 7-200 AH; selectable 1.0 / 2.0 / 5.0 A charger current |
| Input Voltage | 220-240 VAC, 50/60 Hz, 2.5 A max (AMPS-24E variant) |
Product Description
1240.00 USD （参考价 / est. market price）
Basic Product Information
- Includes battery charging circuit for backup batteries (up to 26 Ah)
- Supervises AC loss, battery presence, and ground faults
- LED indicators for AC power, battery, and ground fault status
- Supports up to 2.4 A continuous output current
- Designed for chassis mounting in Notifier control panels
- UL 864 listed for fire alarm applications
- Provides regulated 24 VDC power for addressable devices and peripherals
Technical Specifications
Version & Model Difference
The AMPS-24/E is the enhanced version of the AMPS-24, featuring additional end-of-line (EOL) supervision for battery and AC power monitoring. The 'E' suffix indicates enhanced supervision. It is compatible with Notifier panels that require EOL supervision on the power supply. The AMPS-24 (without E) lacks this feature and is used in older panels. Both are functionally similar, but the AMPS-24/E is recommended for new installations and upgrades.
Application Scenarios
- Commercial buildings: office towers, shopping malls, hotels
- Industrial facilities: factories, warehouses, power plants
- Institutional buildings: schools, hospitals, government buildings
- Fire alarm system upgrade or retrofit projects
- Replacement of failed power supply modules in existing Notifier panels
- New fire alarm system installations requiring UL listed power supplies
