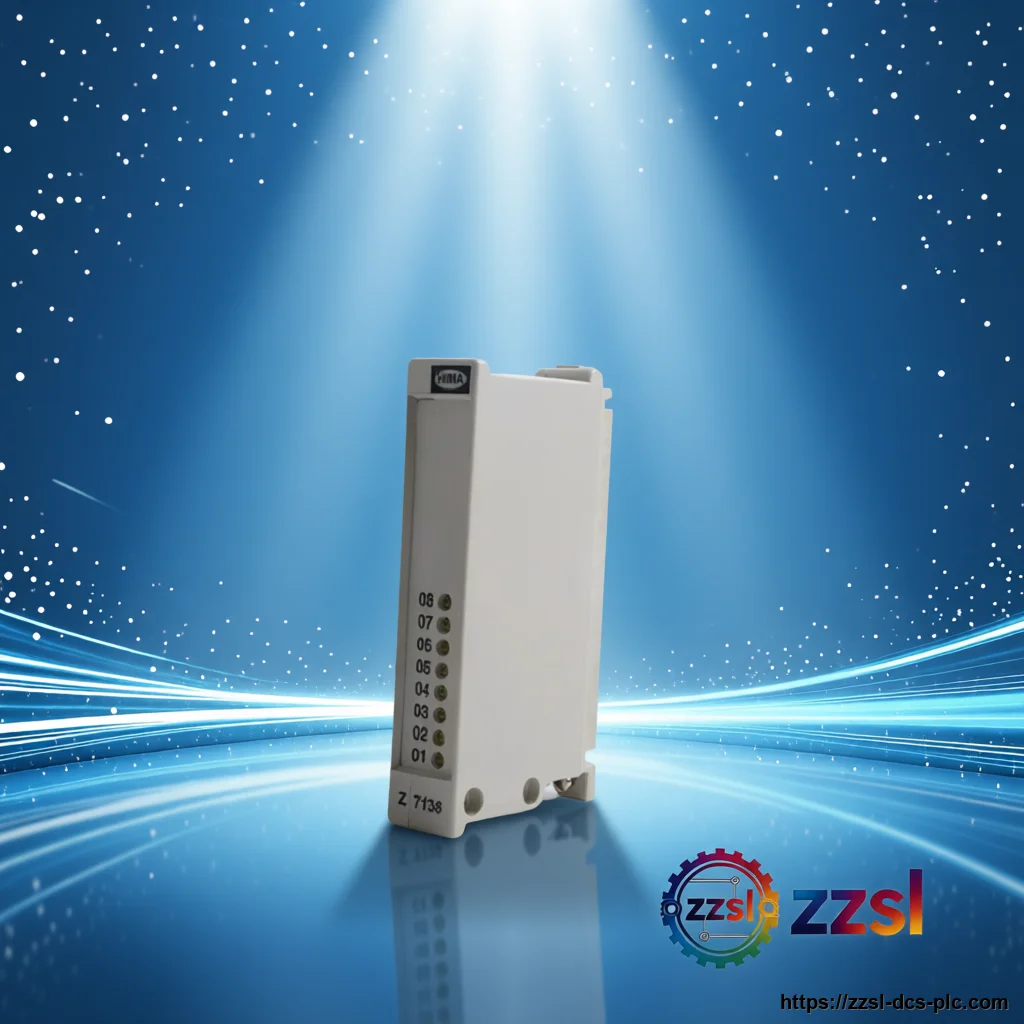

HIMA Cable plug Z7138
['Home', 'Functional Safety', 'Safety I/O', 'HIMA', 'Z7138'] Need HIMA Z7138? Cable plug for HIMA safety cont…
Specifications
| Brand | HIMA |
|---|---|
| Model Number | Z7138 |
| Official Product Name | HIMA Z7138 8-Channel Cable Plug for F3330 / F3331 Safety Output Modules |
| Applicable System | HIMA safety control systems (exact platform to be confirmed) |
| Product Type | Cable plug / I/O terminal board (wiring accessory) |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Compatible modules | HIMA F3330, HIMA F3331 (8-channel safety digital output modules) |
| Number of channels | 8 wiring channels |
| Rated voltage | 24 V DC |
| Status indication | Yellow LED per channel (01-08) |
| Cable options | Without cable, or with pre-fabricated cable (approx. 5 m for /C5 variants) |
| Degree of protection | IP20 (control cabinet) |
| Operating temperature | -25 to +55 C |
| Weight | Approx. 0.08 kg (plug only); approx. 1 kg for the 5 m cable variant |
| Safety suitability | Supports SIL 3 (IEC 61508) loops when used with F3330 / F3331 |
| Country of origin | Germany |
| Product type | Cable plug / I/O terminal board (wiring accessory, not an output module) |
Product Description
Basic Product Information
- Pre-fabricated red and black multi-core wires; /C5 versions include an approx. 5 m cable
- Yellow LED indicators numbered 01-08 for per-channel status feedback
- Supports the line monitoring circuits used by SIL 3 safety loops
- Plug-in design for fast replacement and tidy control-cabinet wiring
- IP20 for control-cabinet installation, 24 V DC signalling
- 8-channel cable plug / terminal board for HIMA F3330 and F3331 safety output modules
Technical Specifications
Version & Model Difference
['Some sources describe Z7138 as 8-channel DO, others as combined DI/DO or a safety controller; confirm exact configuration with HIMA.', 'Verify compatibility with your specific HIMA platform (HIMatrix / HIMax / HiMAT).']
Application Scenarios
- ESD emergency shutdown outputs
- Burner management and fire & gas systems
- Oil & gas, chemical and power plant safety loops
- Public sources describe it as a HIMA safety digital output module (8-channel, 2 A/ch, 24 V DC, SIL 3), though some list combined I/O. Confirm exact type with HIMA.
- HIMA F3 DIO 8/8 01 HIMatrix Digital I/O Module
- HIMA F3237 8-Channel Fail-Safe Safety Digital Output Module
- HIMA Z7108 Safety Module
- HIMA F3330 8-Channel Safety Digital Output Module
