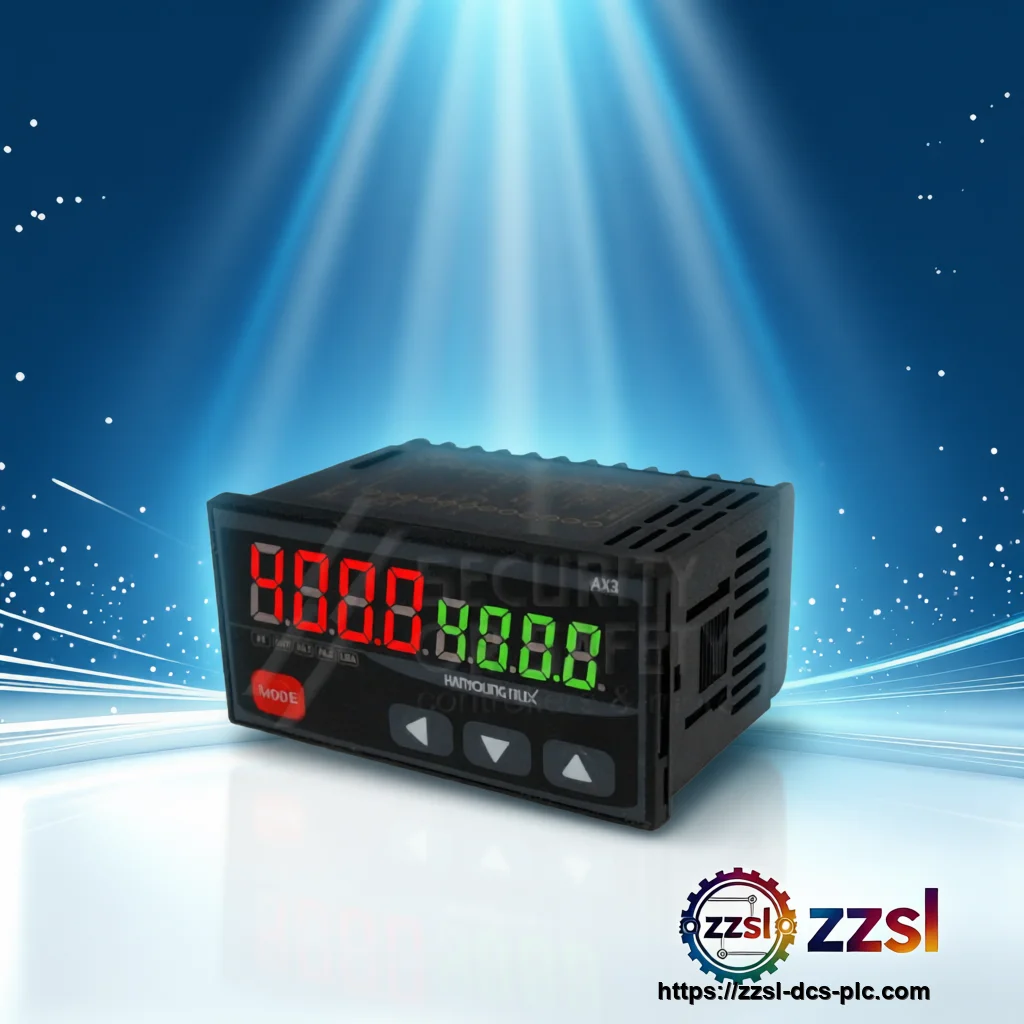

Hanyoung Temperature Controller AX3-1A
Hanyoung
Hanyoung Temperature Controller AX3-1A
Home > Products > Hanyoung > Temperature Controllers Need Hanyoung AX3-1A? Temperature Controller for Industrial temperature control systems. Supplied…
Contact us for current availability and best price of AX3-1A-controller.
Specifications
| Brand | Hanyoung |
|---|---|
| Model Number | AX3-1A |
| Official Product Name | Digital Temperature Controller (1/16 DIN) |
| Applicable System | Industrial temperature control systems |
| Product Type | Temperature Controller |
| Equivalent Standard | DIN 1/16 (48x48mm) |
| Product Status | In Stock |
| Control Output | Relay (1A @ 250VAC) |
| Control Method | PID, ON/OFF, Auto-tuning |
| Sampling Rate | 250 ms |
| Display Resolution | 0.1°C (below 200°C), 1°C (above 200°C) |
| Accuracy | ±0.5% of full scale ±1 digit |
| Power Supply | 100-240VAC, 50/60Hz |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-70°C |
| Humidity | 30-80% RH (non-condensing) |
| Panel Cutout | 45x45mm |
| Dimensions (WxHxD) | 48x48x100mm |
| Weight | Approx. 150g |
| Input Type | Thermocouple: K, J, E, T, R, S, B, L, N, U, W; RTD: Pt100, JPt100; DC voltage: 0-5V, 1-5V, 0-10V; DC current: 0-20mA, 4-20mA |
Product Description
It features a universal input that accepts thermocouples (K, J, E, T, R, S, B, L, N, U, W), RTDs (Pt100, JPt100), and DC voltage/current signals, providing flexibility for a wide range of sensors. The controller offers relay output (1A) for switching heating or cooling devices, and supports ON/OFF or PID control with auto-tuning for optimal performance. With a sampling rate of 250 ms, the AX3-1A ensures fast and accurate temperature readings. Its front panel is IP65-rated, making it suitable for environments with dust and moisture. The controller operates on 100-240V AC power and features a large, easy-to-read LED display with a resolution of 0.1°C for temperatures below 200°C and 1°C above. The device supports both heating and cooling control modes, and includes alarm outputs for process and deviation alarms. The AX3-1A is part of Hanyoung's AX3 series, known for its reliability and ease of use. It is commonly used in plastic molding, packaging machinery, food processing, and laboratory equipment. The controller is designed for panel mounting with a depth of 100mm and comes with a clear instruction manual. Its compact size and robust construction make it a popular choice for OEM applications. The Hanyoung AX3-1A is a compact 1/16 DIN digital temperature controller designed for precise temperature control in various industrial processes.
Basic Product Information
- Relay output (1A) for heating/cooling control
- PID control with auto-tuning and ON/OFF control
- Sampling rate: 250 ms for fast response
- IP65 front panel for dust and water resistance
- Large LED display with 0.1°C resolution
- Alarm outputs for process and deviation alarms
- Compact 1/16 DIN size (48x48mm) for panel mounting
- Universal input: thermocouple, RTD, DC voltage/current
Technical Specifications
Version & Model Difference
The AX3 series includes models with different control outputs: AX3-1A (relay output), AX3-2A (SSR output), AX3-3A (current output), and AX3-4A (triac output). The AX3-1A is the relay output version, suitable for direct switching of contactors or small loads. Other versions may offer faster switching or analog control for specific applications.
Application Scenarios
- Hanyoung HY-L804 Door Switch
- Hanyoung HY-L804 Temperature Controller (HY-L804)
