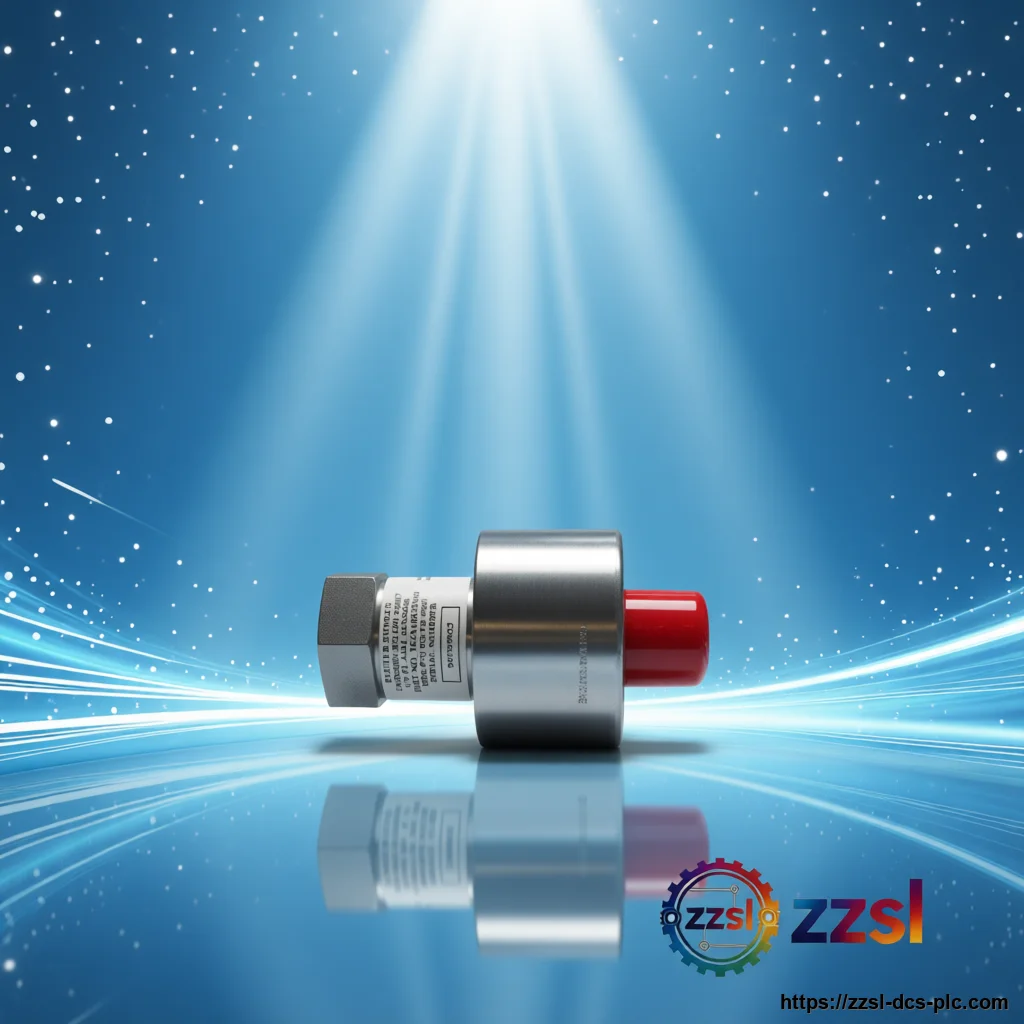

GE Ultraviolet 362A1052P404
Home > Products > GE > Flame Detector GE 362A1052P404 Ultraviolet. For Gas turbine and burner management flame monitoring. Supplied with full traceabi…
Contact us for current availability and best price of 362A1052P404.
Specifications
| Brand | GE (General Electric / Reuter-Stokes / GE Vernova) |
|---|---|
| Model Number | 362A1052P404 |
| Official Product Name | RS-FS-9001 UV Flame Detector |
| Applicable System | Gas turbine and burner management flame monitoring |
| Product Type | Ultraviolet / optical flame detector |
| Equivalent Standard | IEC 61508 SIL 3 (in full FS system) |
| Product Status | Active (legacy turbine spare) |
| Output Signal | 4-20 mA, RS-485, dry contact alarm |
| Supply Voltage | 12-30 VDC (nominal 24 VDC) |
| Response Time | <= 25 ms |
| Process Connection | 3/4 inch NPT |
| Housing Material | AISI 304 / 316 stainless steel, sapphire window |
| Temperature Range | -30 to 150 deg C (up to 235 deg C with cooling) |
| Weight | Approx. 1.0 kg |
| Detection Technology | SiC photodiode, UV (180-260 nm) and IR (1.0-4.5 um) |
Product Description
It uses a silicon-carbide (SiC) photodiode sensing UV/IR radiation, provides a 4-20 mA output and operates from 12-30 VDC (nominal 24VDC) in a stainless-steel housing with a sapphire window. The GE 362A1052P404 (also cataloged as RS-FS-9001) is a Reuter-Stokes ultraviolet flame detector for combustion and gas-turbine monitoring.
Basic Product Information
- 4-20 mA analog output and RS-485 / dry-contact alarm
- Fast flame-out response (<= 25 ms)
- Stainless-steel housing with sapphire viewing window, IP65/IP66
- 3/4 inch NPT mount, hazardous-area versions available
- UV/IR flame detection via silicon-carbide (SiC) photodiode
Technical Specifications
Version & Model Difference
The 362A1052P404 is an upgraded replacement for earlier Reuter-Stokes flame-sensor part numbers (e.g. 362A1052P001). In Speedtronic architecture it interfaces with Mark V / Mark VI / Mark VIe I/O; confirm firmware and terminal-board compatibility.
Application Scenarios
- Gas turbine flame monitoring
- Industrial burners and boiler combustion systems
- Furnace and process-heating flame safeguarding
- Spare / replacement detector for GE turbine packages
- GE CR193D110L003020 Vacuum Contactor
- GE IC695ACC302 PACSystems Auxiliary Smart Battery Module
- GE IC695PSD040 RX3i 40W Power Supply Module
- GE IC200PWR002 VersaMax 24 VDC Power Supply Module
- GE IC200MDL650 VersaMax 32-Point 24 VDC Input Module
- GE IC200MDL750 VersaMax 32-Point 12/24 VDC Output Module
- GE IC200ALG264 VersaMax Analog Input Module
- GE IC695CRU320 PACSystems RX3i Redundancy CPU Module
Frequently Asked Questions
What is the GE 362A1052P404?
It is a GE Reuter-Stokes RS-FS-9001 UV/IR flame detector using a silicon-carbide photodiode for turbine and burner monitoring.
What output does it provide?
It provides a 4-20 mA analog output, plus RS-485 and a dry-contact alarm signal.
What supply voltage does it need?
It operates from 12-30 VDC, typically 24 VDC.
What is the response time?
It detects flame-out in 25 ms or less.
