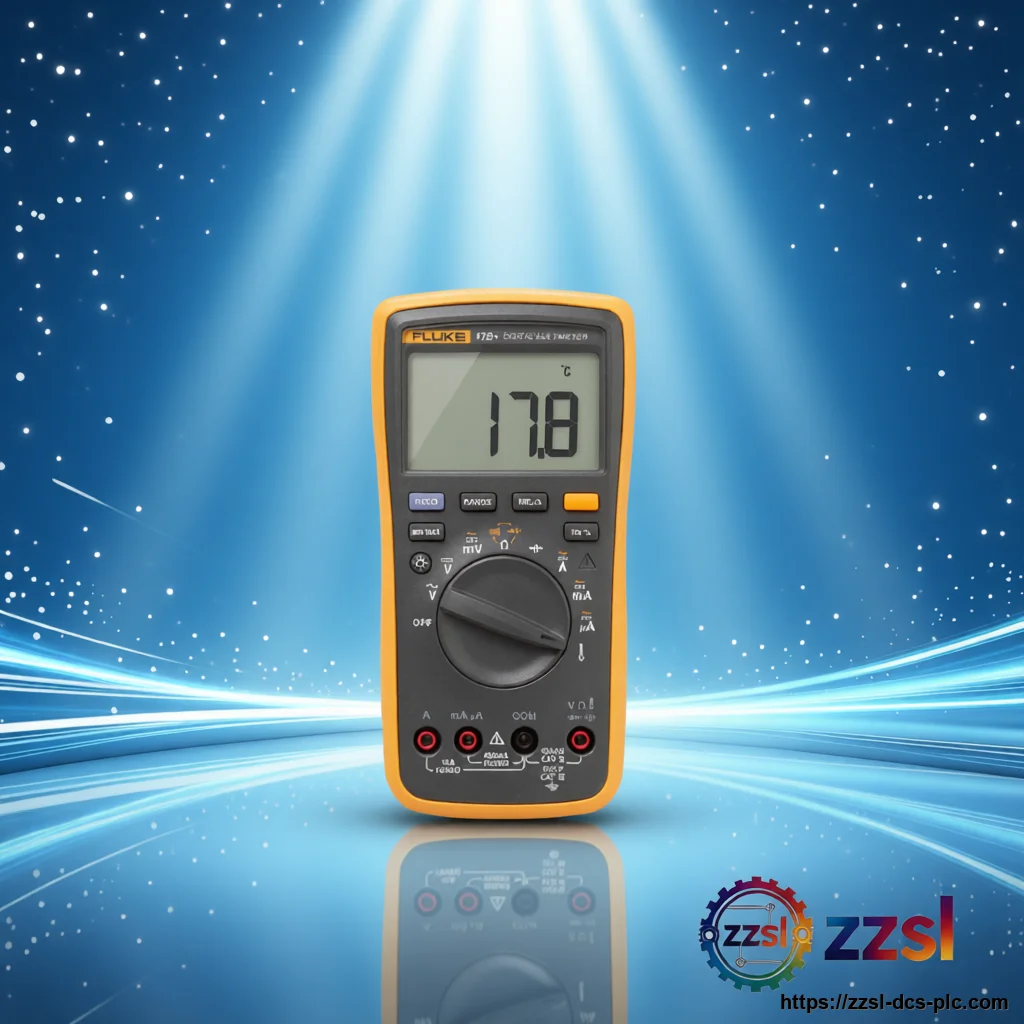

Fluke Digital Multimeter F17BMAX-01
Home > Products > Fluke > Digital Multimeters Need Fluke F17BMAX-01? Digital Multimeter for Industrial electrical testing, HVAC, panel maintenance. Su…
Specifications
| Brand | Fluke |
|---|---|
| Model Number | F17BMAX-01 |
| Official Product Name | Fluke 17B MAX Digital Multimeter |
| Applicable System | Industrial electrical testing, HVAC, panel maintenance |
| Product Type | Digital Multimeter |
| Equivalent Standard | IEC 61010-1:2010, CAT III 600V |
| Product Status | In Stock |
| DC Voltage Accuracy | ±(0.5% + 2 counts) |
| AC Voltage Accuracy | ±(1.0% + 3 counts) (true-RMS) |
| DC Voltage Range | 0.1 mV to 600 V |
| AC Voltage Range | 0.1 mV to 600 V (50/60 Hz) |
| Resistance Range | 0.1 Ω to 40 MΩ |
| Capacitance Range | 1 nF to 1000 µF |
| Frequency Range | 10 Hz to 100 kHz |
| Temperature Range | -40°C to 400°C (-40°F to 752°F) |
| Safety Rating | CAT III 600V, CAT II 1000V |
| Power Supply | 2 x AAA batteries (included) |
| Dimensions | 150 x 70 x 30 mm (5.9 x 2.8 x 1.2 in) |
| Display Counts | 4000 counts |
Product Description
It offers 4000 counts with a 0.5% basic DC accuracy, measuring AC/DC voltage up to 600V, resistance up to 40 MΩ, capacitance up to 1000 µF, frequency up to 100 kHz, and temperature from -40°C to 400°C. The meter is CAT III 600V rated, ensuring safety in industrial environments. Its backlit LCD display and built-in flashlight allow for easy use in dimly lit areas, while the rugged, overmolded case protects against drops up to 1 meter. The Fluke F17BMAX-01 is a compact, true-RMS digital multimeter designed for professional electricians and industrial maintenance technicians.
Basic Product Information
- CAT III 600V safety rating for industrial power distribution systems
- 4000-count LCD display with bright backlight and large digits for easy reading
- Built-in flashlight to illuminate work area in dark enclosures
- Measures AC/DC voltage, resistance, capacitance, frequency, temperature, and diode/continuity
- Auto-ranging with manual range override for flexibility
- Data hold and MIN/MAX recording to capture transient readings
- Low-pass filter for accurate VFD (variable frequency drive) measurements
- Rugged overmolded case with IP54 rating for dust and water resistance
- 1-meter drop survival for durability in field use
- True-RMS AC voltage and current measurements for accurate readings on non-linear loads
Technical Specifications
Version & Model Difference
The Fluke F17BMAX-01 is an enhanced version of the original Fluke 17B. Key differences include a higher safety rating (CAT III 600V vs CAT II 600V), true-RMS measurement capability (the original 17B was average responding), a backlit display with flashlight, and a more rugged IP54-rated case. The F17BMAX-01 also adds frequency and temperature measurement functions, which were not available on the original 17B. The MAX version is designed for industrial environments, whereas the original 17B was more suited for basic electrical work.
