Festo · PLC Module
VZQA-C-M22U-15-GG-V4V4N-4-3022830

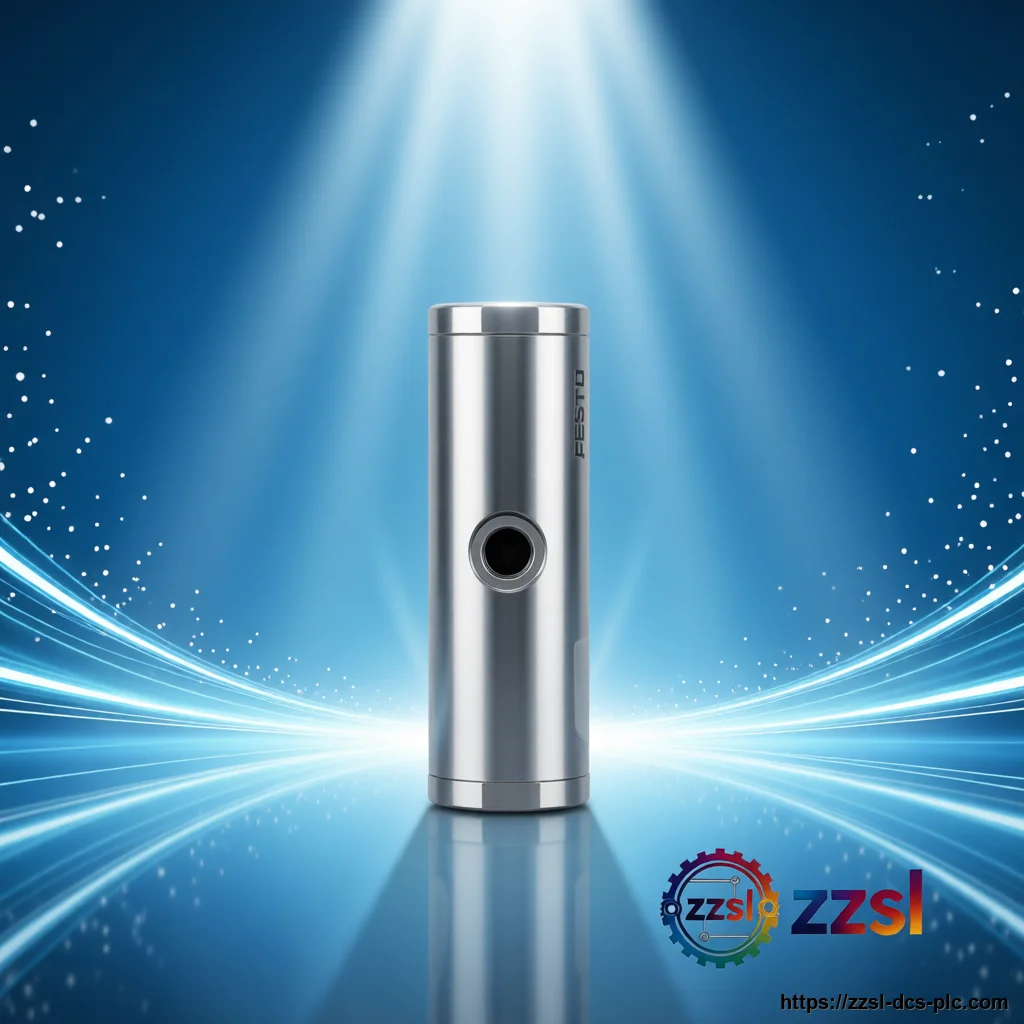

Festo Pinch Valve VZQA-C-M22U-15-GG-V4V4N-4 (3022830)
Festo
Festo Pinch Valve VZQA-C-M22U-15-GG-V4V4N-4 (3022830)
['Home', 'Pneumatic Valves', 'Festo', '3022830'] Need Festo VZQA-C-M22U-15-GG-V4V4N-4 (3022830)? Pinch Valve for Pneuma…
Specifications
| Brand | Festo |
|---|---|
| Model Number | 3022830 (VZQA-C-M22U-15-GG-V4V4N-4) |
| Official Product Name | VZQA Pinch Valve (2/2 NC, Mono) |
| Applicable System | Pneumatic and process media control |
| Product Type | Pinch Valve |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Active |
| Lifecycle note | Available |
| Festo code | 3022830 (VZQA-C-M22U-15-GG-V4V4N-4) |
| Nominal size | DN15 |
| Process connection | G1/2 |
| Function | 2/2-way, normally closed, mono |
| Medium pressure | 0-4 bar |
| Pilot pressure | 1-6.5 bar |
| PN rating | PN10 |
| Body material | High-alloy stainless steel 1.4435 |
| Seals | FPM + NBR |
| Weight | Approximately 431 g |
| Operating temperature | -5 to 60 C |
| Product | Pinch valve |
Product Description
Basic Product Information
- 2/2-way normally-closed mono configuration
- 0-4 bar medium / 1-6.5 bar pilot pressure, PN10
- High-alloy stainless steel 1.4435; FPM + NBR seals; 431 g
- Pinch valve, nominal size DN15, G1/2 connection
Technical Specifications
Version & Model Difference
- The VZQA pinch-valve range covers multiple sizes, materials and functions; confirm the exact VZQA-C-M22U-15-GG-V4V4N-4 configuration with the supplier before ordering.
Application Scenarios
- Abrasive and viscous media control
- Hygienic and process piping
- Pneumatic dosing and shut-off
- The pinch valve weighs approximately 431 g and operates from -5 to 60 C.
