SIEN-M12NB-PS-K-LPA

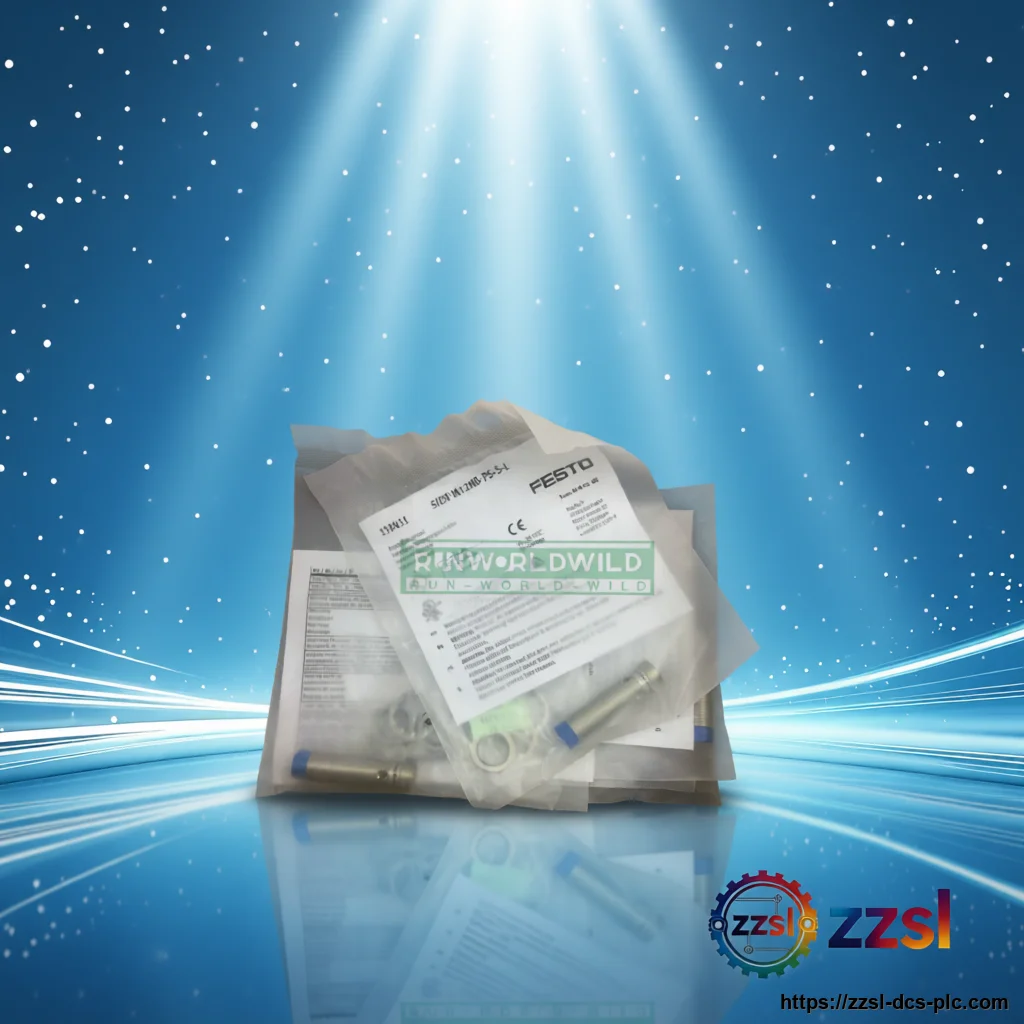

Festo Inductive proximity sensor SIEN-M12NB-PS-K-LPA
Festo
Festo Inductive proximity sensor SIEN-M12NB-PS-K-LPA
Home / Sensors / Proximity Sensors / Festo SIEN-M12NB-PS-K-LPA Need Festo SIEN-M12NB-PS-K-LPA? Inductive proximity sensor for Industrial position and object de…
Specifications
| Brand | Festo |
|---|---|
| Model Number | SIEN-M12NB-PS-K-LPA |
| Official Product Name | Inductive proximity sensor, M12, PNP, 4 mm, non-flush |
| Applicable System | Industrial position and object detection |
| Product Type | Inductive proximity sensor |
| Equivalent Standard | EN 60947-5-2; CE, c UL us, UKCA, RoHS |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Thread / size | M12x1, non-flush |
| Rated operating distance | 4 mm |
| Output | PNP, normally-open, 200 mA |
| Supply voltage | 10-30 V DC |
| Cable | 3-wire, 2.5 m PVC |
| Protection | IP65 / IP67 |
| Housing material | PA-reinforced (polyamide) |
| Weight | 113 g |
| Ambient temperature | -25 to 70 C |
| Sensing principle | Inductive |
Product Description
Basic Product Information
- PNP normally-open switching output
- 4 mm rated operating distance
- 10-30 V DC supply, 200 mA, IP65/IP67
- M12x1 non-flush inductive sensor
Technical Specifications
Version & Model Difference
- ['SIEN-M12NB-PS-K-LPA (538329) is the PA-housing, PVC-cable variant', 'SIEN-M12NB-PS-K-L is the brass/PBTP-housing variant (90 g)', 'Other SIEN variants offer PNP/NPN and flush/non-flush options']
Application Scenarios
- Machine position detection
- Conveyor object sensing
- Industrial automation and packaging
