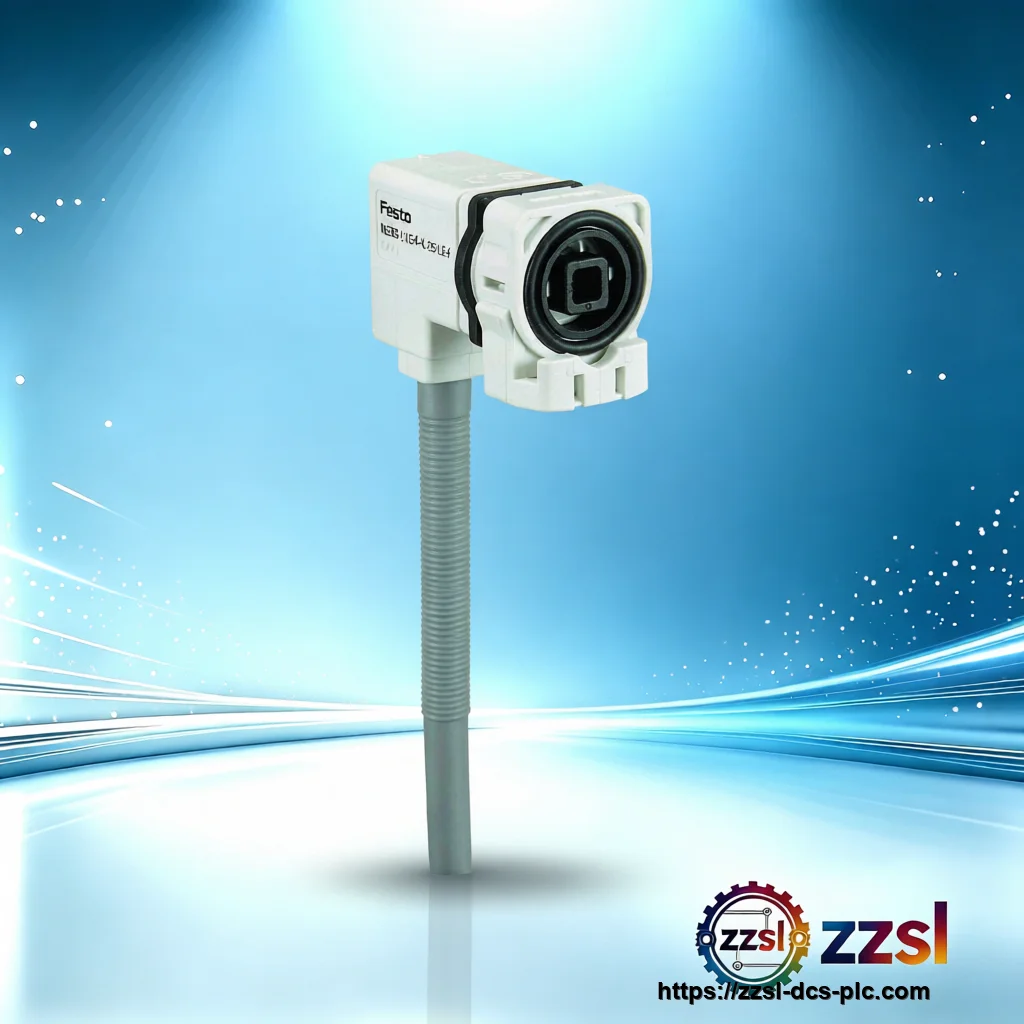

Festo Sensor Connecting Cable NEBS-L1G4-K-2.5-LE4
CABLENEBS-L1G4-K-25-LE4FESTO
Festo
Festo Sensor Connecting Cable NEBS-L1G4-K-2.5-LE4
[{'name': 'Home', 'url': '/'}, {'name': 'Festo', 'url': '/brand/festo'}, {'…
Specifications
| Brand | Festo |
|---|---|
| Model Number | NEBS-L1G4-K-2.5-LE4 |
| Official Product Name | NEBS-L1G4-K-2.5-LE4 Connecting Cable |
| Applicable System | Pneumatic and sensor connection systems |
| Product Type | Sensor Connecting Cable |
| Equivalent Standard | RoHS (EU/UK) compliant |
| Product Status | Commercialized |
| Connection 1 | Rectangular L1 design socket, 4-pin, angular |
| Connection 2 | Open end, 4-wire |
| Conductor Cross Section | 4 x 0.17 mm2 |
| Rated Voltage | 0 to 30 VDC |
| Rated Current | 1 A at 40 deg C |
| Surge Resistance | 0.8 kV |
| Cable Diameter | 4.1 mm |
| Bending Radius (fixed) | >=13 mm |
| Bending Radius (moving) | >=42 mm |
| Protection | IP40 (assembled) |
| Ambient Temperature | -20 to 60 deg C |
| Material | PVC sheath (grey), PA housing (white) |
| Product Weight | 53 g |
| GTIN | 4052568058890 |
| Cable Length | 2.5 m |
Product Description
It has a rectangular 4-pin L1 socket on the field-device side and an open end on the controller side, rated 0 to 30 VDC and 1 A with IP40 protection when assembled. The Festo NEBS-L1G4-K-2.5-LE4 is a 2.5 m pre-assembled connecting cable for pressure sensors such as the SPAB series.
Basic Product Information
- Rectangular L1 design 4-pin socket (angular) on the field-device side.
- Open-end termination on the controller side for flexible wiring.
- PVC grey sheath with PA white housing, IP40 when assembled.
- Rated 0 to 30 VDC, 1 A current load, -20 to 60 deg C ambient.
- 2.5 m cable with 4 x 0.17 mm2 conductors for 4-signal wiring.
Technical Specifications
Version & Model Difference
Application Scenarios
- Wiring of Festo pressure sensors to controller cabinets.
- Signal connection in pneumatic automation panels.
- Field device hook-up with open-end controller termination.
- Festo SIEN-M12NB-PS-K-LPA Proximity Sensor
- Festo ZRF 30X165 S 24R Toothed Belt Linear Axis
- Schneider Electric VX5VPM003 Enclosure Door Fan for Altivar
- Schneider Electric VX5VPM001 Fan Kit for Altivar Process Drives
- Festo VUVB-S-M42-AZD-QX-1C1 Solenoid Valve
- Festo VAVC-Q2-M22U-15-N (3019151) Seal Cartridge
- Festo VZQA-C-M22U-15-GG-V4V4N-4 (3022830) Pinch Valve
- Festo NEBS-L1G4-K-2.5-LE4 Vacuum Suction Gripper
Frequently Asked Questions
What are the ends of the NEBS-L1G4-K-2.5-LE4 cable?
It has a rectangular L1 4-pin socket on the sensor side and an open end for controller wiring.
What is the cable length and conductor size?
The cable is 2.5 m long with 4 conductors of 0.17 mm2 each.
What voltage and current is it rated for?
It is rated 0 to 30 VDC with a 1 A current load at 40 deg C.
What protection rating does the cable have?
It is IP40 when assembled, with a PVC sheath rated for -20 to 60 deg C ambient.
