D4E225-CC01-39

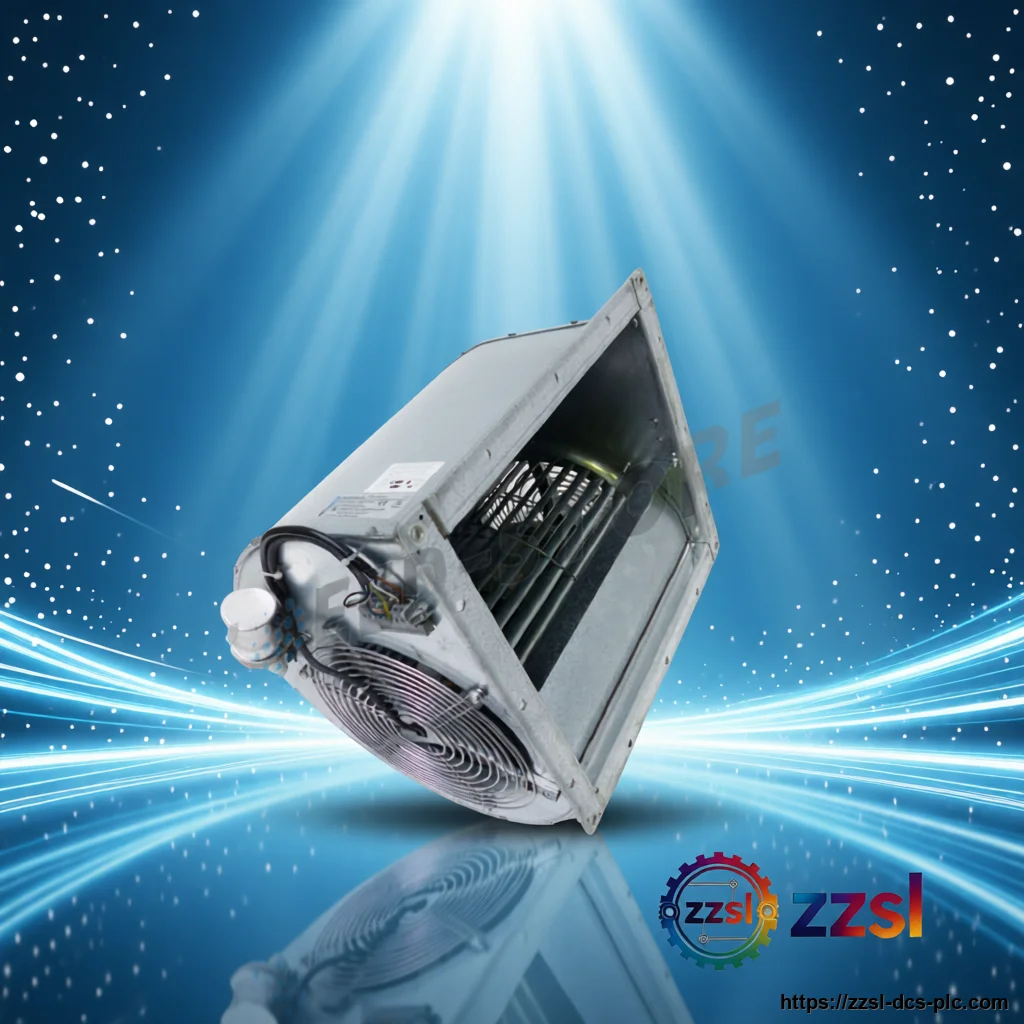

ebm-papst Centrifugal Fan D4E225-CC01-39
ebm-papst
ebm-papst Centrifugal Fan D4E225-CC01-39
Home > Products > ebm-papst > Centrifugal Fan Need ebm-papst D4E225-CC01-39? Centrifugal Fan for Ventilation and cooling systems. Supplied with full t…
Specifications
| Brand | ebm-papst |
|---|---|
| Model Number | D4E225-CC01-39 |
| Official Product Name | Centrifugal Fan |
| Applicable System | Ventilation and cooling systems |
| Product Type | Centrifugal Fan |
| Equivalent Standard | CE, UL |
| Product Status | In Stock |
| Frequency | 60 Hz |
| Current | 0.95 A |
| Power Consumption | 210 W |
| Airflow | 1050 CFM (cubic feet per minute) |
| Speed | 1550 RPM |
| Noise Level | 62 dB(A) |
| Weight | 4.5 kg |
| Dimensions (Diameter) | 225 mm |
| Housing Material | Galvanized Steel |
| Impeller Material | Aluminum |
| Protection Class | IP44 |
| Voltage | 230 V AC |
Product Description
This model features a robust construction with a forward-curved impeller, ensuring efficient airflow even against high static pressures. The fan operates on a single-phase AC power supply (230V) and is engineered for continuous operation, making it a reliable choice for OEM equipment and retrofit projects. With a power consumption of 210W and a current draw of 0.95A at 60Hz, the D4E225-CC01-39 delivers an airflow of up to 1050 CFM (cubic feet per minute) while maintaining low noise levels. The fan's housing is made of galvanized steel, providing excellent corrosion resistance and durability. The impeller is dynamically balanced to minimize vibration, ensuring smooth operation and extended service life. The D4E225-CC01-39 is part of ebm-papst's renowned D4E series, known for its energy efficiency and compact design. It is suitable for a wide range of applications, including HVAC systems, cleanrooms, telecommunications equipment, and industrial machinery. The fan is available as a new original spare part, ensuring compatibility with existing systems and easy replacement. The ebm-papst D4E225-CC01-39 is a high-performance centrifugal fan designed for demanding industrial ventilation and cooling applications.
Basic Product Information
- Single-phase AC motor (230V, 60Hz)
- Compact design for space-constrained installations
- Galvanized steel housing for corrosion resistance
- Dynamically balanced impeller for reduced vibration
- Long service life with continuous operation capability
- High efficiency forward-curved impeller
Technical Specifications
Version & Model Difference
The D4E225-CC01-39 is a specific model within the ebm-papst D4E225 series. Compared to other models in the series, this version is optimized for 60Hz operation (common in North America) and features a higher airflow capacity. It differs from the D4E225-CC01-38 (which operates at 50Hz) in terms of motor winding and performance characteristics. The -39 suffix indicates the specific electrical configuration and mounting options.
Application Scenarios
- ebm-papst W2E200-HK38-01 230 V AC Axial Fan
- ebm-papst A4E500AE0301 500 mm Axial Fan
- ebm-papst W2E200-HK38 Axial Fan
- ebm-papst R3G250-RE07-20 EC Centrifugal Fan
- ebm-papst R4E355-RM03-05 Centrifugal Fan (R4E355-RM03-05)
