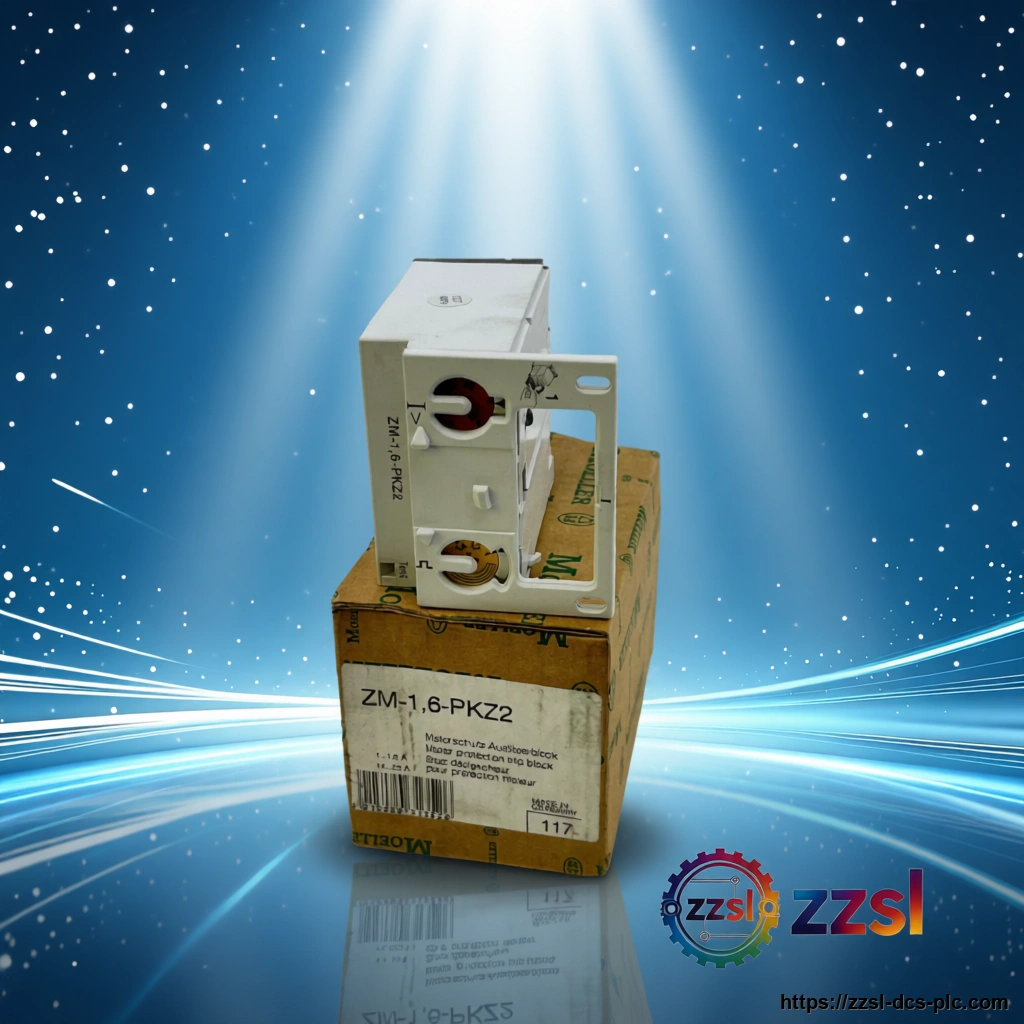

Eaton Motor protector trip block ZM-16-PKZ2
ZM-16-PKZ2
Eaton
Eaton Motor protector trip block ZM-16-PKZ2
Home > Eaton > Motor Protection Accessories > ZM-16-PKZ2 Need Eaton ZM-16-PKZ2? Motor protector trip block for PKZ2 motor protective circuit breaker s…
Specifications
| Brand | Eaton (Moeller) |
|---|---|
| Model Number | ZM-16-PKZ2 |
| Official Product Name | Moeller ZM-PKZ2 motor protector trip block |
| Applicable System | PKZ2 motor protective circuit breaker systems |
| Product Type | Motor protector trip block (trip module) |
| Equivalent Standard | IEC/EN 60947-4-1, VDE 0660, UL, CSA |
| Product Status | In Stock |
| Rated uninterrupted current (Iu) | 16 A |
| Adjustable thermal trip range (Ir) | 10 to 16 A |
| Adjustable magnetic trip range (Irm) | 130 to 220 A |
| Rated operational voltage (Ue) | Up to 690 V AC |
| Motor rating AC-3 at 400 V | 7.5 kW |
| Motor rating AC-3 at 690 V | 12.5 kW |
| HP rating (3-phase) | 3 HP at 200V, 5 HP at 230V, 10 HP at 460V, 10 HP at 575V |
| Short-circuit release | Non-delayed, factory set 12 x Iu |
| Phase failure sensitivity | Yes (IEC/EN 60947-4-1) |
| Standards and approvals | IEC/EN 60947-4-1, VDE 0660, UL, CSA |
| Poles | 3-pole |
Product Description
It provides an adjustable thermal overload release of 10 to 16 A and an adjustable magnetic short-circuit release of 130 to 220 A, protecting three-phase motors up to 12.5 kW at 690 V. The module plugs into a PKZ2 base unit to form a complete manual motor protector and is suitable for the protection of EEx e (increased-safety) motors. It is phase-failure sensitive per IEC/EN 60947-4-1 with temperature compensation and is approved to UL and CSA. The Eaton Moeller ZM-16-PKZ2 is a 3-pole motor-protector trip module (trip block) for the PKZ2 motor-protective circuit breaker system.
Basic Product Information
- Adjustable magnetic short-circuit release 130 to 220 A (8.5 to 14 x Iu)
- Suitable for protection of EEx e (increased-safety) motors
- Temperature compensation for stable settings across ambient range
- Plugs into PKZ2 base module to form a complete motor protector
- Adjustable thermal overload release 10 to 16 A with phase-failure sensitivity
Technical Specifications
Version & Model Difference
ZM-16-PKZ2 is the 10 to 16 A thermal trip module for the PKZ2 system; it complements the ZM-10-PKZ2 (6 to 10 A) and ZM-25-PKZ2 (16 to 25 A) sizes. All ZM-PKZ2 modules share the same plug-in form and require a PKZ2 base module.
Application Scenarios
- Overload and short-circuit protection of three-phase motors up to 12.5 kW at 690 V
- Protection of EEx e increased-safety motors in hazardous areas
- Manual motor starters in industrial control panels and MCCs
- Retrofit of existing Moeller PKZ2 motor control systems
- Eaton 57701-451 Eclipse Series Digital Counter / Timer / Process Meter
- Eaton 99-5835-01 Power I/O Board for LMR Plus Controllers
- Eaton 4A55765H02 Diesel Plus Power I/O Board
- Eaton E50DR1 Heavy-Duty Plug-In Limit Switch (Side Rotary)
- Eaton 5AHLE-125A AHLE Medium Voltage Fuse (125 A, 4.8 kV)
- Eaton DILM12-XSPD Diode Suppressor for DC Contactor Coils
- Eaton AN56GN0AB Freedom NEMA Size 2 Reversing Motor Starter
- Eaton DILM170 3-Pole AC Contactor
Frequently Asked Questions
Is ZM-16-PKZ2 a standalone device?
No, it is a trip module that plugs into a PKZ2 base module to form a complete motor protective circuit breaker.
What are its adjustable trip ranges?
Thermal overload release is adjustable 10 to 16 A and the magnetic short-circuit release 130 to 220 A (8.5 to 14 x Iu), factory set at 12 x Iu.
Can it protect increased-safety motors?
Yes, it is suitable for the protection of EEx e motors and is phase-failure sensitive per IEC/EN 60947-4-1.
What motor power can it handle?
Up to 7.5 kW at 400 V and 12.5 kW at 690 V AC-3, corresponding to 10 HP at 460/575 V three-phase.
