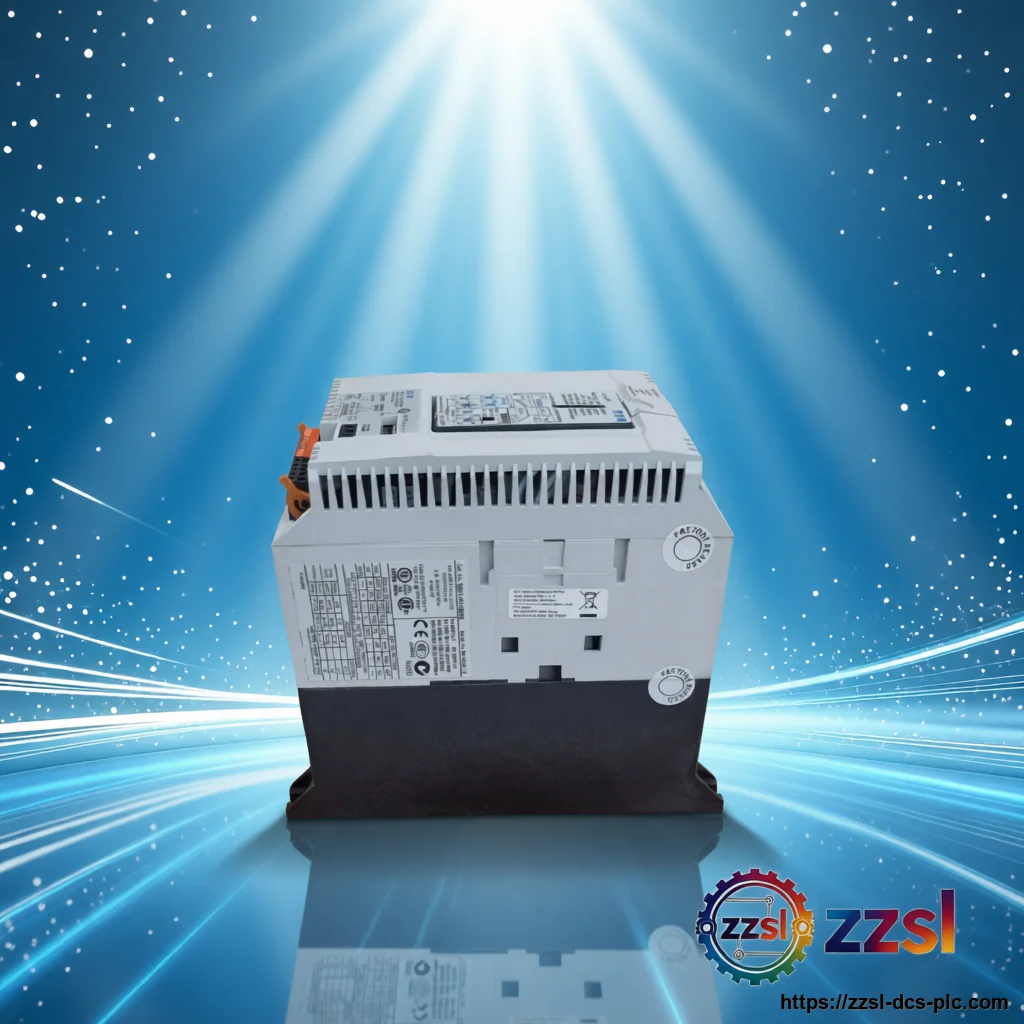

Eaton Soft Starter S801R13N3S
Home > Products > Eaton > Soft Starters Need Eaton S801R13N3S? Soft Starter for Three-phase AC induction motors. Supplied with full traceability and d…
Specifications
| Brand | Eaton |
|---|---|
| Model Number | S801R13N3S |
| Official Product Name | S801 Soft Starter, 13A, 3-Phase, 200-600V AC |
| Applicable System | Three-phase AC induction motors |
| Product Type | Soft Starter |
| Equivalent Standard | IEC 60947-4-2 |
| Product Status | In Stock |
| Rated Voltage | 200-600V AC, 3-phase |
| Motor Power @ 400V | 7.5 kW (10 HP) |
| Motor Power @ 230V | 3 kW (4 HP) |
| Starting Mode | Soft start, soft stop, kick-start |
| Overload Protection | Electronic, adjustable class 10 |
| Control Voltage | 24V AC/DC or 110-240V AC (selectable) |
| Width | 45 mm |
| Degree of Protection | IP20 (terminals), IP00 (unit) |
| Standards | IEC 60947-4-2, UL 508, CSA C22.2 No. 14 |
| Rated Current (AC-53a) | 13 A |
Product Description
It is rated for 13 amps at 200-600V AC, making it suitable for a wide range of industrial applications. This soft starter reduces mechanical stress on the motor and driven equipment, extends equipment life, and minimizes electrical disturbances on the power supply. The S801R13N3S features a compact design that saves panel space, with a width of just 45 mm. It offers a variety of standard features including electronic overload protection, phase loss protection, and a built-in bypass contactor for energy efficiency. The unit is controlled via a simple keypad and can be configured for various starting modes such as soft start, soft stop, and kick-start. This soft starter is part of Eaton's S801 series, which is known for its reliability and ease of installation. It is designed for simple integration into existing motor control systems and is compatible with a range of accessories, including remote operator stations and communication modules. The S801R13N3S is an ideal choice for OEMs and panel builders looking for a cost-effective motor starting solution. The Eaton S801R13N3S is a compact, three-phase soft starter from the S801 series, designed to provide smooth, controlled starting and stopping of AC induction motors.
Basic Product Information
- Rated 13A at 200-600V AC, 3-phase
- Electronic overload protection with adjustable class
- Built-in bypass contactor for energy efficiency
- Phase loss and phase reversal protection
- Simple keypad programming with LED display
- Compact 45mm width saves panel space
Technical Specifications
Version & Model Difference
The S801 series includes various models with different current ratings and voltage ranges. The S801R13N3S is the 13A version for 200-600V AC. Other versions include S801R17N3S (17A), S801R24N3S (24A), etc. The 'R' indicates the frame size, and 'N3S' denotes the voltage class and control type. All models share the same compact design and features, but differ in current capacity and terminal sizes.
