Eaton · PLC Module
PKE-XTU-12

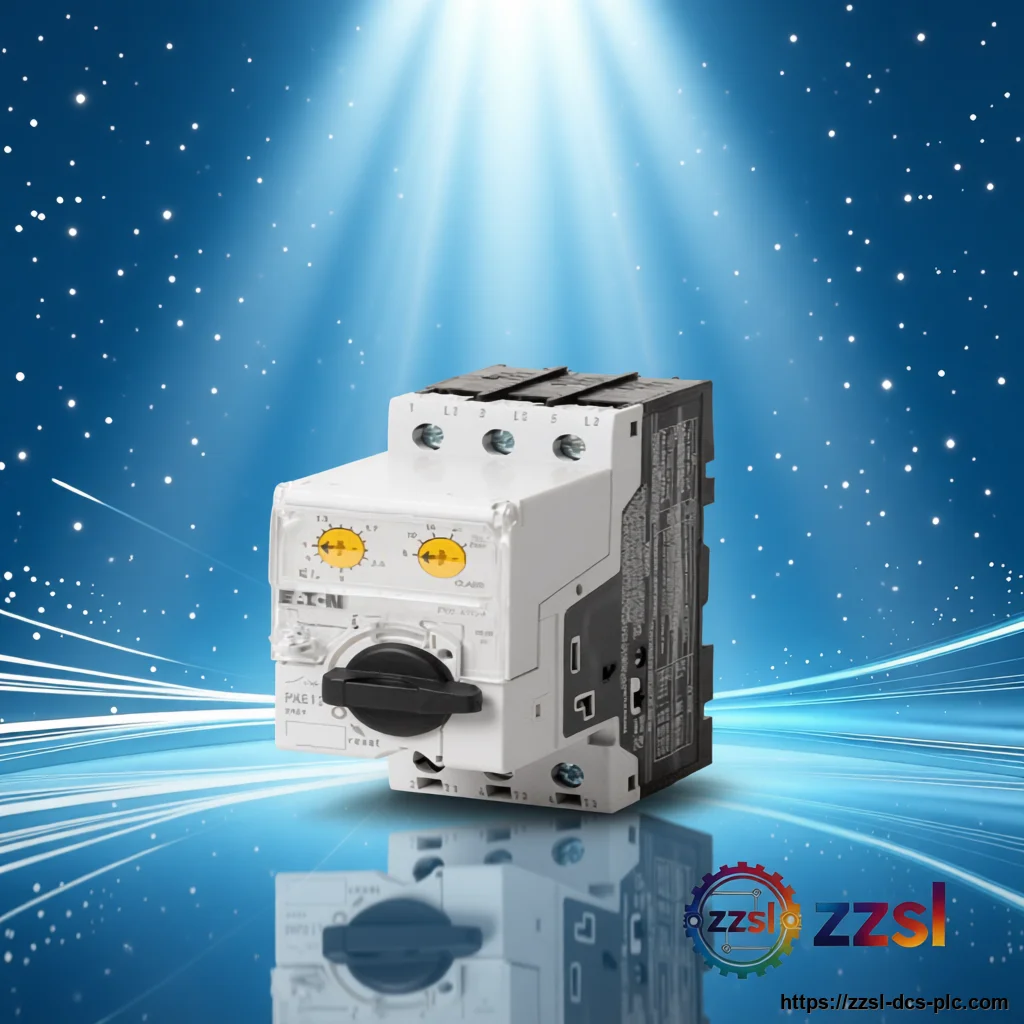

Eaton Motor-protective circuit-breaker trip PKE-XTU-12
Eaton
Eaton Motor-protective circuit-breaker trip PKE-XTU-12
['Home', 'Motor Protection', 'Eaton PKE', 'PKE-XTU-12'] Need Eaton PKE-XTU-12? Motor-protective circuit-breaker trip mo…
Specifications
| Brand | Eaton |
|---|---|
| Model Number | PKE-XTU-12 |
| Official Product Name | PKE Trip Module |
| Applicable System | PKE motor-protective circuit breakers |
| Product Type | Motor-protective circuit-breaker trip module |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Active |
| Lifecycle note | Available (contact supplier for lead time) |
| Protection | Electronic overload + delayed short-circuit (15 x Ir) |
| For base units | PKE12, PKE32 |
| Dimensions | 41.6 x 64.2 x 45 mm |
| Weight | 0.086 kg |
| Protection | IP20 |
| Voltage | 690 V |
| Adjustable current | 3-12 A |
Product Description
Basic Product Information
- Delayed short-circuit trip at 15 x Ir
- Fits PKE12 and PKE32 bases
- Electronic trip module for PKE range
Technical Specifications
Version & Model Difference
- ['Contact supplier for exact specifications regarding PKE-XTU-12 options.']
Application Scenarios
- Motor protection up to 12 A
- Branch circuit protection
- Machine motor control
- An Eaton electronic trip module for PKE12/PKE32, adjustable 3-12 A.
