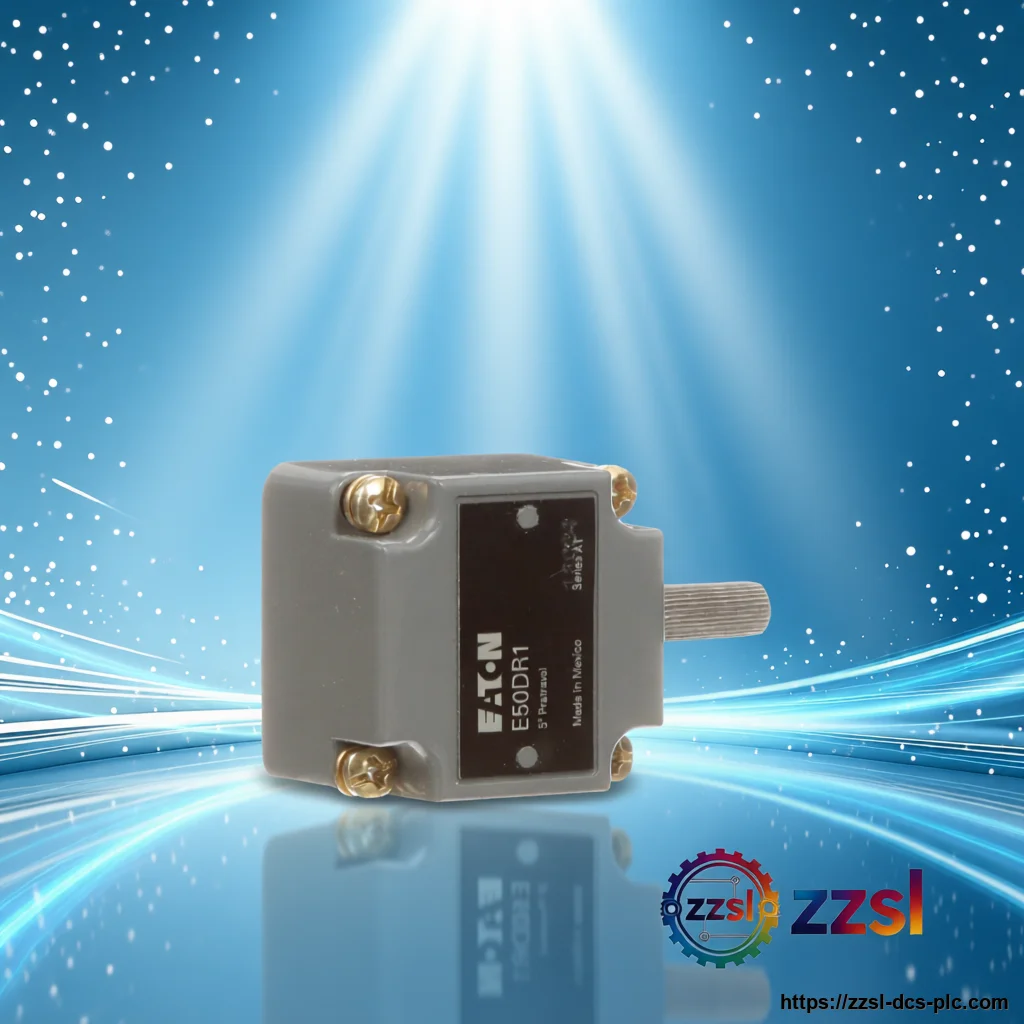

Eaton Limit switch operating head E50DR1
Home > Eaton > Limit Switches > E50DR1 Need Eaton E50DR1? Limit switch operating head for E50 heavy-duty plug-in limit switch series. Supplied with fu…
Specifications
| Brand | Eaton |
|---|---|
| Model Number | E50DR1 |
| Official Product Name | E50 NEMA Heavy Duty Plug-In Limit Switch |
| Applicable System | E50 heavy-duty plug-in limit switch series (head requires an E50 switch body and lever actuator) |
| Product Type | Limit switch operating head (side rotary) |
| Equivalent Standard | NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67 per Eaton datasheet |
| Product Status | In Stock |
| Switch Type | Side rotary limit switch operating head |
| Actuator | Side rotary, standard spring return (lever actuator sold separately) |
| Pretravel | 5 degrees |
| Overtravel | 5 degrees |
| Differential Travel | 90 degrees |
| Total Travel | 90 degrees |
| Operating Force | 2.2 N |
| Operating Torque | 3 in-lb |
| Terminal Type | Screw terminals |
| Enclosure Material | Die-cast zinc |
| Environmental Rating | NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13; IP67 |
| Operating Temperature | -12 C to +94 C (10 F to 200 F) |
| Dimensions (L x H x W) | 1.05 in x 2.46 in x 1.54 in |
| Weight | 0.3 lb (0.14 kg) |
| Certifications | UL Listed, UL Recognized, CSA Certified, CE Marked, RoHS |
| UPC | 782113290560 |
| Series | E50 heavy-duty plug-in |
Product Description
Its standard spring-return head operates the contacts with 5 degrees of pretravel and offers 90 degrees of total travel, making it suitable for lever and cam actuation on machinery. The die-cast zinc housing delivers NEMA 1, 3, 3S, 4, 4X, 6, 6P and 13 sealing with IP67 protection when assembled with an E50 body. The plug-in construction allows a worn head to be replaced quickly without disturbing the field wiring, which reduces maintenance downtime. The head requires a separate E50 switch body and a lever actuator to form a complete switch. The Eaton E50DR1 is the side rotary operating head of the E50 heavy-duty plug-in limit switch family, a NEMA-rated switch design built for demanding industrial position sensing.
Basic Product Information
- CW and CCW operation, easily convertible to clockwise-only or counterclockwise-only actuation
- Heavy-duty die-cast zinc enclosure rated NEMA 1, 3, 3S, 4, 4X, 6, 6P and 13 with IP67 sealing when assembled
- Wide operating temperature range from -12 C to +94 C (10 F to 200 F)
- UL Listed, UL Recognized, CSA Certified and CE Marked; RoHS compliant
- Plug-in head design enables fast head replacement without rewiring
- Side rotary operating head with standard spring return; 5 degrees pretravel and 5 degrees overtravel
Technical Specifications
Version & Model Difference
The E50DR1 is the side rotary operating head of the E50 heavy-duty plug-in limit switch range; other heads in the same series use different actuators. It is supplied as a head only and must be combined with an E50 switch body (for example a single-pole or double-pole E50 plug-in body) plus a matching lever actuator to form a complete switch.
Application Scenarios
- Machine tool, packaging and assembly equipment position sensing
- Conveyor and material-handling end-of-travel detection
- Heavy industrial door, gate and safety interlock monitoring
- Washdown, coolant and outdoor areas where NEMA 4X or IP67 sealing is required
- Eaton 57701-451 Eclipse Series Digital Counter / Timer / Process Meter
- Eaton 99-5835-01 Power I/O Board for LMR Plus Controllers
- Eaton 4A55765H02 Diesel Plus Power I/O Board
- Eaton 5AHLE-125A AHLE Medium Voltage Fuse (125 A, 4.8 kV)
- Eaton DILM12-XSPD Diode Suppressor for DC Contactor Coils
- Eaton AN56GN0AB Freedom NEMA Size 2 Reversing Motor Starter
- Eaton DILM170 3-Pole AC Contactor
- Eaton DILM80 3-Pole AC-3 Contactor 80 A
Frequently Asked Questions
Is the Eaton E50DR1 a complete limit switch?
No. The E50DR1 is a side rotary operating head only. It must be fitted to a compatible E50 plug-in switch body and a lever actuator to form a complete limit switch.
What environmental protection does the E50DR1 provide?
When assembled with an E50 body it seals to NEMA 1, 3, 3S, 4, 4X, 6, 6P and 13 ratings with IP67 protection, making it suitable for washdown and outdoor duty.
What is the operating temperature range?
The head is rated from -12 C to +94 C (10 F to 200 F) per the Eaton specification.
Can the actuation direction be changed?
Yes. The head supports both clockwise and counterclockwise operation and can be converted to clockwise-only or counterclockwise-only actuation.
