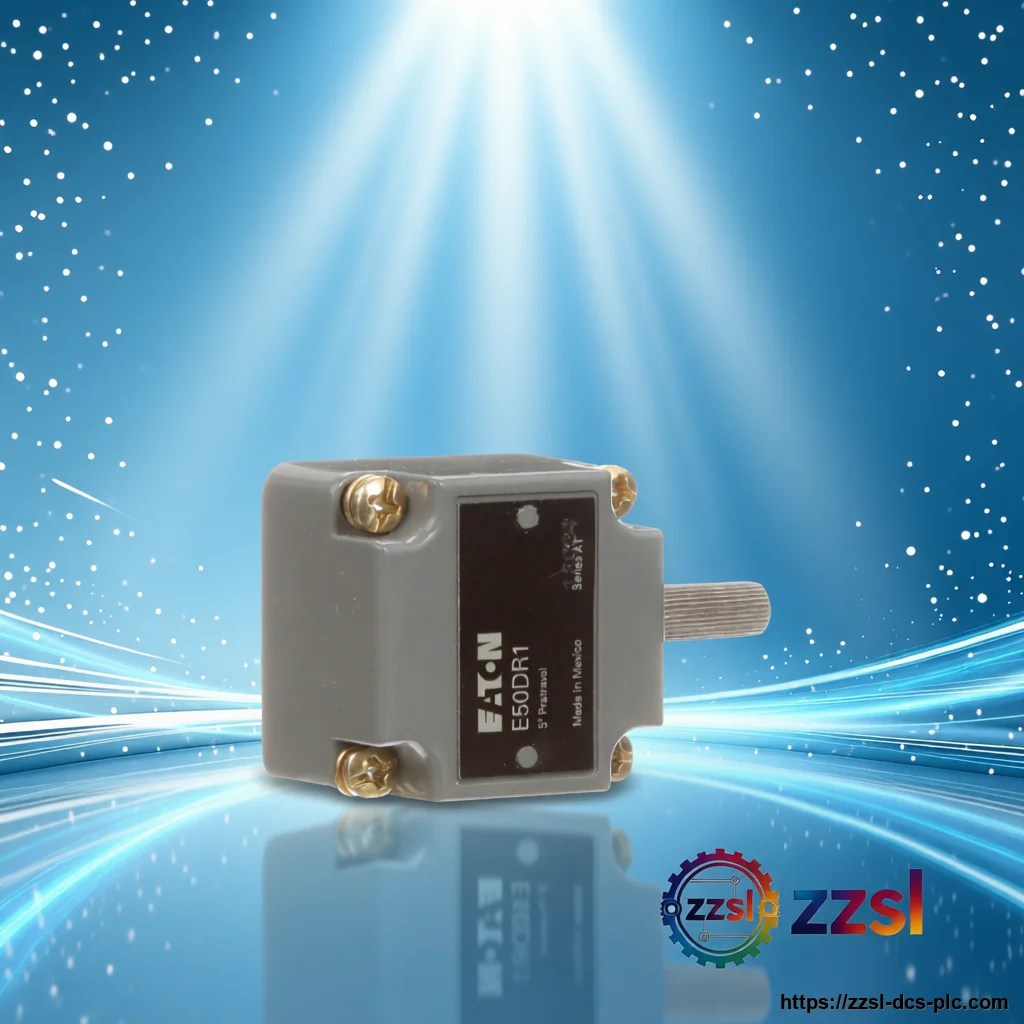

Eaton Limit switch actuator head E50DR1
Home / Sensors / Limit Switches / Eaton E50DR1 Need Eaton E50DR1? Limit switch actuator head for Heavy-duty position and limit sensing in industrial machinery.…
Specifications
| Brand | Eaton |
|---|---|
| Model Number | E50DR1 |
| Official Product Name | Limit switch head, side rotary, spring return |
| Applicable System | Heavy-duty position and limit sensing in industrial machinery |
| Product Type | Limit switch actuator head |
| Equivalent Standard | NEMA 1/3/3S/4/4X/6/6P/13, IP67 |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Body material | Die-cast zinc |
| Protection | NEMA 1/3/3S/4/4X/6/6P/13, IP67 |
| Operating temperature | -10 to 200 F (-23 to 93 C) |
| Dimensions (H x W x D) | 1.05 in x 1.54 in x 2.46 in |
| Weight | 0.3 lb (approx. 0.136 kg) |
| Actuator type | Side rotary, spring return |
Product Description
Basic Product Information
- Die-cast zinc housing for rugged duty
- NEMA 1/3/3S/4/4X/6/6P/13 and IP67 protection
- Designed for Eaton E50 heavy-duty limit switches
- Side-rotary lever actuator with spring return
Technical Specifications
Version & Model Difference
- ['E50DR1 is the side-rotary spring-return head for the E50 series', 'Other E50 heads offer top-plunger, roller-lever or wobble-stick actuators', 'E50 body and contact blocks are ordered separately']
Application Scenarios
- Machine tool position sensing
- Conveyor and material-handling limit detection
- Harsh-environment industrial automation
