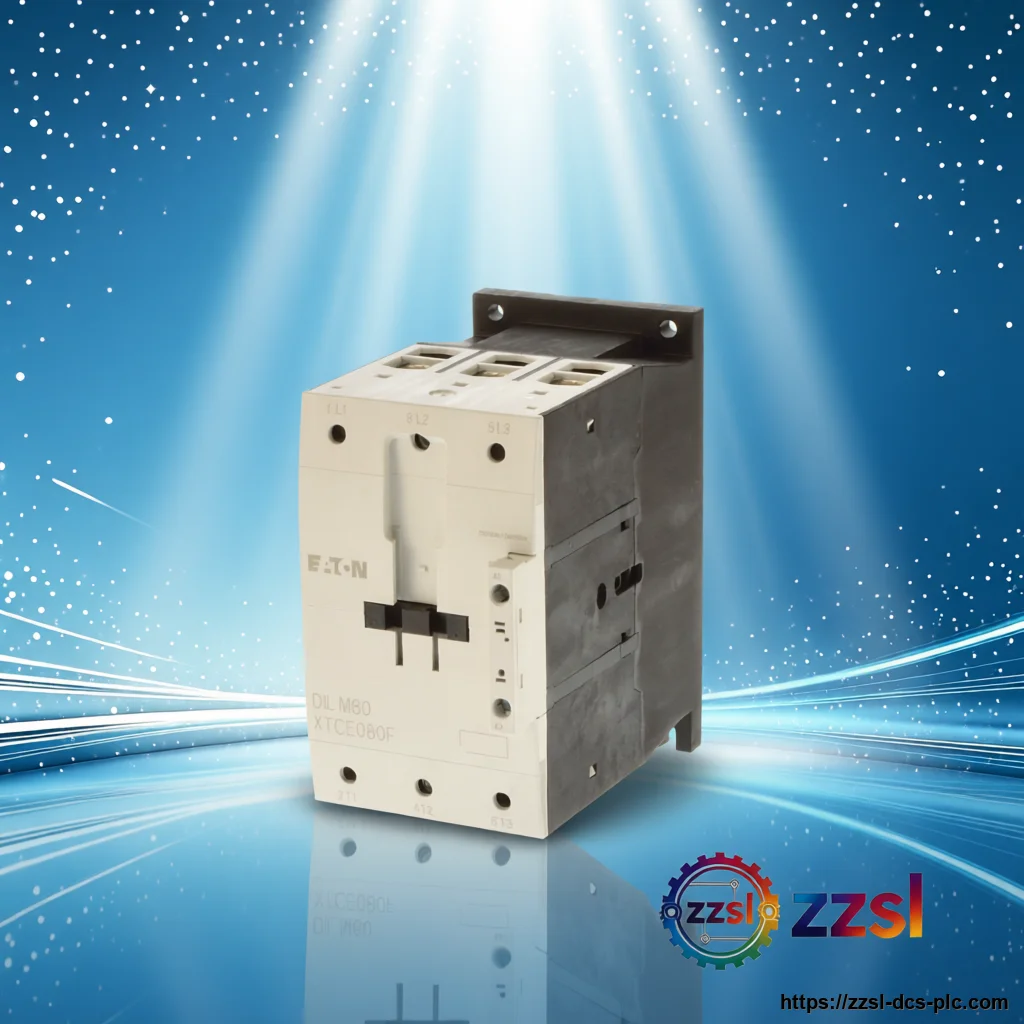

Eaton AC-3 Power Contactor DILM80
Home > Eaton > Contactors > DILM80 Need Eaton DILM80? AC-3 Power Contactor for Motor control and power switching systems. Supplied with full traceabil…
Specifications
| Brand | Eaton |
|---|---|
| Model Number | DILM80 |
| Official Product Name | Moeller series DILM80 Contactor |
| Applicable System | Motor control and power switching systems |
| Product Type | AC-3 Power Contactor |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Rated operational current (Ie) AC-1 | 110 A |
| Rated operational power AC-3, 400 V | 37 kW |
| Rated insulation voltage (Ui) | 690 V |
| Rated operational voltage (Ue) max | 690 V AC |
| Number of poles | 3-pole |
| Utilization categories | AC-1, AC-3, AC-4 |
| Mechanical lifespan | 10,000,000 operations |
| Frame size | FS4 |
| Degree of protection | IP00 |
| Standards | IEC/EN 60947, VDE 0660, UL, CSA |
| Rated operational current (Ie) AC-3, 400 V | 80 A |
Product Description
It carries a 690 V insulation rating and is rated for IE3 high-efficiency motors, making it a direct drop-in for panel builders using the Moeller FS4 frame. With a mechanical life of 10 million operations, screw terminals and finger-safe front actuation, it suits demanding motor-control and power-switching applications. The Eaton Moeller DILM80 is a 3-pole AC contactor from the DILM series, built for switching three-phase AC motors up to 80 A in AC-3 duty (37 kW at 400 V).
Basic Product Information
- 37 kW switching capacity at 400 V (AC-3), up to 690 V operational voltage
- Suitable for IE3 high-efficiency motors
- 10 million mechanical operations with 3600 operations/h frequency
- Screw terminals with finger- and back-of-hand-proof front actuation (EN 50274)
- 3-pole design rated 80 A in AC-3 duty and 110 A in AC-1 duty
Technical Specifications
Version & Model Difference
DILM80 denotes the 80 A base contactor; coil voltage and auxiliary-contact variants are specified by suffix (e.g. DILM80(24V50/60HZ), DILM80-22 for 2NO+2NC auxiliaries). All share the FS4 frame and 690 V insulation rating. Verify the exact coil voltage and auxiliary configuration against your panel requirements.
Application Scenarios
- Switching three-phase AC induction motors in pumps, fans, compressors and conveyors
- Motor starting and control in industrial panels and machine builders
- AC-4 duty such as plugging, reversing and inching of motors
- General non-inductive and slightly inductive load switching (AC-1, resistance furnaces)
- Eaton 57701-451 Eclipse Series Digital Counter / Timer / Process Meter
- Eaton 99-5835-01 Power I/O Board for LMR Plus Controllers
- Eaton 4A55765H02 Diesel Plus Power I/O Board
- Eaton E50DR1 Heavy-Duty Plug-In Limit Switch (Side Rotary)
- Eaton 5AHLE-125A AHLE Medium Voltage Fuse (125 A, 4.8 kV)
- Eaton DILM12-XSPD Diode Suppressor for DC Contactor Coils
- Eaton AN56GN0AB Freedom NEMA Size 2 Reversing Motor Starter
- Eaton DILM170 3-Pole AC Contactor
Frequently Asked Questions
What coil voltages are available for the DILM80 contactor?
The DILM80 base contactor is offered with a wide range of AC/DC coil voltages added as a suffix (e.g. 24 V, 110 V, 220-240 V, 380-440 V at 50/60 Hz). The bare DILM80 refers to the 80 A contactor body; confirm the required coil suffix for your application.
Is the DILM80 suitable for IE3 high-efficiency motors?
Yes. The DILM80 is rated for IE3 high-efficiency motors in AC-3 duty and tested to AC-3e, making it suitable for modern energy-efficient motor installations.
What is the switching capacity of the DILM80 at 400 V?
In AC-3 duty the DILM80 switches 80 A and up to 37 kW at 400 V; in AC-1 non-inductive duty it carries 110 A. Rated operational voltage reaches 690 V.
Can the DILM80 be combined with overload protection?
Yes. It is commonly paired with Eaton PKE or PKZ motor protection circuit breakers and DILA auxiliary relays to build complete motor starters with overload and short-circuit protection.
