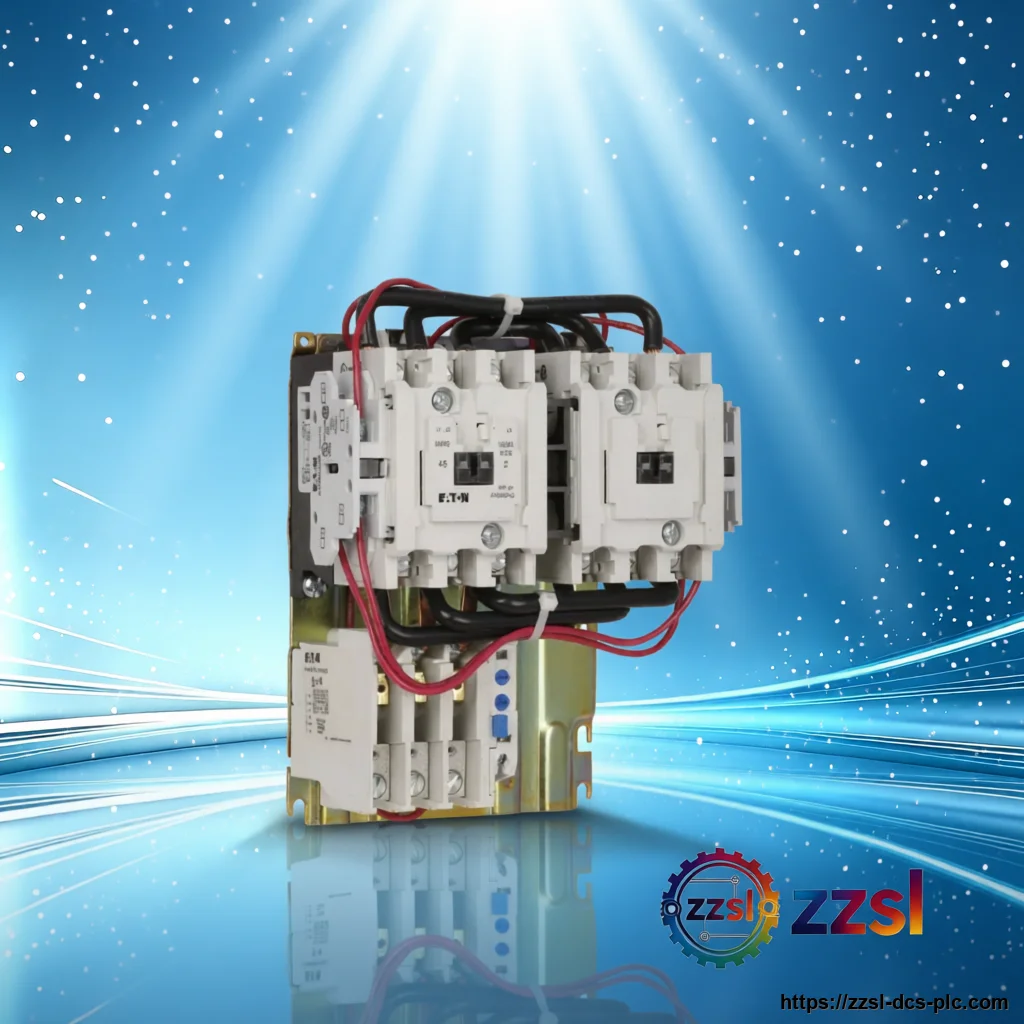

Eaton NEMA reversing AC magnetic motor starter AN56GN0AB
['Home', 'Motor Starters', 'Eaton Cutler-Hammer', 'AN56 Reversing Starter'] Need Eaton AN56GN0AB? NEMA reversing AC mag…
Specifications
| Brand | Eaton (Cutler-Hammer) |
|---|---|
| Model Number | AN56GN0AB |
| Official Product Name | AN56 Reversing Motor Starter |
| Applicable System | Motor control |
| Product Type | NEMA reversing AC magnetic motor starter |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Active |
| Lifecycle note | Available (contact supplier for lead time) |
| Rated current | 45 A |
| Coil voltage | 120 V AC |
| Poles | 3 (3-phase) |
| Max voltage | 600 V AC |
| Type | Reversing AC magnetic starter |
| Enclosure | Open (non-enclosed) |
| Power rating | 3 HP @ 115 V / 7.5 HP @ 230 V (1-phase); 10 HP @ 208 V / 15 HP @ 240 V (3-phase) |
| NEMA size | Size 2 |
Product Description
Basic Product Information
- NEMA Size 2, 45 A continuous rating
- 120 V AC coil, 3-pole open type
- Built on the proven Cutler-Hammer AN series
- Reversing magnetic starter for forward/reverse motor control
Technical Specifications
Version & Model Difference
- ['Contact supplier for exact specifications regarding AN56 coil and enclosure options.']
Application Scenarios
- Conveyor forward/reverse control
- Hoist and winch drives
- Pump reversing applications
- It is open type (non-enclosed); mount inside a suitable enclosure.
- 120 V AC control coil.
- An Eaton Cutler-Hammer NEMA Size 2 reversing AC magnetic motor starter, 45 A, 120 V AC coil.
