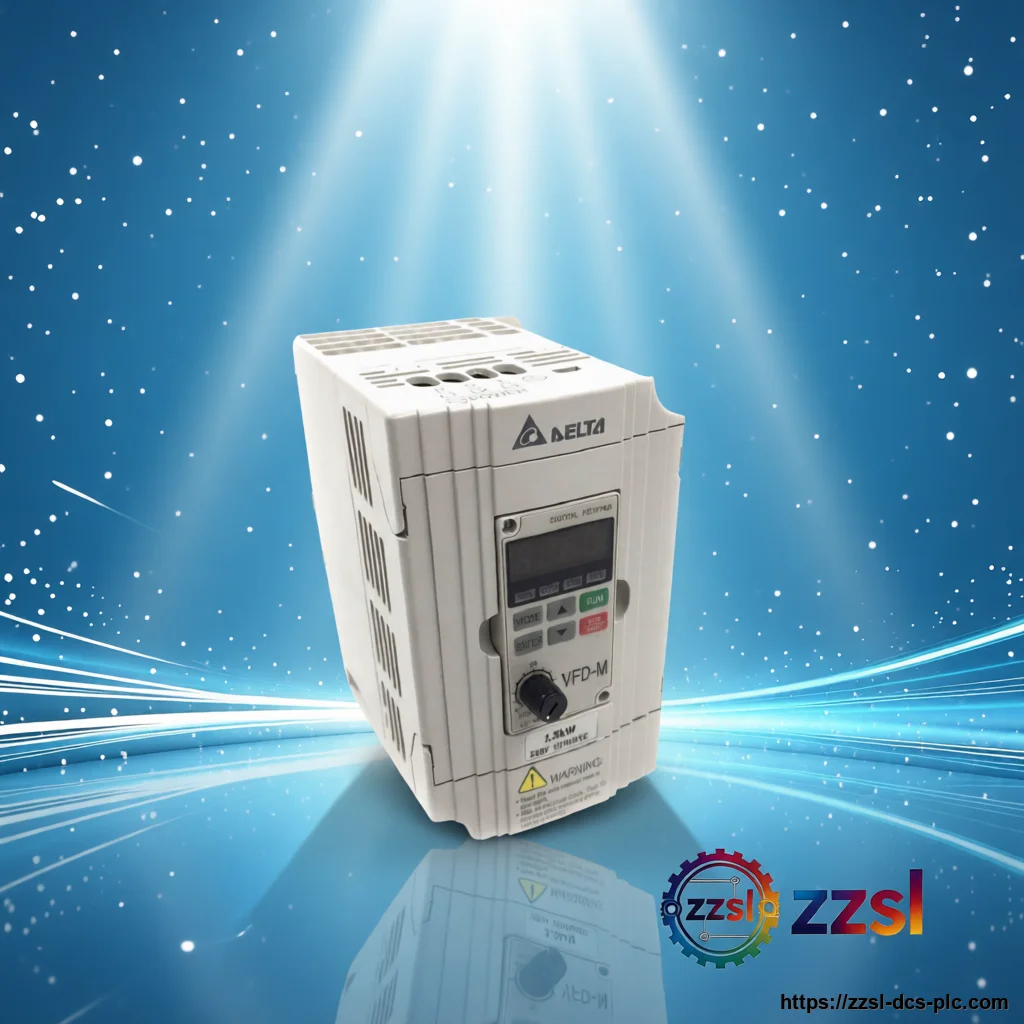

Delta Variable Frequency Drive VFD015M21A
Home > Products > Delta > VFD-M Series Need Delta VFD015M21A? Variable Frequency Drive for General-purpose industrial motor control. Supplied with ful…
Contact us for current availability and best price of VFD015M21A.
Specifications
| Brand | Delta |
|---|---|
| Model Number | VFD015M21A |
| Official Product Name | VFD-M Series AC Motor Drive |
| Applicable System | General-purpose industrial motor control |
| Product Type | Variable Frequency Drive (VFD) |
| Equivalent Standard | CE, UL |
| Product Status | In Stock |
| Input Voltage | 200-240V AC, 1-phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | 200-240V AC, 3-phase |
| Output Frequency | 0.1-400 Hz |
| Rated Output Current | 7.5 A |
| Overload Capacity | 150% for 60 seconds |
| Control Method | V/f, Sensorless Vector Control |
| Communication | RS-485 (Modbus RTU) |
| Protection Class | IP20 |
| Ambient Temperature | -10°C to +50°C |
| Dimensions (W x H x D) | 100 x 180 x 140 mm |
| Rated Output Power | 1.5 kW (2 HP) |
Product Description
It delivers 1.5 kW (2 HP) output power from a 230V single-phase input, making it ideal for small to medium machinery. The drive features sensorless vector control and V/f control modes, providing precise speed regulation and high starting torque. Its built-in PID controller, PLC functionality, and RS-485 communication port enable flexible integration into automated systems. This model supports a wide input voltage range of 200-240V AC and offers an output frequency range from 0.1 to 400 Hz. The VFD015M21A includes advanced protection features such as overcurrent, overvoltage, undervoltage, and overheating safeguards, ensuring reliable operation in demanding environments. Its compact design allows for side-by-side mounting, saving panel space, and the keypad with LCD display simplifies parameter setting and monitoring. Delta's VFD-M series is known for its cost-effectiveness and reliability, making it a popular choice for applications like fans, pumps, conveyors, and machine tools. The VFD015M21A is a genuine OEM spare part, available new with warranty, and is fully compatible with Delta's standard accessories. With its robust construction and user-friendly interface, this drive enhances operational efficiency and reduces energy consumption. The Delta VFD015M21A is a compact AC variable frequency drive from the VFD-M series, designed for general-purpose motor control in industrial automation.
Basic Product Information
- Output frequency range 0.1-400 Hz
- Built-in PID controller and PLC function
- RS-485 communication port (Modbus protocol)
- Compact design for side-by-side mounting
- Comprehensive protection functions (overcurrent, overvoltage, etc.)
- Sensorless vector control and V/f control modes
Technical Specifications
Version & Model Difference
The VFD015M21A is part of Delta's VFD-M series. Compared to newer VFD-EL or VFD-CP200 series, the VFD-M offers a cost-effective solution with basic features. It does not include built-in EMC filter (optional), and its control performance is suitable for general applications. The VFD-M series has been widely used and is now being phased out in favor of more advanced models, but it remains available as a spare part for existing installations.
Application Scenarios
- DELTA AFB1224SHE 120mm DC Fan 24V
- Delta VFD015M21A VFD-M Series 1.5kW 220V AC Drive
- Delta AFB0624EH 60x60x25.4mm 24VDC Axial Cooling Fan
- Delta ECMA-L11845SS AC Servo Motor 4.5 kW
- Delta AFB1224SHE 120mm DC Fan (AFB1224SHE)
Frequently Asked Questions
What is the input power requirement for the Delta VFD015M21A?
The VFD015M21A requires a single-phase 200-240V AC power supply at 50/60 Hz. It outputs a three-phase 200-240V AC supply to the motor.
Can the VFD015M21A be used with a single-phase motor?
No, this drive is designed for three-phase induction motors. It converts single-phase input to three-phase output for the motor.
Does the VFD015M21A support Modbus communication?
Yes, it has an RS-485 communication port that supports Modbus RTU protocol, allowing integration with PLCs and SCADA systems.
What is the overload capacity of the VFD015M21A?
The drive can handle 150% of rated current for 60 seconds, which is typical for general-purpose applications.
