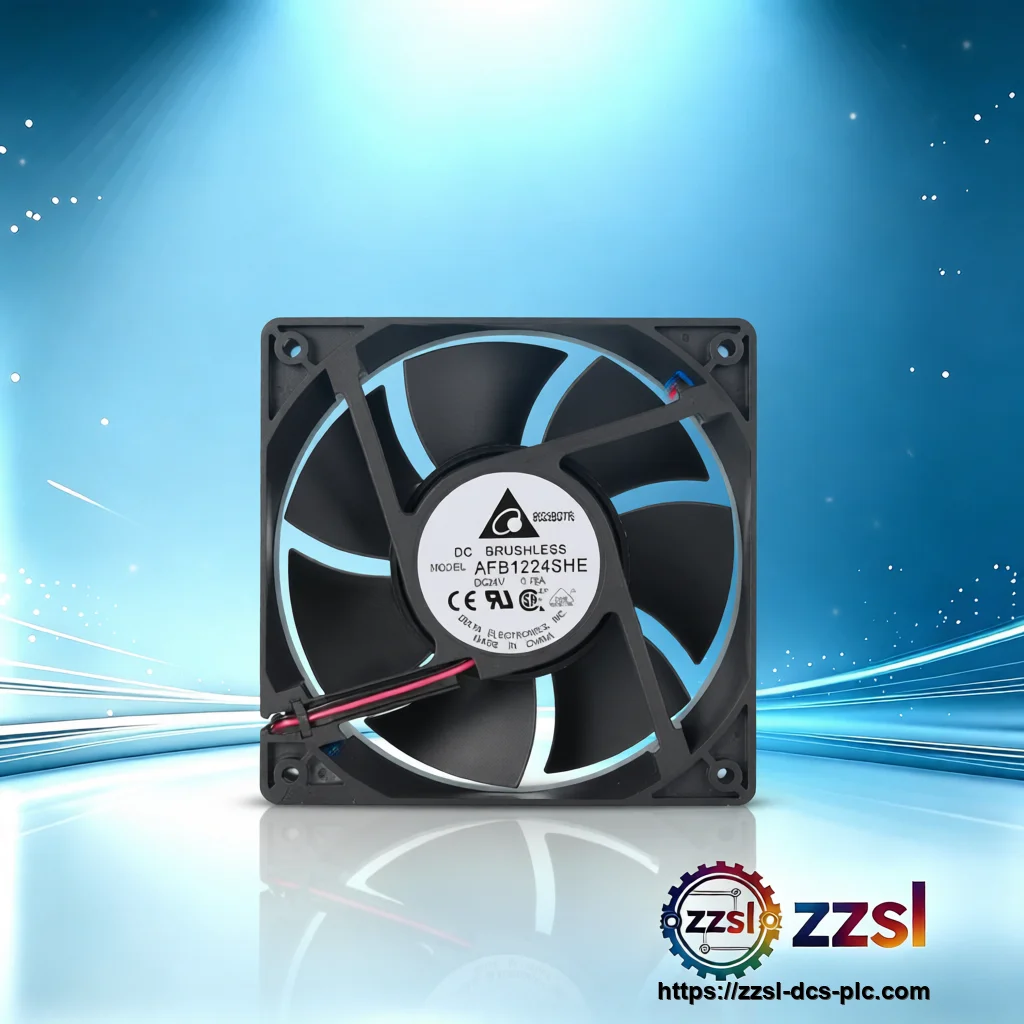

Delta Component AFB1224SHE
Home > Products > Cooling Fans > DELTA > AFB1224SHE Need Delta AFB1224SHE? Component for Industrial cooling systems, telecom, power, UPS. Supplied …
Specifications
| Brand | DELTA |
|---|---|
| Model Number | AFB1224SHE |
| Official Product Name | FAN, AFB1224SHE, DELTA |
| Applicable System | Industrial cooling systems, telecom, power, UPS |
| Product Type | Component (Fan) |
| Equivalent Standard | AFB1224SHE-00, AFB1224SHE-F00 |
| Product Status | Active |
| Lifecycle note | Active, in production |
| Rated Voltage (V) | 7 to 27.6V DC |
| Operating Voltage Range (V) | 14.0 - 27.6 |
| Rated Current (A) | 0.50A |
| Power Consumption (W) | 12W |
| Speed (RPM) | 3200 |
| Airflow (CFM) | 150.0 |
| Static Pressure (Pa) | 13.6 |
| Noise (dBA) | 48.0 |
| Bearing Type | Ball bearing |
| Lead Wires | 3 (Red, Black, Yellow) |
| Connector | Standard 3-pin header |
| Weight (g) | 256 g |
| Operating Temperature (degC) | -10 to +60 degC |
| Life Expectancy (hours) | 70,000 at 40 degC |
| Speed | 3700 RPM |
| Airflow | 151.85 CFM |
| Static Pressure | 14.5 mmH2O |
| Noise | 53 dB(A) |
| Life Expectancy | 70000 hours at 40 degC |
| Dimensions (mm) | 120 x 120 x 38 mm |
Product Description
20.00 USD （参考价 / est. market price）
Basic Product Information
- Operating voltage 24V DC, suitable for industrial power supplies
- 3-wire tachometer output for speed monitoring
- Low noise and high static pressure, ideal for dense enclosures
- RoHS compliant, meets UL/CE standards
- High airflow design with dual ball bearings for long life
Technical Specifications
Version & Model Difference
The AFB1224SHE series has several versions: standard (AFB1224SHE), with tachometer (AFB1224SHE-T), and with PWM control (AFB1224SHE-P). The standard version has 3 wires; the -T version adds a locked rotor sensor; the -P version includes PWM speed control. All share the same frame and electrical specs.
Application Scenarios
- Telecommunication base station equipment cooling
- Industrial control cabinets and enclosures
- Uninterruptible power supplies (UPS)
- Power supply units (PSU) thermal management
- Medical equipment requiring reliable airflow
