134H2507-FC-302P5K5T5E20H1BGCXXXSXXXXAUBXCXXXXD0

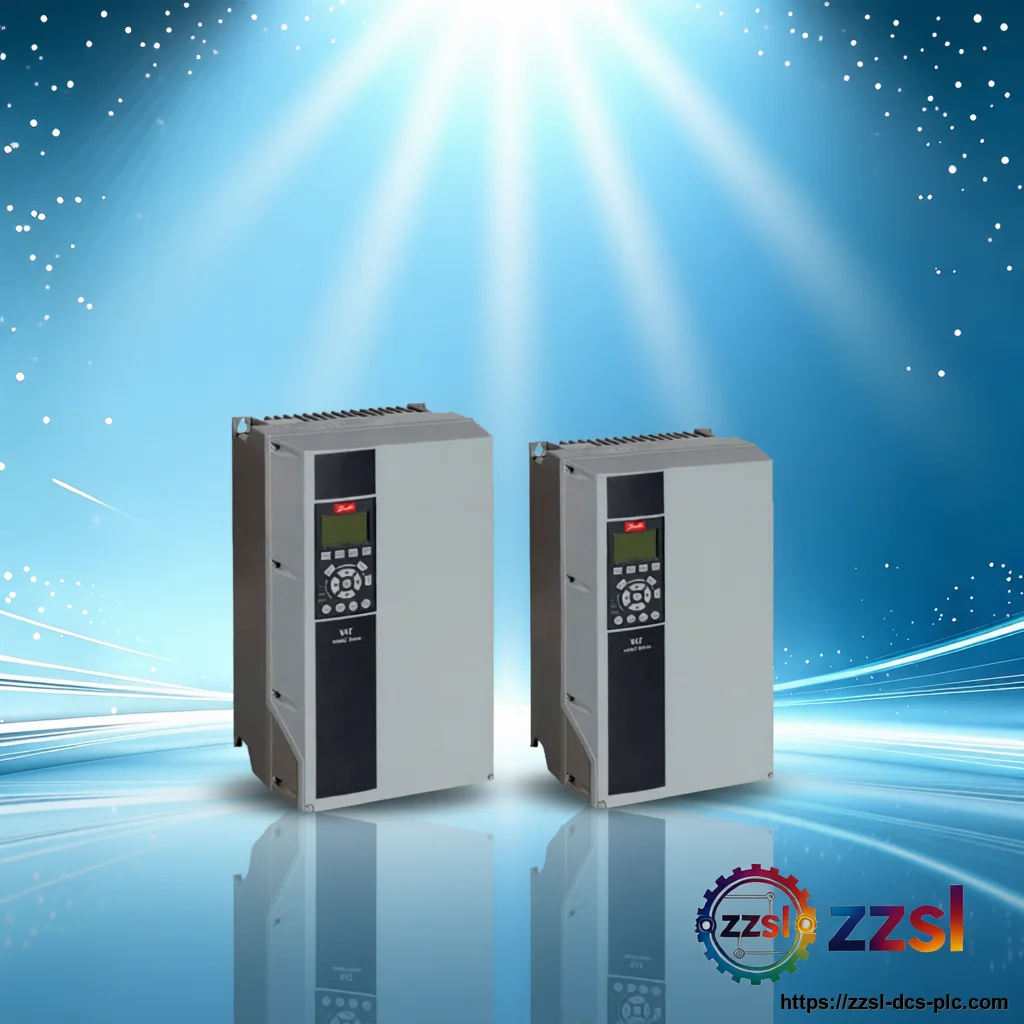

Danfoss 134H2507 FC-302P5K5T5E20H1BGCXXXSXXXXAUBXCXXXXD0
Danfoss
Danfoss 134H2507 FC-302P5K5T5E20H1BGCXXXSXXXXAUBXCXXXXD0
Home > Products > Danfoss > Frequency Inverters > 134H2507 Need Danfoss 134H2507 FC-302P5K5T5E20H1BGCXXXSXXXXAUBXCXXXXD0? Frequency Inverter for In…
Specifications
| Brand | Danfoss |
|---|---|
| Model Number | 134H2507 FC-302P5K5T5E20H1BGCXXXSXXXXAUBXCXXXXD0 |
| Official Product Name | FC-302 (131B0476) 5.5KW /7.5HP, 380-500VAC Frequency Inverter |
| Applicable System | Industrial motor control systems, HVAC, pumps, fans, conveyors |
| Product Type | Frequency Inverter (standalone unit) |
| Equivalent Standard | FC-302P5K5T5E20H1BGCXXXSXXXXAUBXCXXXXD0, 131B0476 |
| Product Status | Active |
| Lifecycle note | Active, in stock |
| Input Voltage | 380-500VAC |
| Output Voltage | 380-500VAC |
| Rated Current | 12A (typical) |
| Frequency Range | 0-590Hz |
| Enclosure Rating | IP20 (typical) |
| Communication Protocol | Modbus RTU (standard), optional Profibus, DeviceNet, etc. |
| Operating Temperature | -10 degC to +50 degC |
| Dimensions (HxWxD) | 268 x 130 x 205 mm (A3 frame, verified family pattern) |
| Weight | Contact us for details |
| Rated Power | 5.5 kW (7.5 HP) |
Product Description
Basic Product Information
- Wide input voltage range of 380-500VAC for global compatibility
- Built-in PID controller for precise process control
- Advanced motor control algorithms for high torque and efficiency
- Multiple communication options (e.g., Modbus, Profibus) for integration
- Protection features: overvoltage, undervoltage, overcurrent, and thermal overload
- Compact design for easy installation and space saving
Technical Specifications
Version & Model Difference
The FC-302 series has multiple versions with different power ratings, voltage classes, and enclosure types. This specific model (134H2507) is a 5.5KW, 380-500VAC unit with a standard IP20 enclosure. It is part of the latest generation of FC-302 drives, featuring enhanced communication options and improved performance compared to earlier versions. Regional variants may have different default parameters or certifications (e.g., CE, UL).
Application Scenarios
- Industrial automation for conveyor systems
- HVAC systems for pumps and fans
- Water treatment plants for pump control
- Material handling equipment
- Machine tools and compressors
- Retrofit projects replacing older drives
