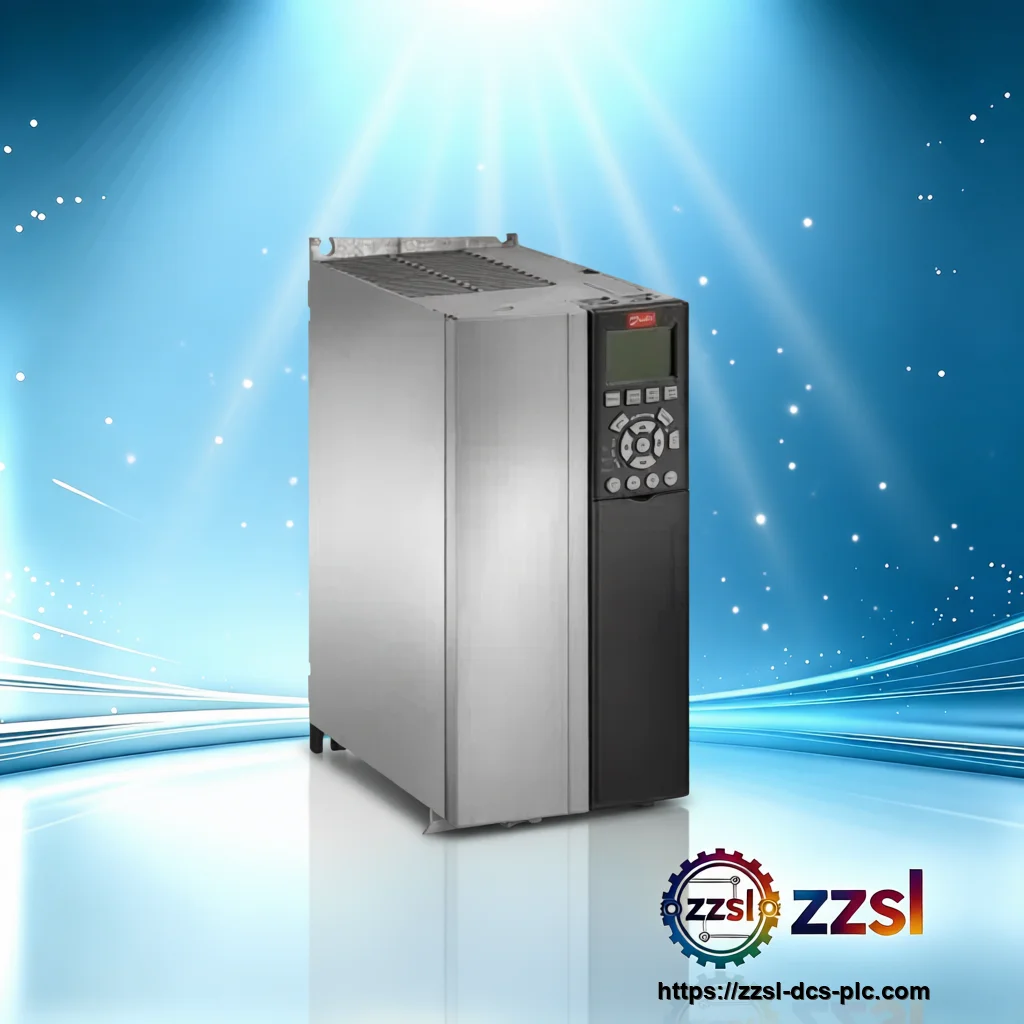

Danfoss 131F8422 FC-302P15KT5E20H1BGCXXXSXXXXAXBXCXXXXDX
Danfoss
Danfoss 131F8422 FC-302P15KT5E20H1BGCXXXSXXXXAXBXCXXXXDX
Home > Products > Danfoss > Frequency Inverters > Danfoss 131F8422 Inverter 15KW Need Danfoss 131F8422 FC-302P15KT5E20H1BGCXXXSXXXXAXBXCXXXXDX? Fre…
Specifications
| Brand | Danfoss |
|---|---|
| Model Number | 131F8422 FC-302P15KT5E20H1BGCXXXSXXXXAXBXCXXXXDX |
| Official Product Name | Inverter FC-302 15KW Model:P15KT5E20H1BGCXXX Frequency Inverter [15KW] |
| Applicable System | Industrial motor control systems |
| Product Type | Frequency Inverter (Module) |
| Equivalent Standard | FC-302P15KT5E20H1BGCXXX |
| Product Status | Active |
| Lifecycle note | Active, 3-5 weeks delivery |
| Input Voltage | 3 x 380-480 V AC |
| Output Voltage | 3x0-480V AC |
| Rated Current | 32 A |
| Frequency Range | 0-590Hz |
| Enclosure Rating | IP20 |
| Communication Protocol | Modbus RTU, Profibus DP (optional) |
| Operating Temperature | -10 degC to +50 degC |
| Dimensions (WxHxD) | 399 x 165 x 249 mm (B3 frame) |
| Weight | 11.32 kg |
| Certifications | CE, UL, RoHS |
| Rated Power | 15 kW |
Product Description
Basic Product Information
- Advanced motor control algorithms for precise speed and torque regulation
- Built-in protection against overvoltage, overcurrent, and overheating
- Compact design for easy installation and maintenance
- Compatible with various motor types, including asynchronous and permanent magnet motors
- 15KW output power for medium-duty industrial applications
Technical Specifications
Version & Model Difference
The FC-302 series includes various power ratings and voltage classes. This model is a 15KW, 380-480V version with a standard control panel. Other versions may have different power ratings (e.g., 18.5KW, 22KW) or optional fieldbus modules. The part number suffix indicates specific options such as braking chopper, filter, and display type.
Application Scenarios
- Industrial automation for conveyor systems
- Water treatment plant motor control
- Machine tool spindle drives
- Replacement for aging or failed inverters in existing installations
