131B4287

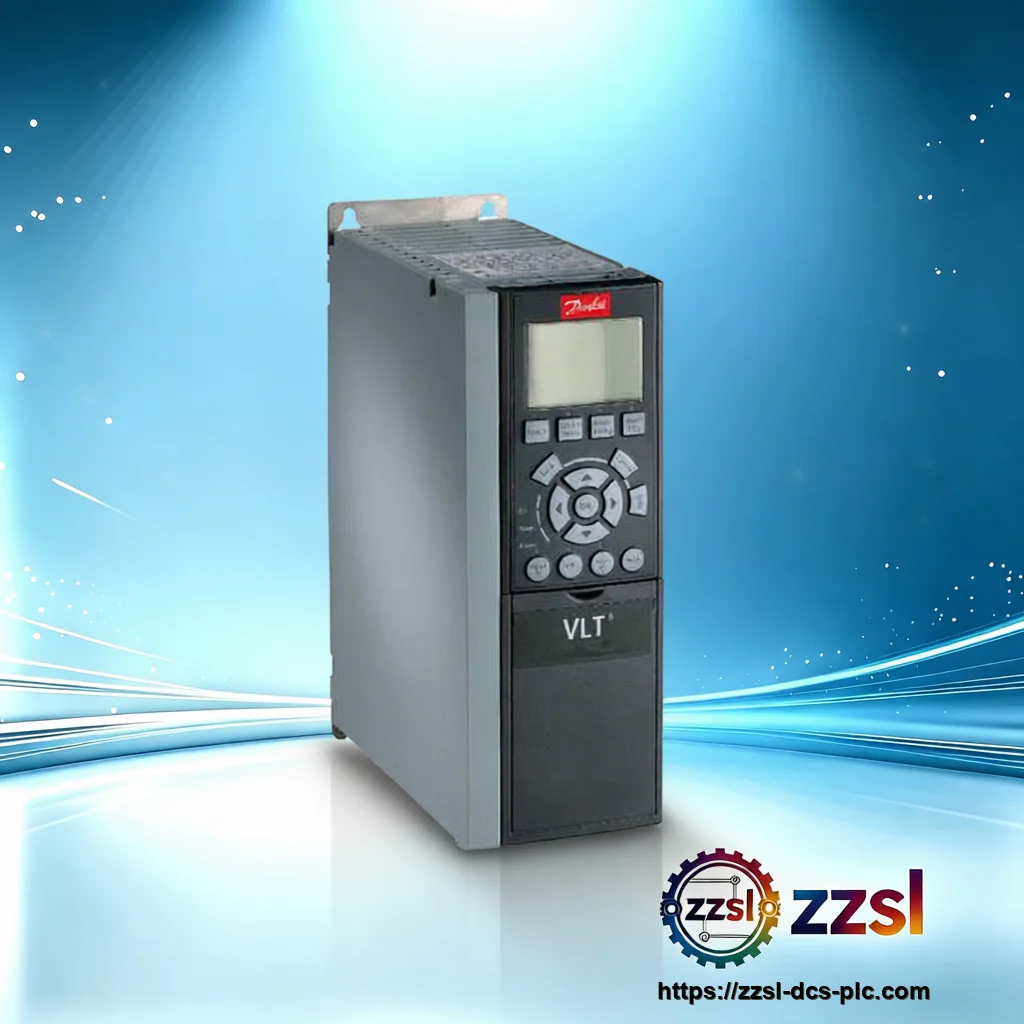

Danfoss 131B4287 FC-302P1K5T5E20H1XGCXXXSXXXXA0BXCXXXXDX
Danfoss
Danfoss 131B4287 FC-302P1K5T5E20H1XGCXXXSXXXXA0BXCXXXXDX
Home > Products > Danfoss > Frequency Inverters > 131B4287 Need Danfoss 131B4287 FC-302P1K5T5E20H1XGCXXXSXXXXA0BXCXXXXDX? Frequency Inverter for In…
Specifications
| Brand | Danfoss |
|---|---|
| Model Number | 131B4287 FC-302P1K5T5E20H1XGCXXXSXXXXA0BXCXXXXDX |
| Official Product Name | INVERTER 1.5KW/2HP TYPE:FC-302P1K5T5E20H1X Frequency Inverter [1.5KW/2HP] |
| Applicable System | Industrial motor control systems, HVAC, pumps, fans, conveyors |
| Product Type | Frequency Inverter (Standalone unit) |
| Equivalent Standard | FC-302P1K5T5E20H1XGCXXXSXXXXA0BXCXXXXDX (exact); FC-302P1K5T5E20H1X (base model) |
| Product Status | Active |
| Lifecycle note | Active, in stock with 3-5 weeks lead time |
| Input Voltage | 3-phase 380-480V AC |
| Output Voltage | 3-phase 0-100% of input voltage |
| Rated Output Current | 4.1 A |
| Frequency Range | 0-590 Hz |
| Control Method | VVC+ (Voltage Vector Control) |
| Enclosure Rating | IP20 |
| Communication Protocol | Optional fieldbus |
| Operating Temperature | -10 degC to 50 degC |
| Dimensions (HxWxD) | 268 x 90 x 205 mm (A2 frame, verified family pattern) |
| Weight | Contact us for details |
| Certifications | CE, UL, cUL, RoHS |
| Rated Power | 1.5 kW (2 HP) |
Product Description
Basic Product Information
- Energy-efficient operation reducing power consumption
- Built-in RFI filters for electromagnetic compatibility
- Compact design for easy installation and space saving
- Wide operating voltage range (380-480V) for global compatibility
- Integrated protection functions: overcurrent, overvoltage, overheating
- Precise motor speed control with advanced VVC+ technology
Technical Specifications
Version & Model Difference
The model FC-302P1K5T5E20H1XGCXXXSXXXXA0BXCXXXXDX is a specific configuration of the Danfoss FC-302 series. The base model is FC-302P1K5T5E20H1X, which includes standard features. The extended part 'GCXXXSXXXXA0BXCXXXXDX' indicates additional options such as enclosure type, RFI filter, display, and fieldbus. This version is designed for standard industrial applications with IP20 protection and no built-in fieldbus. Other versions may include different enclosure ratings (IP21/IP54) or fieldbus options (e.g., PROFIBUS, DeviceNet).
Application Scenarios
- Industrial automation: conveyor systems, material handling
- HVAC: fans, pumps, chillers
- Water treatment: pumps, blowers
- Machinery: compressors, mixers, extruders
- Retrofit projects: replacing old motor starters with variable speed drives
