Danfoss · PLC Module
131B0150
Danfoss 131B0150 FC-302P4K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX
Danfoss

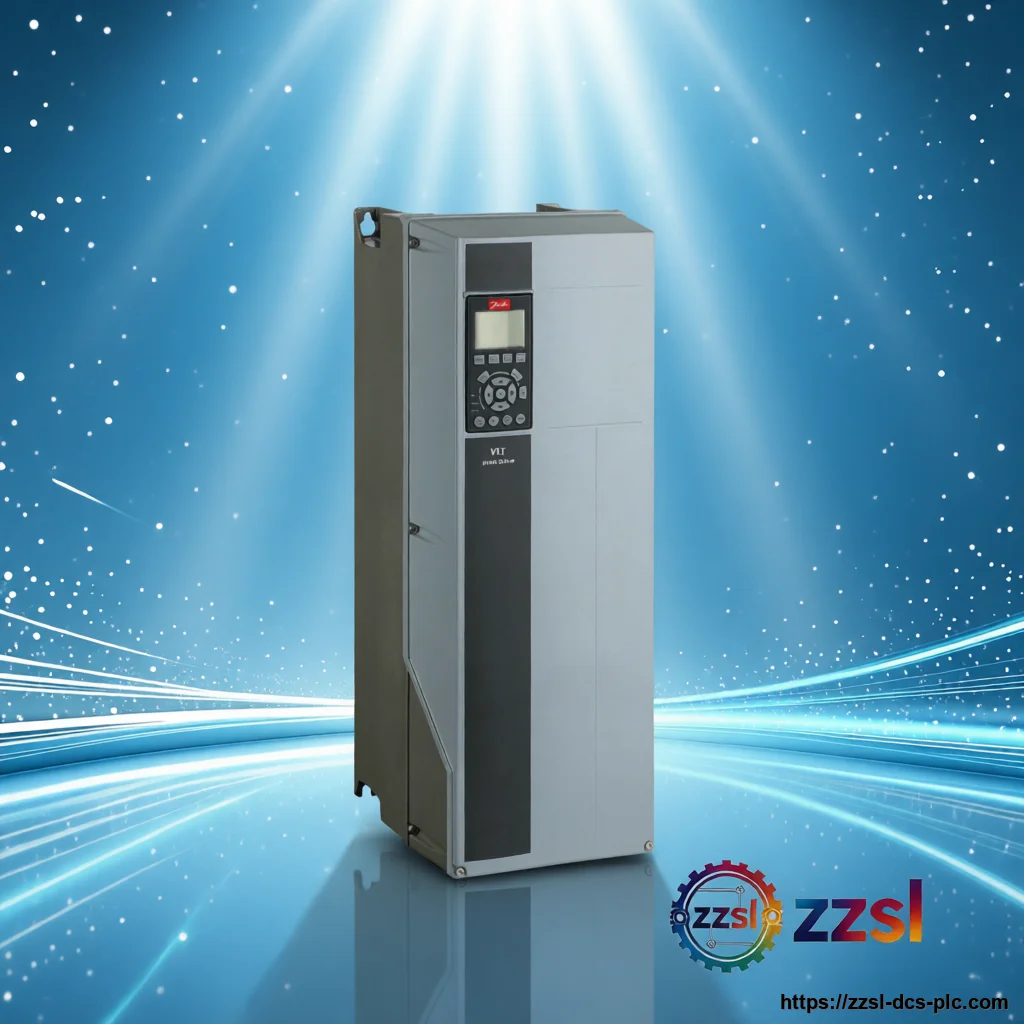

Danfoss 131B0150 FC-302P4K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX
Home > Products > Danfoss > Frequency Inverters > Danfoss 131B0150 Need Danfoss 131B0150 FC-302P4K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX? Frequency Inverte…
Specifications
| Brand | Danfoss |
|---|---|
| Model Number | 131B0150 FC-302P4K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX |
| Official Product Name | DANFOSS 4KW FREQUENCY INVERTER Frequency Inverter [4KW] |
| Applicable System | Industrial motor control systems, HVAC, pumps, fans, conveyors |
| Product Type | Frequency Inverter (VFD) |
| Equivalent Standard | FC-302P4K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX |
| Product Status | Active |
| Lifecycle note | Active, in stock |
| Input Voltage | 3x380-480V AC |
| Output Voltage | 3x0-100% of input voltage |
| Rated Output Current | 8.2 A |
| Frequency Range | 0-590Hz |
| Enclosure Rating | IP20 |
| Communication Protocol | Modbus RTU (optional Profibus, DeviceNet, etc.) |
| Operating Temperature | -10 degC to +50 degC |
| Dimensions (HxWxD) | 268 x 90 x 205 mm (A2 frame) |
| Weight | 4.09 kg |
| Rated Power | 4 kW |
Product Description
Basic Product Information
- Energy-efficient operation reduces power consumption
- Built-in motor protection against overcurrent, overvoltage, and overheating
- Compact design for easy installation in control panels
- Wide operating voltage range (3x380-480V) for global compatibility
- Advanced communication options for integration into automation systems
- User-friendly keypad for local control and parameter configuration
- Precise speed and torque control for 4KW motors
Technical Specifications
Version & Model Difference
The FC-302 series offers various versions with different enclosure ratings (IP20, IP21, IP54), communication options, and braking choppers. This specific model (131B0150) is a standard IP20 version with Modbus RTU. Other models in the series may have higher IP ratings or additional features like Safe Torque Off (STO).
Application Scenarios
- Industrial motor speed control in manufacturing lines
- HVAC systems for pumps and fans
- Water treatment plants for pump control
- Conveyor systems in logistics and warehousing
- Replacement of existing VFDs in retrofit projects
