Chint · PLC Module

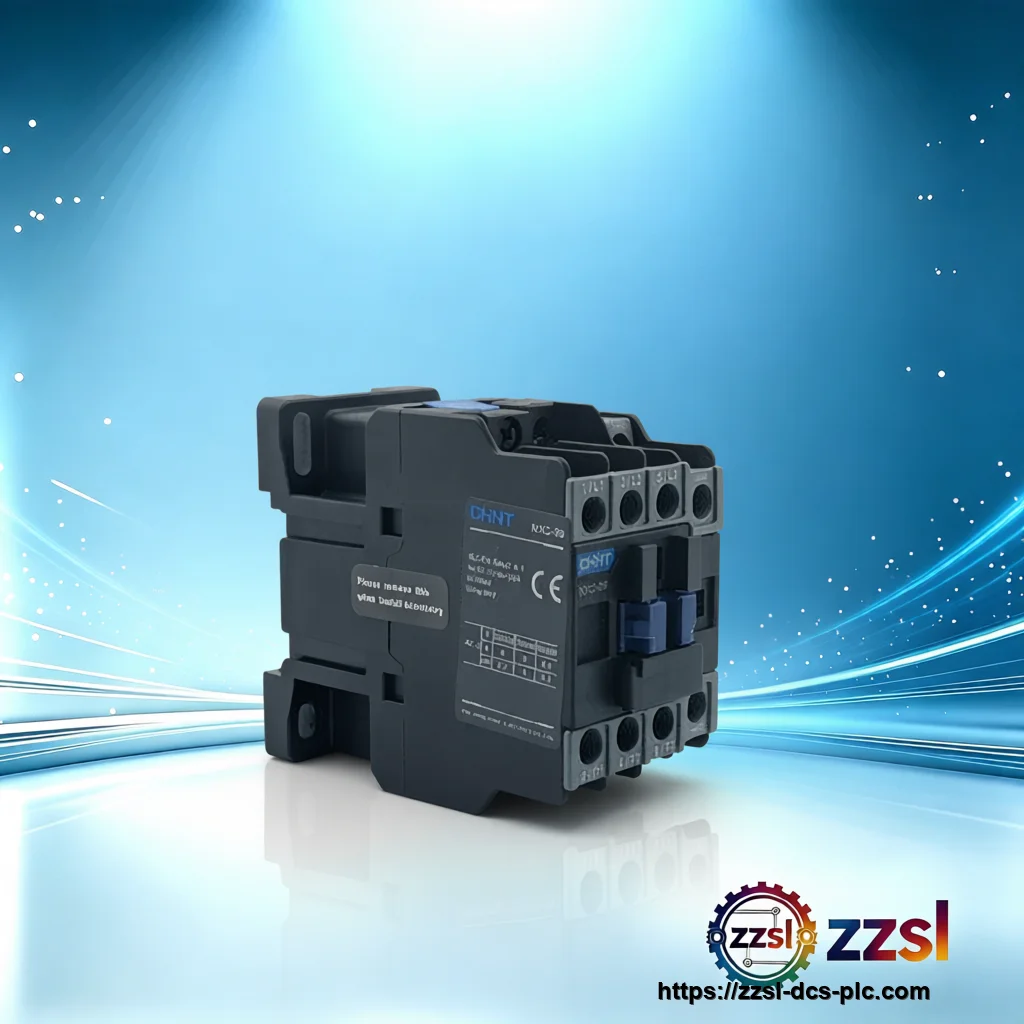

Chint Component NXC-09

NXC-09

Chint Chint

Chint Component NXC-09

Chint NXC-09 Component. For Motor control, lighting control, power distribution. Supplied with full traceability and documentation. Request a quote today. Pric…

$6.76
Current ModelAvailability on request

Quoted price from our sales team

Specifications

BrandChint
Model NumberNXC-09
Official Product NameMagnetic Contactor 9A, Coil Voltage: 220VAC
Applicable SystemMotor control, lighting control, power distribution
Product TypeComponent (contactor)
Equivalent StandardContact us for details
Product StatusActive
Number of Poles3P
Coil Voltage220 V AC (this unit); NXC-09 does not encode coil voltage — coil voltage must be specified at order (options 24/36/42/48/110/127/220-240/380/400/415 V AC)
Rated Power (AC-3)Contact us for details
Rated Insulation Voltage (Ui)690 V
Rated Operational Voltage (Ue)220-690 V AC
Mechanical Life12,000,000 operations
Electrical Life1,200,000 operations
Mounting TypeDIN rail or panel mount
Terminal TypeScrew terminals
Operating Temperature-35 to +70 degC
Dimensions (W x H x D)44.5 x 75 x 70 mm
Weight335 g (gross)
Protection RatingIP20
CertificationsIEC/EN 60947-4-1
Rated Current (Ie)9 A

Product Description

Basic Product Information

  • Coil voltage 220 V AC on this unit; the NXC-09 order code does not encode coil voltage, so it must be specified separately at purchase
  • Compact design for easy installation in control panels
  • High switching reliability and long electrical life
  • Complies with international standards for safety and performance
  • Rated current 9A, 3 poles for three-phase applications

Technical Specifications

Version & Model Difference

The NXC-09 is part of the NXC series, which includes various current ratings. This specific model is rated at 9A with a 220VAC coil. Other versions may have different coil voltages (e.g., 24VAC, 110VAC, 380VAC) or higher current ratings. Ensure the correct coil voltage and current rating for your application.

Application Scenarios

  • Motor starting and stopping in industrial machinery
  • Lighting control in commercial buildings
  • Heating, ventilation, and air conditioning (HVAC) systems
  • Power factor correction capacitor switching
  • Automation and process control panels
  • Chint ADP-PL AC220V Panel Mounted LED Indicator Lamp
  • Chint NXB-63 D10 3P Miniature Circuit Breaker (10A, 3P, 6kA)

Frequently Asked Questions

What is the rated current of the Chint NXC-09 contactor?

The Chint NXC-09 has a rated current of 9A, suitable for controlling loads up to 9A in AC-3 duty.

What is the coil voltage of the NXC-09?

This unit uses a 220 V AC coil. The NXC-09 order code does not encode a coil voltage; available coil voltages range from 24 V AC to 415 V AC and must be specified when ordering.

Is the NXC-09 suitable for three-phase motors?

Yes, the NXC-09 is a 3-pole contactor, making it suitable for switching three-phase motors.

Can I use the NXC-09 with a thermal overload relay?

Yes, the NXC-09 can be combined with a compatible thermal overload relay, such as the Chint NR2-25, for motor protection.
