SENSORBES-M12MG-PSC80F-S04GBALLUFF
Balluff Sensor SENSOR,BES M12MG-PSC80F-S04G,BALLUFF
Balluff

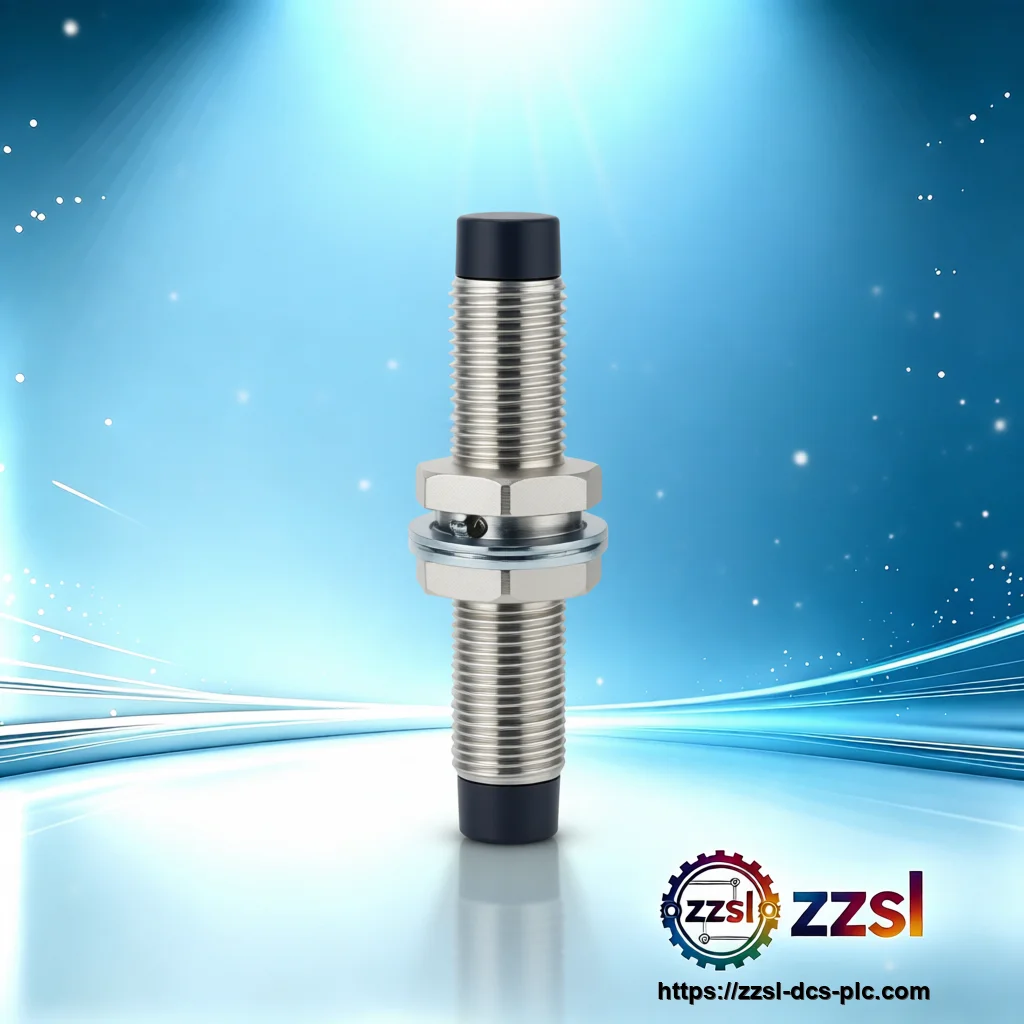

Balluff Sensor SENSOR,BES M12MG-PSC80F-S04G,BALLUFF
Home > Products > Sensors > BALLUFF > BES M12MG-PSC80F-S04G Need Balluff SENSOR,BES M12MG-PSC80F-S04G,BALLUFF? Sensor for Industrial automation, co…
Specifications
| Brand | BALLUFF |
|---|---|
| Model Number | BES M12MG-PSC80F-S04G |
| Official Product Name | SENSOR, BES M12MG-PSC80F-S04G, BALLUFF |
| Applicable System | Industrial automation, control systems, machinery |
| Product Type | Sensor (Inductive Proximity Sensor) |
| Equivalent Standard | BES M12MG-PSC80F-S04G (original); compatible with BES M12 series sensors with similar specifications |
| Product Status | Active |
| Lifecycle note | Active, in production |
| Output Type | PNP Normally Open (NO) |
| Supply Voltage | 10-30 V DC |
| Current Consumption | <= 10 mA (no load) |
| Load Current | <= 200 mA |
| Voltage Drop | <= 2 V at 200 mA |
| Switching Frequency | 800 Hz (1000 Hz per Balluff) |
| Housing Material | Brass, nickel-free coated |
| Connection Type | M12 x 1 connector, 4-pin |
| Protection Rating | IP67 / IP68 |
| Operating Temperature | -25 to +70 degC |
| Storage Temperature | -40 degC to +85 degC |
| Shielding | Shielded (flush mount) |
| LED Indicator | Yes (yellow LED) |
| Certifications | CE, cULus |
| Dimensions | Dia 12 x 60 mm |
| Country of Origin | Hungary (per RS) / Germany |
| Sensing Range | 8 mm (non-flush) |
Product Description
48.88 USD （参考价 / est. market price）
Basic Product Information
- Shielded design for reliable detection in confined spaces
- PNP normally open (NO) output for direct interface with PLCs
- 4-pin connector for quick and secure electrical connection
- IP67 protection rating for harsh industrial environments
- LED indicator for visual status monitoring
- Operating temperature range: -25 degC to +70 degC
- High switching frequency for fast detection cycles
- M12 threaded housing for easy mounting and installation
Technical Specifications
Version & Model Difference
The BES M12MG-PSC80F-S04G is part of the BALLUFF BES M12 series. This model features a PNP NO output and a 4-pin connector. Other versions in the series may have different output types (e.g., NPN, NC), different sensing ranges, or different connector configurations. The 'S04G' suffix indicates the specific electrical configuration and connector type. For applications requiring NPN output or a different connector, refer to other models in the BES M12 series.
Application Scenarios
- Position sensing in automated assembly lines
- Part presence detection in machining centers
- End-of-stroke detection in pneumatic cylinders
- Object counting in packaging machinery
- Door and gate position monitoring in industrial equipment
- Replacement for failed sensors in existing systems
