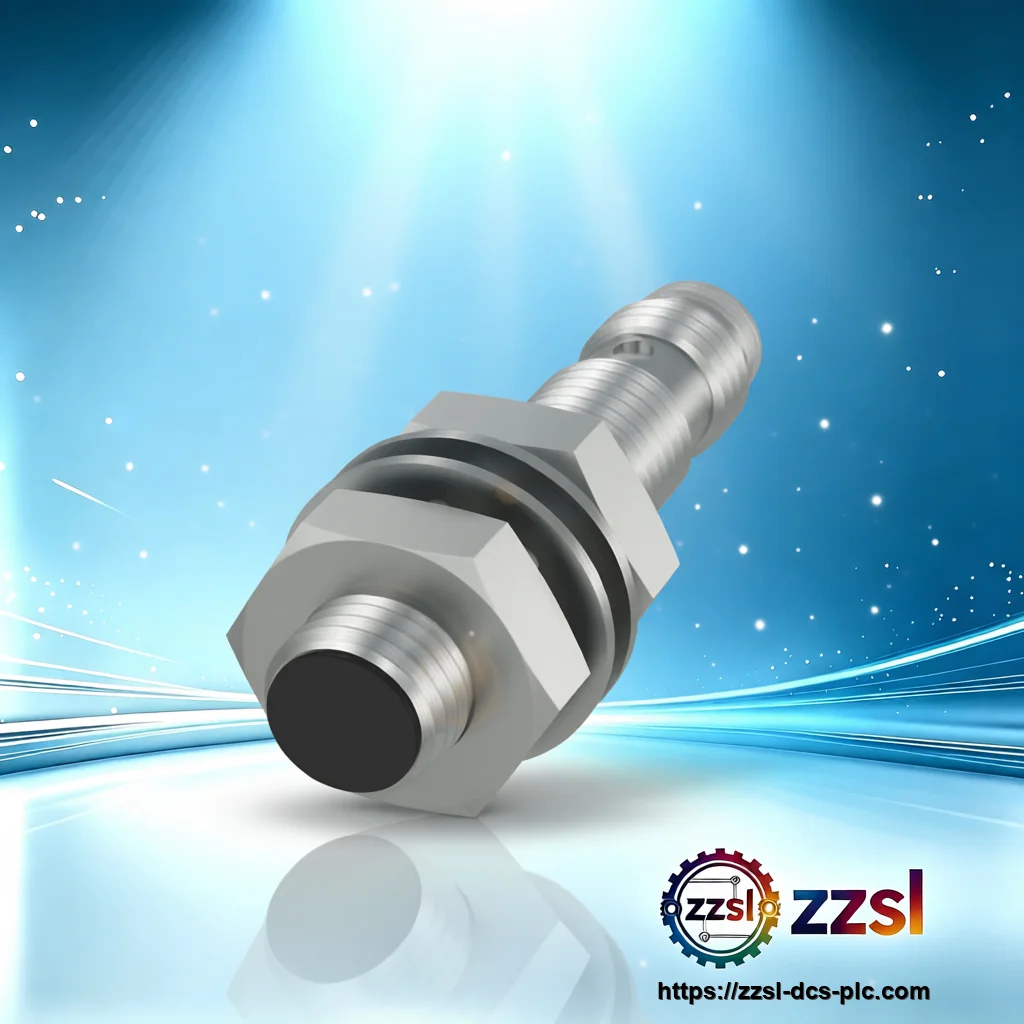

Balluff Sensor SENSOR,BES M08EE-PSC20B-S49G-003,BALLUFF
Home > Products > Sensors > BALLUFF > BES M08EE-PSC20B-S49G-003 Need Balluff SENSOR,BES M08EE-PSC20B-S49G-003,BALLUFF? Sensor for Industrial automa…
Specifications
| Brand | BALLUFF |
|---|---|
| Model Number | BES M08EE-PSC20B-S49G-003 |
| Official Product Name | SENSOR, BES M08EE-PSC20B-S49G-003, BALLUFF |
| Applicable System | Industrial automation, machine building, material handling |
| Product Type | Sensor (Inductive Proximity Sensor) |
| Equivalent Standard | BES M08EE-PSC20B-S49G-003 (original), BES M08EE-PSC20B-S49G-003-01 (variant) |
| Product Status | Active |
| Lifecycle note | Active, in production |
| Output Type | PNP Normally Open (NO) |
| Supply Voltage | 10-30 V DC |
| Current Consumption | <= 10 mA |
| Load Current | <= 200 mA |
| Switching Frequency | 5000 Hz |
| Housing Material | Stainless steel |
| Connection Type | M8 x 1 connector, 3-pin |
| Protection Rating | IP68 |
| Operating Temperature | -40 to +85 degC |
| Storage Temperature | -40 degC to +85 degC |
| Shock Resistance | 30 g, 11 ms |
| Vibration Resistance | 55 Hz, 1 mm |
| Approvals | CE, cULus |
| Dimensions | Dia 8 x 40 mm |
| Country of Origin | China (per RS) / Germany |
| Sensing Range | 2 mm (flush) |
Product Description
68.62 USD （参考价 / est. market price）
Basic Product Information
- Shielded design for flush mounting in metal
- PNP normally open (NO) output for direct connection to PLCs
- 2-meter PVC cable for reliable electrical connection
- IP67 protection rating for dust and water resistance
- LED indicator for visual status monitoring
- Operating temperature range -25 degC to +70 degC
- M8 threaded housing for easy installation in tight spaces
Technical Specifications
Version & Model Difference
The BES M08EE-PSC20B-S49G-003 is part of the BES M08 series. Variations include different sensing ranges (e.g., 1.5 mm, 2 mm, 4 mm), output types (PNP/NPN), connection types (cable, connector), and housing materials (stainless steel, nickel-plated brass). This model specifically features a 2 mm sensing range, PNP NO output, and 2 m cable. For applications requiring a connector, refer to BES M08EE-PSC20B-S49G-003-01 (with M12 connector).
Application Scenarios
- Position detection in automated assembly lines
- Presence detection of metal parts in conveyors
- End-of-stroke sensing in pneumatic cylinders
- Machine tool spindle positioning
- Material handling equipment monitoring
- Packaging machinery part detection
