BES-M12MG-PSC80F-S04G

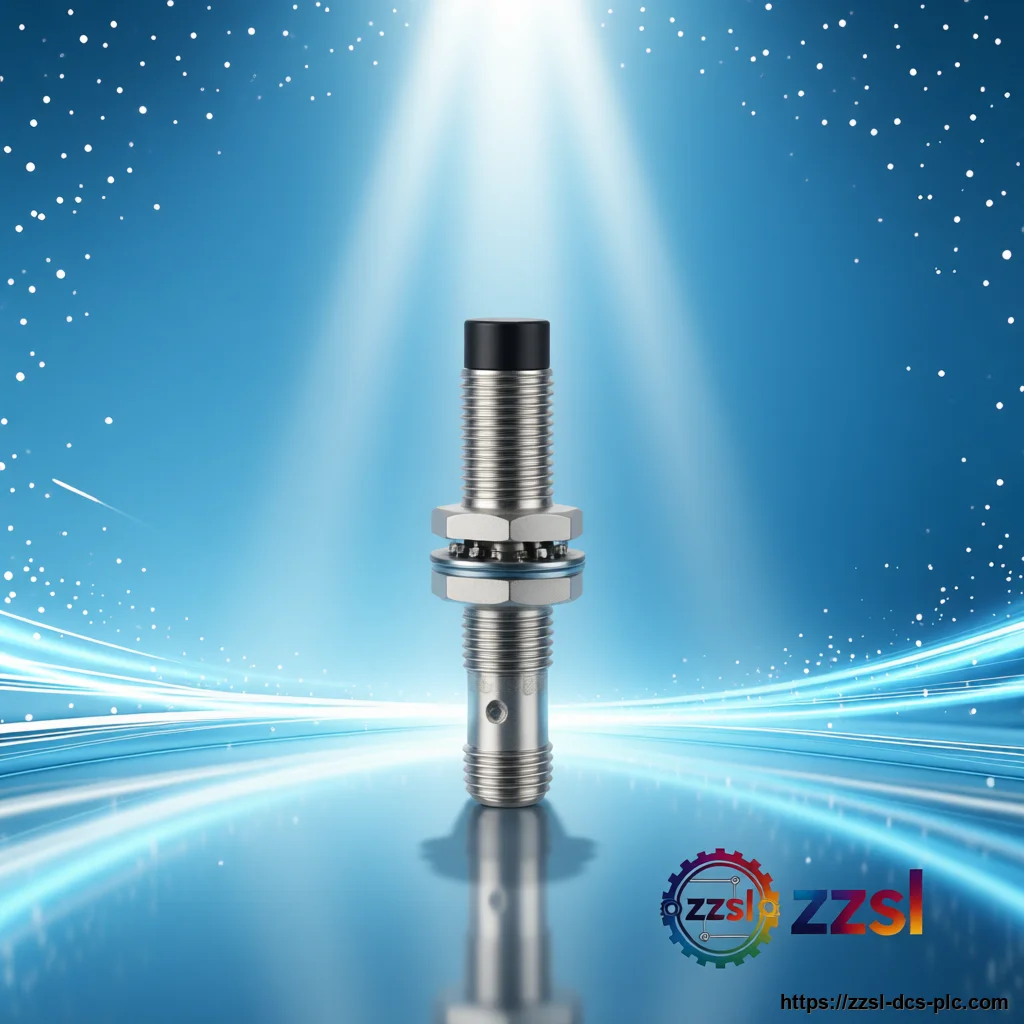

Balluff Inductive Proximity Sensor BES M12MG-PSC80F-S04G
Balluff
Balluff Inductive Proximity Sensor BES M12MG-PSC80F-S04G
Home > Products > Balluff > Inductive Sensors Need Balluff BES M12MG-PSC80F-S04G? Inductive Proximity Sensor for Industrial automation, machine buildi…
Contact us for current availability and best price of BES-M12MG-PSC80F-S04G.
Specifications
| Brand | Balluff |
|---|---|
| Model Number | BES M12MG-PSC80F-S04G |
| Official Product Name | Inductive Proximity Sensor, M12, Shielded, PNP NO, 4mm Sensing Range |
| Applicable System | Industrial automation, machine building, material handling |
| Product Type | Inductive Proximity Sensor |
| Equivalent Standard | IEC 60947-5-2 |
| Product Status | In Stock |
| Mounting Type | Shielded (flush) |
| Sensing Range (Nominal) | 4 mm |
| Output Function | PNP, Normally Open (NO) |
| Supply Voltage | 10-30 V DC |
| Switching Current | ≤ 200 mA |
| Voltage Drop | ≤ 2 V |
| Switching Frequency | ≤ 700 Hz |
| Connection | M12 connector, 4-pin |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Housing Material | Stainless steel (1.4305) |
| Active Face Material | PBT |
| Housing Diameter | M12 |
Product Description
Part of the BES series, this sensor features a M12 threaded housing with a shielded design, ensuring reliable operation in confined spaces. It operates with a nominal sensing range of 4 mm and is flush mountable, making it suitable for applications where space is limited. The sensor is equipped with a PNP normally open output and a 4-pin M12 connector, providing easy integration into existing control systems. This sensor operates at a supply voltage of 10 to 30 V DC and delivers a switching current of up to 200 mA. It is designed to withstand harsh industrial environments, with an IP67 protection rating and a temperature range of -25°C to +70°C. The BES M12MG-PSC80F-S04G is manufactured with high-quality materials, ensuring long-term stability and resistance to vibration and shock. Its compact size and robust construction make it ideal for use in machine tools, conveyor systems, and automated assembly lines. The sensor's electrical output is PNP (sourcing) with a normally open (NO) function, which is commonly used in PLC and relay control circuits. The M12 quick-disconnect connector simplifies wiring and maintenance, reducing downtime. With its precise sensing capabilities and durable design, the Balluff BES M12MG-PSC80F-S04G is a trusted choice for OEMs and system integrators seeking reliable proximity sensing solutions. The Balluff BES M12MG-PSC80F-S04G is a high-performance inductive proximity sensor designed for precise metal detection in industrial automation.
Basic Product Information
- Nominal sensing range 4 mm
- PNP normally open (NO) output
- 4-pin M12 connector for quick installation
- IP67 protection rating for harsh environments
- Wide operating temperature range (-25°C to +70°C)
- M12 threaded housing, shielded (flush mountable)
Technical Specifications
Version & Model Difference
The BES M12MG-PSC80F-S04G is part of Balluff's BES M12 series. Variations include different output types (PNP/NPN), connection styles (cable vs. connector), and sensing ranges (e.g., 2mm, 4mm, 6mm). The 'S04G' suffix indicates a 4mm sensing range with a PNP NO output and M12 connector. Other models like BES M12MG-PSC20F-S04G have a 2mm range, while versions with '-B' may have different connector orientations.
Application Scenarios
