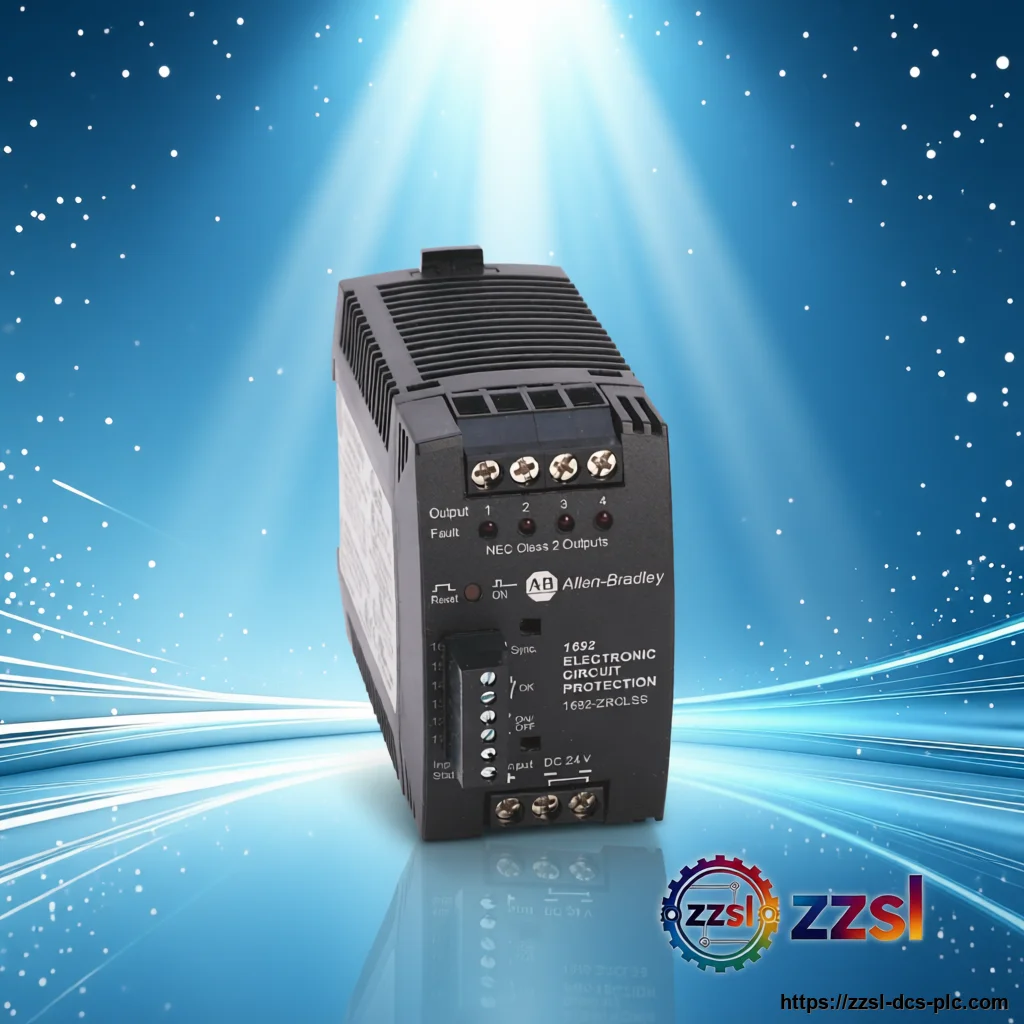

ALLEN BRADLEY Electronic Circuit Protection 1692-ZRCLSS
1692-ZRCLSS
Allen Bradley
ALLEN BRADLEY Electronic Circuit Protection 1692-ZRCLSS
Home > Products > Allen Bradley > Electronic Circuit Protection (ECP) Module ALLEN BRADLEY 1692-ZRCLSS Electronic Circuit Protection Module. For 24 V …
Specifications
| Brand | Allen Bradley |
|---|---|
| Model Number | 1692-ZRCLSS |
| Official Product Name | Electronic Circuit Protection Module |
| Applicable System | 24 V DC control and load circuits; NEC Class 2 protection |
| Product Type | Electronic Circuit Protection (ECP) Module |
| Equivalent Standard | Bulletin 1692-ZR / ZG series ECP modules |
| Product Status | Active (Rockwell lifecycle status: Active) |
| Protected circuits | 4 x NEC Class 2 circuits |
| Connection | Screw terminals |
| Dimensions | 45 x 75 x 91 mm (approx.) |
| Weight | approx. 120 g |
| Standards | CE, EMC directive, Low Voltage directive |
| Module voltage | 24 V DC |
Product Description
ALLEN BRADLEY 1692-ZRCLSS Electronic Circuit Protection Module. For 24 V DC control and load circuits; NEC Class 2 protection. Worldwide shipping from stock.
It protects up to four NEC Class 2 circuits with module-level protection, reducing wiring and improving panel diagnostics for machine control applications. The Allen Bradley 1692-ZRCLSS is a Bulletin 1692 Electronic Circuit Protection module for 24 V DC systems.
Basic Product Information
- Protects up to four independent NEC Class 2 output circuits
- Screw terminal wiring, compact block-style enclosure
- CE marked, EMC compliant (EN 61000-6-1/2/4, EN 55011 Class A)
- 24 V DC module voltage with module protection and Class 2 circuit rating
Technical Specifications
Version & Model Difference
- Variant and suffix data for 1692-ZRCLSS is not published in public manufacturer documentation. Configurations are matched from the complete order code at quotation stage.
Application Scenarios
- 24 V DC load and circuit protection
- Machine control panels
- Industrial automation wiring
- Allen Bradley 1734-OB8E - POINT I/O 8-Point Digital DC Output Module
- Allen Bradley 1734-FPD - POINT I/O Field Power Distributor Module
- Allen Bradley 1734-AENT - POINT I/O EtherNet/IP Adapter Module
- Allen Bradley 1769-PB2 - CompactLogix 24 V DC Power Supply
- Allen-Bradley MSR127TP Guardmaster Safety Relay
Frequently Asked Questions
What is the Allen Bradley 1692-ZRCLSS?
The 1692-ZRCLSS is a Electronic Circuit Protection Module (Electronic Circuit Protection (ECP) Module) used in industrial automation. It is supplied as a genuine Allen Bradley spare part; verify the exact configuration with the manufacturer datasheet or our team.
What are the main specifications of 1692-ZRCLSS?
The verified parameters for 1692-ZRCLSS are: Module voltage: 24 V DC; Protected circuits: 4 x NEC Class 2 circuits; Connection: Screw terminals; Dimensions: 45 x 75 x 91 mm (approx.); Weight: approx. 120 g; Standards: CE, EMC directive, Low Voltage directive.
Is 1692-ZRCLSS compatible with my system?
Compatibility depends on your controller, voltage, and mounting. See the Compatible Products and Application Scenarios sections, and confirm with our engineers for your exact setup.
What about warranty and availability of 1692-ZRCLSS?
Genuine Allen Bradley product with standard manufacturer warranty where applicable. Lead time and MOQ vary; request a quote for current stock, price, and delivery.
