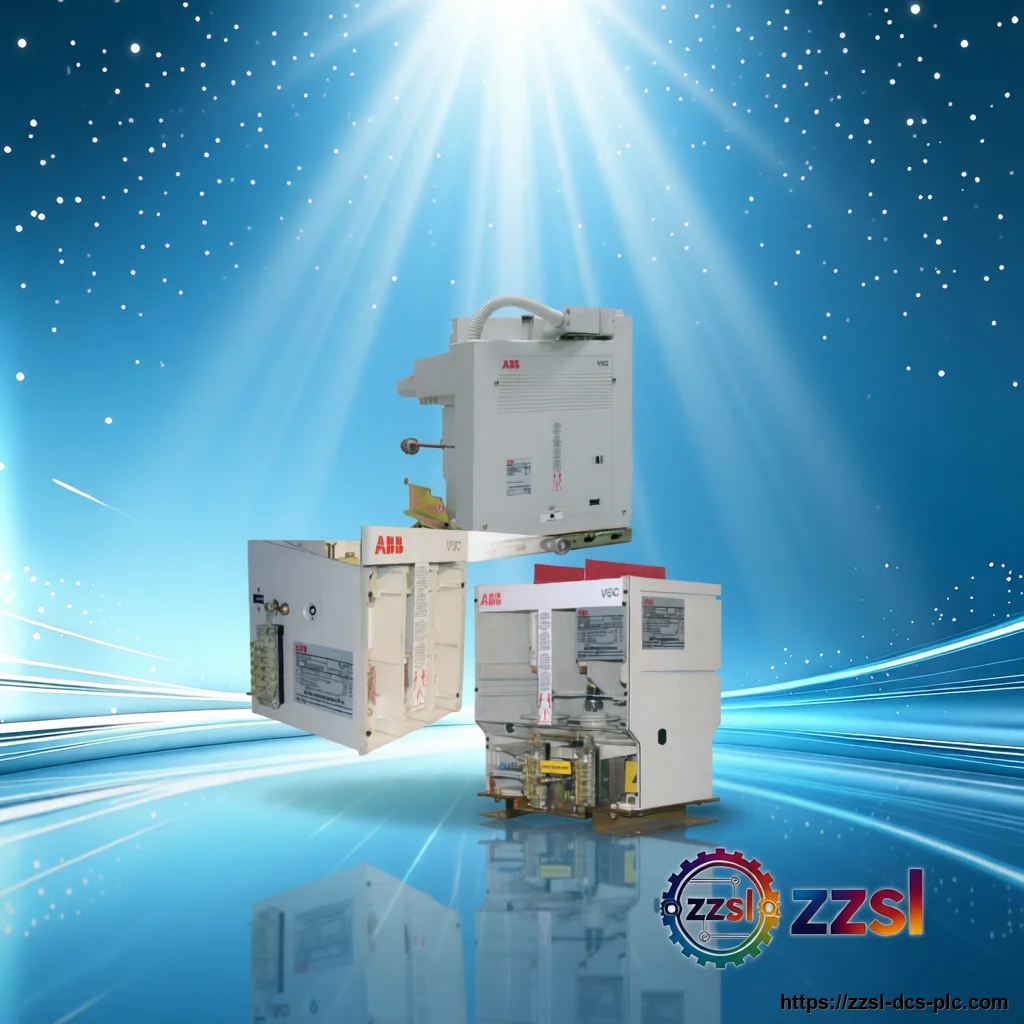

ABB Vacuum contactor VSC12/P 1VSC1VCD400086
ABB
ABB Vacuum contactor VSC12/P 1VSC1VCD400086
Home / Medium Voltage / Vacuum Contactors / ABB VSC12/P Need ABB VSC12/P 1VSC1VCD400086? Vacuum contactor for 12 kV MV switching for motors, capacitors and rea…
Specifications
| Brand | ABB |
|---|---|
| Model Number | VSC12/P 1VSC1VCD400086 |
| Official Product Name | Medium-voltage vacuum contactor VSC12/P |
| Applicable System | 12 kV MV switching for motors, capacitors and reactors |
| Product Type | Vacuum contactor |
| Equivalent Standard | IEC 62271-106 (MV contactors) |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Rated current | 400 A |
| Technology | Vacuum interrupter |
| Net weight | approx. 45 kg (incl. fuse variant; confirm exact variant) |
| Rated making / breaking capacity | Contact supplier for exact specifications |
| Control voltage | Contact supplier for exact specifications |
| Rated voltage | 12 kV |
Product Description
Basic Product Information
- 400 A rated current for motor and capacitor duty
- Long electrical life of vacuum interrupter technology
- Compact design for integration in MV switchgear
- 12 kV rated medium-voltage vacuum switching
Technical Specifications
Version & Model Difference
- ['VSC12/P is the 12 kV vacuum contactor platform', 'Fuse-combination variants change weight and short-circuit rating', 'Higher-current VSC families exist for larger duties']
Application Scenarios
- Medium-voltage motor starting and control
- Capacitor bank and reactor switching
- Industrial and utility MV distribution
