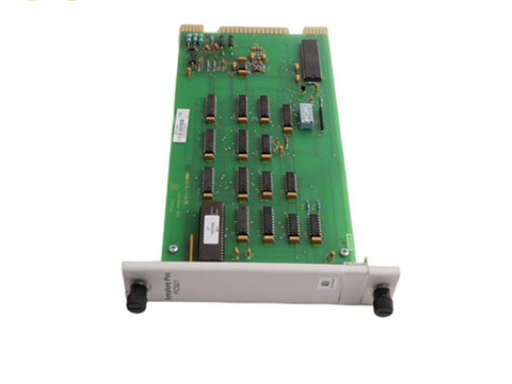

ABB SPFCS01 Frequency Counter Module

ABB SPFCS01 Symphony Plus / Harmony Rack Frequency Counter Module (ABB Bailey HR Series Turbine I/O Module)ABB Group Official Function Description This is a dedicated dual-channel frequency measurement I/O card designed exclusively for ABB Harmony rack-based Symphony Plus DCS turbine control systems. It provides high-precision turbine rotational speed monitoring via two independent pulse input channels, supporting signal frequencies from 3 kHz to 12.5 kHz. The module processes pulse signals from magnetic pickups, turbine speed sensors and encoders, converts raw frequency data into engineering values (RPM, Hz, flow velocity), and transmits processed real-time speed data to the DCS controller. Built-in continuous self-diagnostics detect signal loss, over-range frequency inputs and internal c
