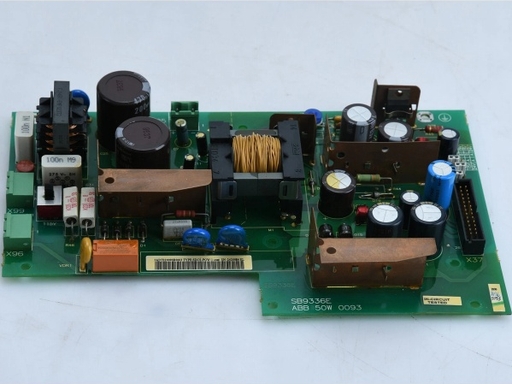

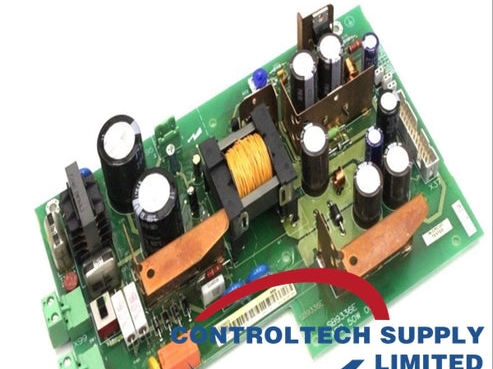

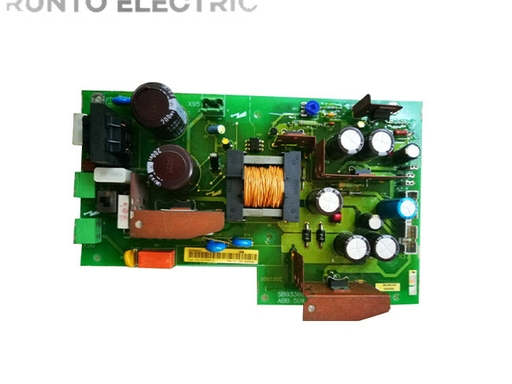

ABB SDCS-POW-1C Isolated Switch-Mode Control Circuit Power Supply Board (DCS500 / DCS600 DC Drive Series)
ABB SDCS-POW-1C Isolated Switch-Mode Control Circuit Power Supply Board (DCS500 / DCS600 DC Drive Series) Alternate factory part ID: 10012279 Core Function Core Function This dedicated power board is the primary internal power source for ABB DCS500 and DCS600 series DC thyristor converters. It converts single-phase mains AC input into multiple isolated, regulated low-voltage DC rails to power all drive internal electronics: main control board (SDCS-CON), signal interface boards, encoder feedback circuits, digital/analog I/O modules, and field excitation control logic. Delivers multi-channel galvanically isolated DC outputs to avoid signal noise cross-interference Integrates soft-start mains input circuit to suppress large inrush current at power-up Embeds full hardware protection logic (ov
Product Description
ABB SDCS-POW-1C Isolated Switch-Mode Control Circuit Power Supply Board (DCS500 / DCS600 DC Drive Series) Alternate factory part ID: 10012279 Core Function Core Function This dedicated power board is the primary internal power source for ABB DCS500 and DCS600 series DC thyristor converters. It converts single-phase mains AC input into multiple isolated, regulated low-voltage DC rails to power all drive internal electronics: main control board (SDCS-CON), signal interface boards, encoder feedback circuits, digital/analog I/O modules, and field excitation control logic. Delivers multi-channel galvanically isolated DC outputs to avoid signal noise cross-interference Integrates soft-start mains input circuit to suppress large inrush current at power-up Embeds full hardware protection logic (ov
Technical Specifications
| Brand | ABB |
|---|---|
| Model | SDCS-POW-1C |
| Category | Industrial Automation |
| Net Weight | 0.4 kg (0.88 lbs) |
| Mounting | Direct plug-in installation onto the DCS500/DCS600 internal electronic support tray, no extra mounting brackets required |
| Origin | Germany / Original |
| Condition | New Original Factory Sealed |
| Warranty | 12 Months |
| Shipping | Global Delivery via DHL/FedEx/UPS |
