CAL5X-11

Product Description

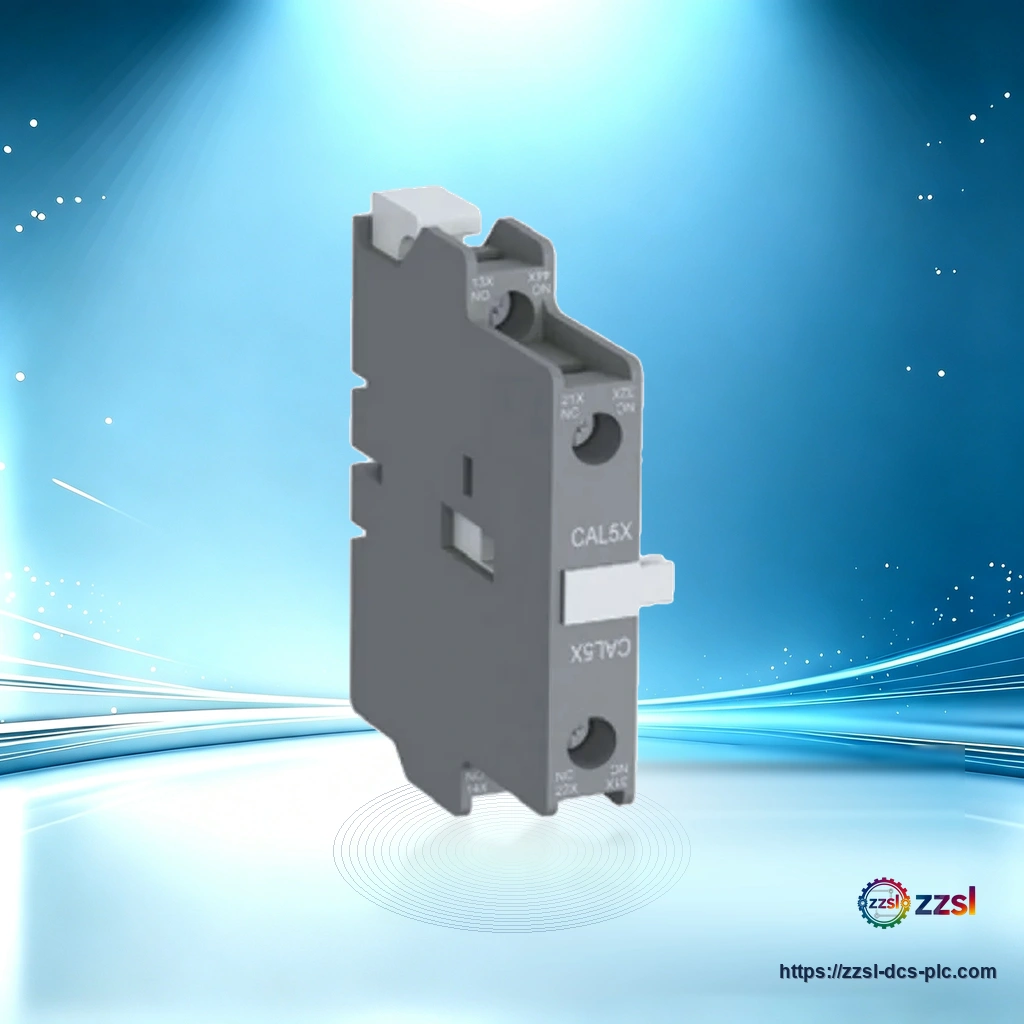

Home / Low Voltage / Contactors / ABB CAL5X-11 Need ABB CAL5X-11? Auxiliary contact block for Motor control and low-voltage switching panels. Supplied with full traceability and documentation. Request a... Price & Availability Classified as an auxiliary contact block, it is positioned as a direct replacement and service part for existing installations. It is intended for use within Motor control and low-voltage switching panels, where dependable operation and a precise fit are essential to keeping the plant running. Listed as Active, it is offered as a maintained and verified spare that supports the continued operation of the installed base. Key technical specifications include: The Product type is Auxiliary contact block, side mounted. Its Number of contacts is rated at 1NO + 1NC (per ABB / RS datasheet; queue lists 2NO+2NC variant). For reference, the Rated insulation voltage Ui is 690 V. The Mounting position is Side of AX contactor. Its Standards is rated at IEC 60947-5-1. For reference, the Dimensions (W x H x D) is 12 mm x 74 mm x 60 mm. The Weight is approx. 0.05 kg (0.12 kg packaged). Notable features of this unit: Side-mounted design that clips directly onto compatible AX contactors. Rated insulation voltage 690 V for demanding industrial circuits. Compact footprint for space-saving panel layouts. Typical applications include Motor control starters and control circuits, Industrial automation and assembly lines. It is compatible with or cross-references ABB AX09 to AX80 series contactors, ABB NX series contactor relays. Equivalent / cross-reference designation: IEC 60947-5-1. Within industrial automation and process-control environments, components of this type are relied upon to keep critical equipment operating safely and efficiently. They are typically specified where uptime, repeatability and a predictable maintenance cycle matter more than upfront cost. A auxiliary contact block such as this one forms part of a larger machine or system, so correct identification and fitment directly affect the performance and safety of the whole installation. ABB parts are widely used across power generation, manufacturing, oil and gas, water and process industries, where engineering teams standardise on proven series to simplify spares planning. When selecting a replacement, confirm the exact model designation and verify that the mechanical and electrical interface matches the unit currently installed. Cross-checking the order code, mounting style and connection type against the existing device helps avoid compatibility issues and unplanned downtime during a maintenance window. Where several variants exist, the suffix often defines voltage, range or firmware, so it should be matched precisely rather than approximated. This item is offered from our active stock of current and discontinued industrial parts. Each listing is verified against the manufacturer designation before shipment so you receive the correct part for your application. Availability and lead time vary by item; our team can confirm the fastest option for your required quantity and provide a formal quotation on request. Common questions: Regarding "What contactors is the CAL5X-11 compatible with": It is a side-mounted auxiliary contact block for the ABB AX series contactors (AX09, AX12, AX25, AX32, AX40, AX50, AX65, AX80 and similar). Regarding "What is the rated insulation voltage": The CAL5X-11 has a rated insulation voltage Ui of 690 V according to IEC 60947-5-1. Please contact us to confirm current pricing, availability and delivery for your required quantity; volume and project pricing are available on request. The ABB CAL5X-11 is an auxiliary contact block. Basic Product Information Screw terminal connection for secure wiring Rated insulation voltage 690 V for demanding industrial circuits Compact footprint for space-saving panel layouts Side-mounted design that clips directly onto compatible AX contactors Technical Specifications Version & Model Difference ['CAL5-11 base variant provides 1NO+1NC auxiliary contacts', 'CAL5X-11 is the side-mount version for AX contactors', 'Higher-current AX models use CAL18X / CAL19 auxiliary blocks'] Application Scenarios Motor control starters and control circuits Industrial automation and assembly lines Low-voltage distribution and signalling panels What is the rated insulation voltage? The CAL5X-11 has a rated insulation voltage Ui of 690 V according to IEC 60947-5-1. How many contacts does it provide? Manufacturer sources list 1NO + 1NC; certain catalogue listings describe a 2NO+2NC variant, so confirm the exact configuration with the supplier. Is a separate wiring terminal type required? No, it uses standard screw terminals and clips directly onto the contactor, requiring no extra mounting hardware. What contactors is the CAL5X-11 compatible with? It is a side-mounted auxiliary contact block for the ABB AX series contactors (AX09, AX12, AX25, AX32, AX40, AX50, AX65, AX80 and similar). ABB UNS 0017A-P Firing Board (SCR Trigger) for UNITROL 5000/6000 Excitation ABB KS D211B Input Coupling Unit ABB M35 Thyristor Packet UNS4017A-E Var. 633 (Thyristor Module VO2) ABB 3ADT220090R0006 SDCS-PIN-51-COAT Converter [A01] ABB PS 1500V 125A PRE+MC Fuse Disconnector ABB FSCA-01 Modbus-RTU FIG Module (3BHE030136R0001) ABB CCM 6080 UC D240 (3BHE022287R0001) Controller Card ABB CP-S.1 24/5.0 Power Supply (1SVR320561R1000)
