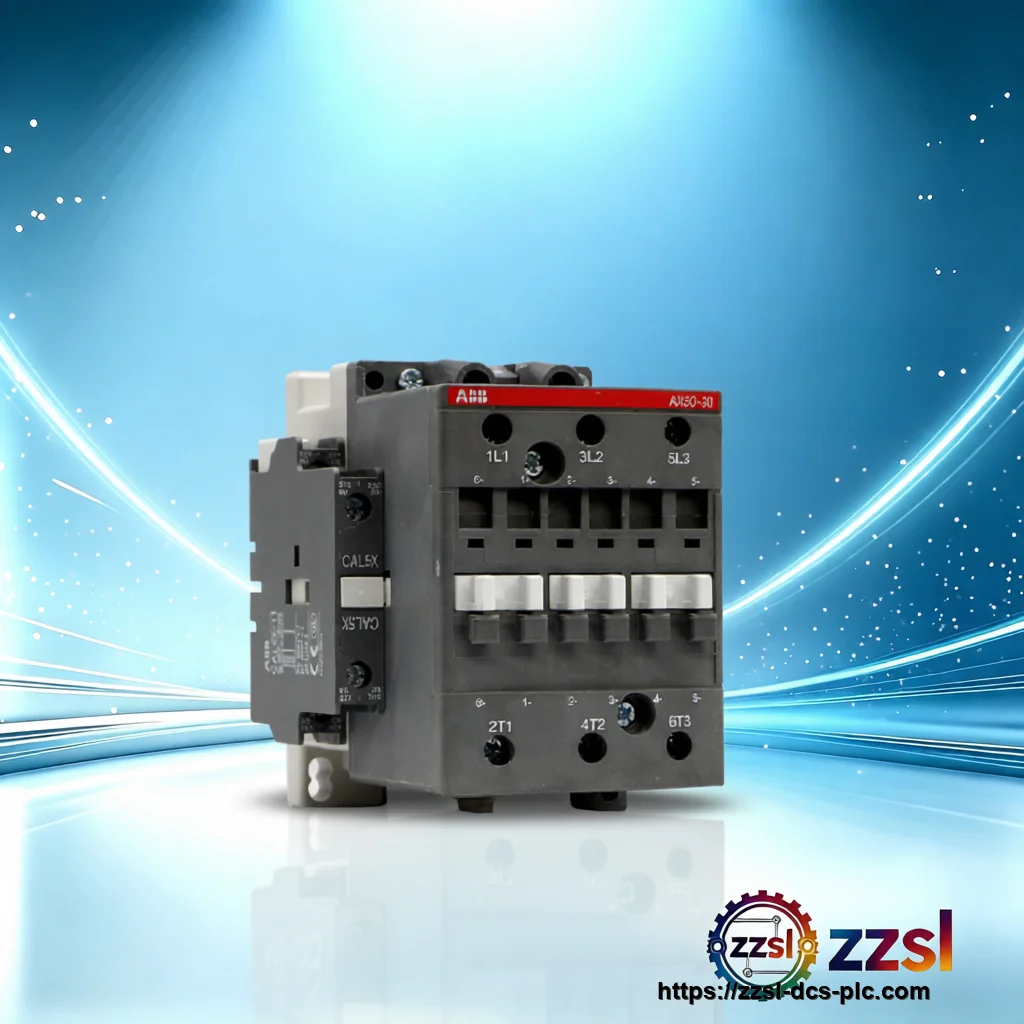

ABB AC power contactor AX50-30
Home / Low Voltage / Contactors / ABB AX50-30 Need ABB AX50-30? AC power contactor for Three-phase motor and power circuit control. Supplied with full traceabi…
Specifications
| Brand | ABB |
|---|---|
| Model Number | AX50-30 |
| Official Product Name | Magnetic contactor AX50-30 |
| Applicable System | Three-phase motor and power circuit control |
| Product Type | AC power contactor |
| Equivalent Standard | IEC 60947-4-1 |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Control coil voltage | 230 V AC, 50/60 Hz |
| Rated operational current AC-3 | 50 A (at 400 V) |
| Rated operational power AC-3 | 22 kW (at 400 V) |
| Rated insulation voltage Ui | 690 V |
| Conventional free-air thermal current Ith | 100 A |
| Terminal type | Screw terminals |
| Net weight | approx. 1.05 - 1.16 kg |
| Poles | 3 (main, NO) |
Product Description
Basic Product Information
- AC-operated coil at 230 V 50/60 Hz
- Wide range of accessories and auxiliary contacts
- High mechanical durability for frequent switching
- Block-type 3-pole design for compact panel mounting
Technical Specifications
Version & Model Difference
- ['AX50-30-00 = no built-in auxiliary contacts', 'AX50-30-11 = 1NO + 1NC built-in auxiliary contacts', 'Different coil voltage suffixes denote 220-230V / 230-240V variants']
Application Scenarios
- Three-phase motor starting and control
- Power switching in low-voltage distribution
- Industrial automation and HVAC systems
